Parker 针阀
Parker Needle Valves

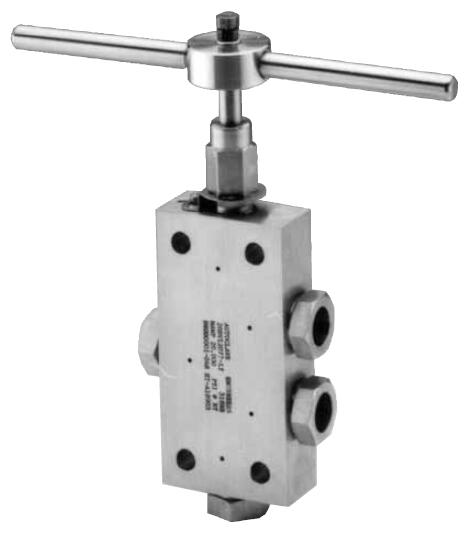

针型阀，20DV系列分配阀 Needle Valve, Diverter 20DV Series - 20,000 PSI

派克Autoclave的20DV系列分流阀经专门设计，可在高达20,000 psi（1379 bar）的压力下安全可靠地运行。这种紧凑型阀用于将流量从一个入口转移到两个出口，从而允许改变流向和/或混合过程。Parker Autoclave's 20DV Series diverter valves are built to operate safely and reliably up to 20,000 psi (1379 bar). This compact valve is used to divert flow from one inlet to two outlets permitting flow direction change and/or mixing of processes.

Parker Autoclave的20DV系列分流针型阀设计有不旋转的上升杆阀，工作压力达20,000 psi（1379 bar）。该分流阀使用的Parker高压釜管的尺寸从9/16“”到1“”。分流阀可将进入的流量引导至两个出口之一。通过向内或向外旋转手柄来改变流量，从而导致双头杆堵塞了不需要的出口流路。Parker Autoclave's 20DV Series diverter needle valves are designed with a non-rotating rising stem valve, with working pressures to 20,000 psi (1379 bar). This diverter valve uses the Parker Autoclave tubing in sizes ranging from 9/16"" to 1"". Diverter valves provide the ability to direct incoming flow to one of two outlets. Flow is changed by rotating the handle in or out causing a double-ended stem to block the flow path to the outlet not needed.

分流阀消除了对多个阀的需求，并且消除了流向变化的可能性。20DV系列使用Parker Autoclave Engineers的中压接口。锥形和螺纹连接提供了可靠的气密密封，可在各种应用中提供可靠的性能。Diverter valves eliminate the need for multiple valves and the possibility of error in flow direction changes. The 20DV series uses Parker Autoclave Engineers' medium pressure connection. This coned and threaded connection provides a reliable bubble-tight seal for dependable performance in a variety of applications.

针型阀，20DV系列分配阀 Needle Valve, Diverter 20DV Series - 20,000 PSI

派克 Autoclave 的 20DV 系列的分配阀在压力 20,000 psi(1379 bar)条件下安全可靠的运行.这款阀门的实际是可以使流体从一个入口流入，分配到两个出口，允许介质直接改变方向或者混合的过程.

派克 Autoclave 的 20DV 系列换向阀可安全稳定地运行于20,000 psi（1379 bar）.该阀将流量从一个入口转向两个出口，允许流向改变和/或过程混合.分流阀采用锥形螺纹连接设计，为气体和液体服务提供了一种密封稳定的连接.

市场Markets:

- Oil and Gas
- Petrochemical
- Chemical
- Research Facilities
-石化
-化学
-研究设施的

特点/优势Features/Benefits:

- Diverts incoming flow to one of two outlet lines.
- Tubing sizes from 9/16” to 1”.
- Rising stem/barstock body design.
- Non-rotating stem prevents stem/seat galling. Valves
- Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- PTFE encapsulated packing provides dependable stem and body sealing.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
-将进入的流量转移到两个出口管线之一。
-油管尺寸从9/16”到1”。
-阀杆/棒状阀体的上升设计。
-不可旋转的阀杆可防止阀杆/阀座磨损。阀门
-金属对金属阀座可实现气密性关闭，在磨料流中具有更长的阀杆/阀座寿命，在重复的开/关循环中具有更高的耐久性，并具有出色的耐腐蚀性。
-PTFE密封填料提供可靠的阀杆和阀体密封。
-选择了茎套和填料压盖材料，以延长螺纹循环寿命并降低手柄扭矩。

应用Applications:

- High Pressure Process Panels
- Mixing Systems
- High Pressure Fluid Handling Systems
-高压工艺面板
-混合系统
-高压流体处理系统

Technical Specifications

Needle Valve, Diverter 20DV Series - 20,000 PSI 型号
