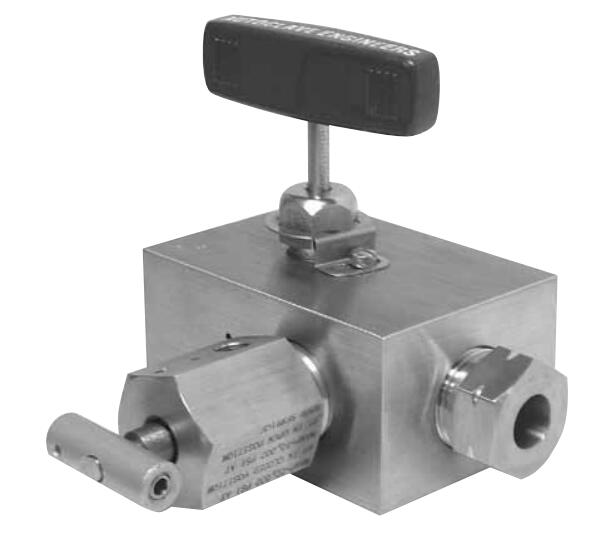

井口泄放仪表阀 Wellhead Bleed and Gauge Valve, 30,000 PSI

派克Autoclave BV 系列井口泄放仪表阀用于仪器仪表的校正或取样。BV系列阀门标准材料为316不锈钢，工作压力可达30,000 PSI.阀门符合NACE MR0175标准。 Parker Autoclave's BV Series wellhead bleed and gauge valves are ideal for instrumentation calibration or sampling. The BV Series is standard in 316 stainless steel material and will perform up to 30,000 PSI. These valves comply with NACE MR0175

派克Autoclave的 BV和GV系列排放仪表阀采用不旋转提升阀杆设计, 工作压力可达30,000 psi (2068 bar)。尺寸有 3/8" 和 9/16" 配合parker Autocalve 仪表管使用。阀门材质为316不锈钢，其他材料可选。基于其诸多特点，BV和BG系列阀门可实现稳定无故障的运行，广泛应用于多种应用场合。 Parker Autoclave's BV and GV Series bleed and gauge valves are a non-rotating rising stem design, working pressures to 30,000 psi (2068 bar). Tubing sizes are 3/8" and 9/16" and are designed to utilize the parker Autoclave Tubing. These valves are 316 stainless steel construction with other options available. Along with their many features these valves provide dependable and trouble free service in wide variety of applications.

派克Autoclave井口仪表阀用于仪表校正和过程取样。主要用于石油和天然气的钻探及开采, 同样适用于其他应用场合。其标准元件用于不含H2S硫化氢的场合，当存在H2S硫化氢时，需选用 "SOG"类型。派克Autoclave SOG元件接口为API仪表接口 (派克Autoclave F562C). Parker Autoclave Engineers wellhead gauge valves are ideal for instrument calibration and process sampling. The main applications are found in oil and gas drilling, and production, but other markets use these as well. Standard components are offered for normal field service where H2S is not present and type "SOG" for service where H2S is present. Parker Autoclave Engineers type SOG components are available with standard API test and gauge connection (Parker Autoclave Engineers F562C).

井口泄放仪表阀 Wellhead Bleed and Gauge Valve, 30,000 PSI

市场Markets:

- Oil and Gas
- Petrochemical
- Chemical
- 石油和天然气
- 石化
- 化工

特点/优势Features/Benefits:

- Tubing sizes are 3/8" and 9/16"
- One inlet and three outlet ports, all 9/16" ports are API test and gauge connection ports
- Non-rotating stem design prevents stem/seat galling
- Metal-to-metal seating for bubble-tight shut-off
- Bleed valve is one piece hex construction allowing easy installation
- Anti-blowout stem design
- 接口尺寸：3/8" 和 9/16"
- 阀门接口为API仪表接口，一个进口，三个出接口，尺寸均为 9/16"
- 不旋转式阀杆，有效减少阀杆/阀座的磨损。
- 金属对金属阀座，使阀门拥有优良的气密性
- 排放阀为一片式结构，易于安装
- 防吹出阀杆

应用Applications:

- Process Sampling
- Instrument Calibration
- High Pressure Skid Panels
- 过程取样
- 仪表校正
- 高压防滑带

Technical Specifications

Wellhead Bleed and Gauge Valve, 30,000 PSI 型号
