Parker 针阀
Parker Needle Valves

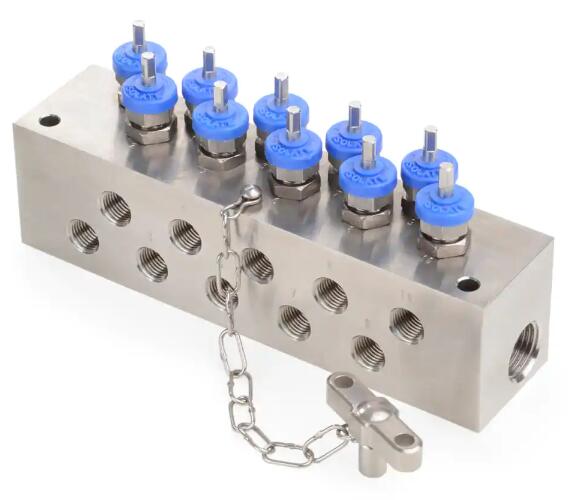

H系列气源分配阀组 6,000 PSI Distribution Manifold - H Series

派克 H 系列气源分配阀组提供5种或10种针阀为PTFE填料的金属阀座。‘H’ 系列手动安装，可轻松完成操作及实现完全气密行关闭。Parker's H-Series distribution manifold unit offers choice of 5 or 10 metal seated needle valves with PTFE gland packing, ‘H' series head assemblies for easy operation and positive bubble tight shut off.

H系列分装阀组提供紧凑的阀体可以接受客户定制集成5或10个针阀-压力可达6000 PSI(414 Bar).用户还可指定多种结构选项，包括增加一个入口单向阀。两阀组连接为标准选项（两端尺寸相同）。一个用户可作为入口，另一端可封堵，或连接一个阀门方便清洗。如需吹扫阀。在询价时说明。派克可在入口端连接一个单向阀作为主隔离阀，让用户的出口阀与供应端隔离。此类需求需在报价时详细说明阀门种类。这些附加阀门的需求会在报价时创建产品型号H Series Distribution manifold valve provides a compact manifold body that accepts a user-defined choice of five or 10 metal-seated needle valves - rated for pressures up to 6000 PSI (414 Bar). Users can also specify numerous build options including the addition of a single isolate valve connected to the inlet. As standard, 2 connections (one at each end of common size) will be provided. One of these will be utilised by the user as an inlet, the other can be either blanked off or fitted with a valve to facilitate purging. Should a purge valve be required then the style should be clearly stated at enquiry stage. Parker can connect a single isolate valve to the inlet to act as a primary isolate valve allowing the user to totally isolate all the outlet valves from the supply point. Such a requirement must be stated at enquiry stage, the valve style should be clearly specified. These additional valve requirements will be structured into the part number at quotation stage.

H系列气源分配阀组 6,000 PSI Distribution Manifold - H Series

市场Markets:

- Oil and Gas Offshore
- Oil and Gas Onshore
- Petrochemical
- Chemical
- 油气行业
- 海上钻井平台
- 石化行业
- 化工业

特点/优势Features/Benefits:

- Globe style needle valve metal/metal seat with retained operating key
- 5 or 10 valves (between 5 & 10 will be supplied as 10 way - redundant outlets can be plugged by user)
- 球形阀金属/金属阀座可保留
- 5或10个接口(在5&10之间，会采用10个接口 - 多余接口用户可堵上)

应用Applications:

- Distribution and control of low pressure instrument air or plant air
- High pressure instrument or hydraulic lines
- 分配及控制低压仪表气体及压缩空气
- 高压仪表及液压管线

Technical Specifications

6,000 PSI Distribution Manifold - H Series 型号
