Parker 针阀
Parker Needle Valves

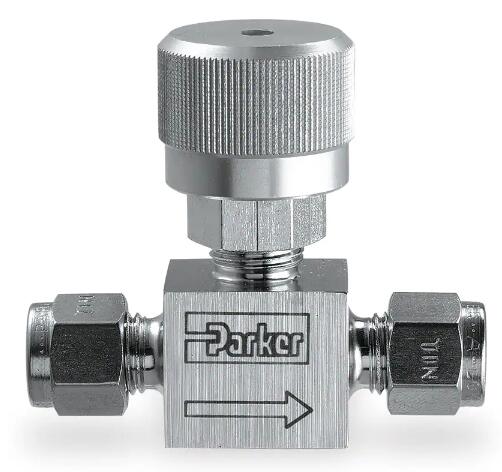

SN6系列针阀 Needle Valve,Integral Bonnet 6000 PSI - SN6 Series

派克 SN6 系列针阀为紧凑型，整体阀盖开关，使液体及气体粗调至6,000 PSI(414 BAR). Parker's SN6 Series needle valves are compact, integral bonnet valves for shut-off and coarse regulation of liquids and gases up to 6,000 PSI (414 BAR).

派克的 SN6 系列针阀提供切断及对流量和气体压力调节功能，压力为6,000 PSI(414 BAR).这种紧实坚固的阀体采用316不锈钢结构，整体阀盖及阀杆螺纹上端填料设计。SN6 阀门提供安装环境在350°F下采用PTFE密封或温度700°F下使用石墨密封的同时，仍能采用紧凑型设计。其他类似阀门无法提供此种灵活的安装方式。 Parker's SN6 Series Needle Valves provide shut-off and coarse regulation of liquids and gases up to 6,000 PSI (414 BAR). These compact, rugged valves are manufactured from 316 stainless steel bar stock and are integral bonnet designs with packing above the stem threads. The SN6 valve offers the installer the ability to place this valve in environments from 350?F with PTFE or up to critical environments up to 700?F with Grafoil packing while still in the same small, compact design. Other similar valves do not offer that application flexibility.

SN6系列针阀 Needle Valve,Integral Bonnet 6000 PSI - SN6 Series

市场Markets:

- Petrochemical
- Chemical
- General Industry
- Power
- 石化行业
- 化工业
- 通用工业
- 电力行业

特点/优势Features/Benefits:

- Integral bonnet design
- 316 stainless steel construction
- Choice of two stem types:
R-Stem – All metal, blunt stem tip
K-Stem – PCTFE stem tip
- Choice of PTFE or Grafoil packing
- Inline and angle patterns
- 100% factory tested
- 整体阀盖设计
- 316不锈钢结构
- 两种阀杆形式:
R-Stem – 全金属，钝型阀尖
K-Stem – PCTFE阀尖
- PTFE和石墨填料可选
- 直通型和角型
- 每个产品都经过 出厂测试

应用Applications:

- Sample Cylinders
- Control Panels
- 取样钢瓶
- 控制面板

Technical Specifications

Needle Valve,Integral Bonnet 6000 PSI - SN6 Series 型号
