Parker 球阀
Parker Ball Valves
高压球阀系列Ball Valves High Pressure Series

这些阀门适用于压力高达300 bar的应用These valves are suitable for applications with pressures up to 300 bar.
高性能材料和制造质量具有很宽范围的操作压力和温度High performance materials and quality manufacturing allow for a wide range of operating pressures and temperatures.





这些阀门适用于压力高达300 bar的应用。These valves are suitable for applications with pressures up to 300 bar.

高性能材料和质量允许应用于更宽范围的操作压力和温度。High performance materials and quality manufacturing allow for a wide range of operating pressures and temperatures.

特点/优势Features/Benefits:

- 高压&安全High Pressure & Safety

- Good sealing at low and high pressure
- Robust design with secure, non-removable inlet and outlet ports
- Forged brass providing excellent long-term strength under severe conditions of use
- 100% leak-tested in production
- Date coding to guarantee quality and traceability
- 在低压或高压时都与良好密封性能
- 坚固耐用,具有安全性,不可拆卸的入口及出口。
- 锻造黄铜材质在苛刻的条件下使用,也会具有长期的使用寿命
- 在生产阶段,进行完整泄漏检测
- 日期代码提供良好的质量和可追溯性

- 易于安装和使用Easy-to-Use

- Fixing screws for through-bulkhead mounting
- The lever may be repositioned or replaced with a handwheel
- Low operating torque
- 配有固定螺栓,可进行穿板安装
- 手柄可重新定位,或用手轮替换
- 低操作扭矩



市场Markets:

- Vehicle Assembly Facilities
- Primary Metal Refining and Processing
- Wearing Apparel
- Power Generation Equipment
- 车辆装备生产线
- 初级金属精炼或加工
- 纺织
- 发电设备



应用Applications:

- Allow/Stop Compressed Air Circulation for High Pressure Applications
- Suitable for Vacuum Applications
- Deep-Sea Diving
- 允许/停止高压应用中压缩空气循环
- 适于真空应用
- 深海潜水



技术Technologies:

- Industrial valve
- High pressure valve
- High pressure ball valve
- Pressure regulator valve
- High pressure equipment
- Regulating valve
- Pneumatic ball valve
- Pneumatic valve
- 工业阀门
- 高压阀门
- 高压球阀
- 压力调节阀
- 高压设备
- 调节阀
- 气动球阀
- 气动阀门



技术特性Technical Characteristics:

- Fluids: Compressed air
- Materials: zamak, PTFE, treated steel, polished brass, NBR, dichromate-treated zinc-plated brass, stainless steel, silicone free
- Pressure: Vacuum to 300 bar
- Temperature: -15°C to +80°C
- 流体介质:压缩空气
- 材料:锌合金,聚四氟乙烯,特制钢,抛光黄铜,丁腈橡胶,重铬酸盐处理的镀锌黄铜,不锈钢,无硅
- 压力范围:真空到300 bar
- 温度范围: -15°C 到 +80°C



法规条例Regulations:

- DI: 97/23/EC (module PED A - diameters greater than 25 mm)
- DI: 2006/42/EC (Machinery Directive)
- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI:97/23/EC (欧盟PED认证A模式 - 直径大于25mm)
- DI:2006/42/EC (机械指令)
- DI:2002/95/EC (欧洲RoHS指令)
- RG:1907/2006 (欧盟REACH法规)



产品类型Product Types:

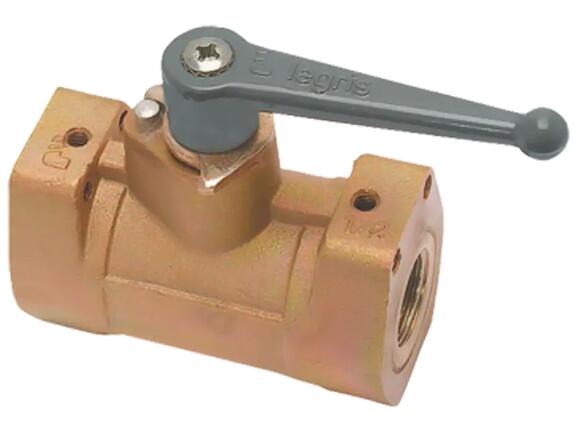

- 二位二通直通高压球阀,BSPP内螺纹2/2 In-Line High Pressure Ball Valve, Female BSPP Thread











Technical Specifications



Ball Seal Material: NBR
Body Material: TREATED BRASS
Handle Type: ZAMAK
O-Ring Material: NBR
Stem Material: STAINLESS STEEL
Stem Seal Material: NBR
Maximum Operating Pressure: 300 bar
Minimum Operating Temperature: -15 °C
Maximum Operating Temperature: 80 °C
Quantity per Box: 2 to 5
Weight: 0,402 to 0,87 kg
Application: Automotive Process, Foundry, Forming, Machine Tools, Textile, Spectacle-Making Industry, Turbines, Deep-Sea Diving
Media: Compressed air
Specifications Met: DI: 97/23/EC (module PED A - diameters greater than 25 mm), DI: 2006/42/EC (Machinery Directive), DI: 2002/95/EC (RoHS), RG: 1907/2006 (REACH)
Shape: 2/2 in-line high pressure ball valve female
Product Type: High Pressure Series
Connection 1 Thread Size: BSPP





Ball Valves High Pressure Series 型号



Part Diameter Nominal (DN) Connection 1 Thread Size (metric)
4402 07 13 7 G1/4
4402 10 17 10 G3/8
4402 13 21 13 G1/2
