Parker 球阀
Parker Ball Valves

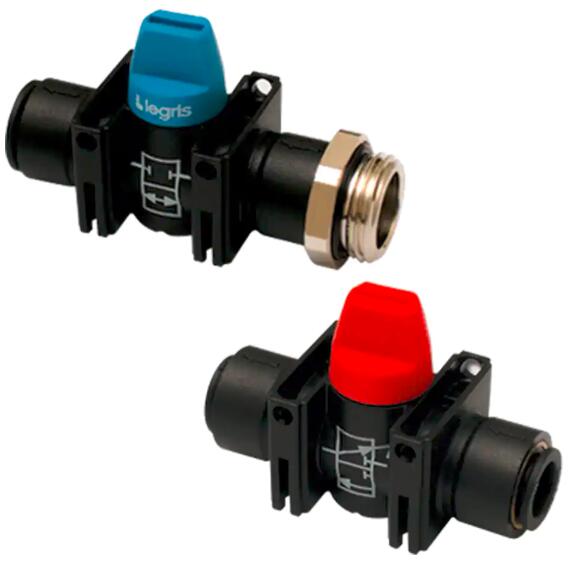

球阀迷你系列Ball Valves Mini Series

这些聚合物轻质球阀自带快插式接头，可显著节省安装时间，同时可满足全流量要求，并具有紧凑型的结构。With their push-in connections, these polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.

带有快插式连接的聚合物轻质球阀，全通径流道，结构紧凑，可显著缩短安装时间。
With their push-in connections, these polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.

特点/优势Features/Benefits:

- 解决方案Optimum Solution

- Full flow
- Marked with the pneumatic symbol for identification of its function
- Lightweight and compact
- Extremely compact, easy-to-operate lever
- Lever with screwdriver slot to facilitate operation
- Designed for polymer tubing with no tube preparation
- Can be mounted on a wall or adjacent using staples
- 全流量
- 标有识别其功能的气动符号
- 重量轻，结构紧凑
- 结构非常紧凑，易于操作
- 手柄带有改锥槽，方便操作
- 此设计用于聚合物管道连接，无需预先管件
- 可用于面板安装，或者使用U形钉调整

- 经过验证的技术Proven Technology

- LF 3000 push-in connection, excellent static and dynamic sealing
- High-strength polyamide
- Excellent long-term performance
- Automatic seal wear compensation for long-term reliability
- 100% leak-tested in production
- Date coding to guarantee quality and traceability
- LF 3000 快插式连接,优异的静态和动态密封
- 高强度聚酰胺
- 出色的长期使用性能
- 自动的密封磨损补偿技术，实现长期稳定的密封性能。
- 在生产阶段，进行完整泄漏检测
- 日期代码提供良好的质量和可追溯性

市场Markets:

- Factory Automation
- Semiconductor
- Packaging
- Wearing Apparel
- 工厂自动化
- 半导体
- 包装
- 纺织

应用Applications:

- Allow/Stop Compressed Air Circulation on Pneumatic Circuits
- Suitable for Vacuum Applications
- 允许/停止气动回路上压缩空气的循环
- 适用于真空应用

技术Technologies:

- Industrial valves
- Mini ball valve
- Mini valve
- Vented valve
- 工业阀门
- 迷你型球阀
- 迷你型阀门
- 排放阀

技术特性Technical Characteristics:

- Fluids: Compressed air
- Materials: technical polymer, brass, nickel-plated brass, NBR, nickel-plated polished brass, graphite-impregnated polyamide, silicone free
- Pressure: Vacuum to 10 bar
- Temperature: -20°C to +80°C
- 流体介质：压缩空气
- 材料：工程聚合物,黄铜,镀镍黄铜,丁腈橡胶,镀镍抛光黄铜,石墨浸渍的聚酰胺,无硅
- 压力范围：真空到10 bar
- 温度范围: -20°C 到 +80°C

产品类型Product Types:

- 2/2 In-Line Mini-Ball Valve
- 2/2 In-Line Mini-Ball Valve, Male BSPP Thread
- 3/2 In-Line Mini-Ball Valve with Vent
- 3/2 In-Line Mini-Ball Valve with Vent, Male BSPP Thread
- Joining Clips
- 二位二通直通迷你型球阀
- 二位二通直通迷你型球阀，BSPP外螺纹
- 二位三通直通迷你型球阀，带排气
- 二位三通直通迷你型球阀，带排气，BSPP外螺纹
- 卡夹

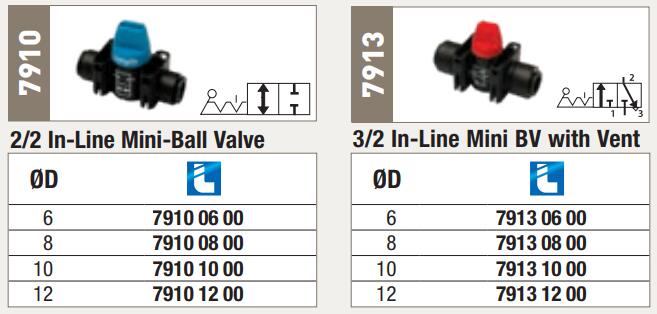

Technical Specifications

Ball Valves Mini Series 型号
