Parker 球阀
Parker Ball Valves

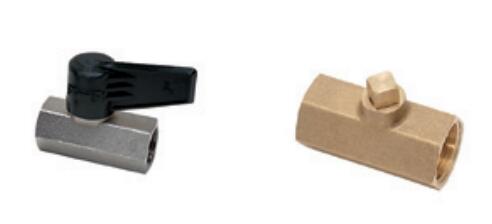

通用轻型球阀Ball Valves Universal Light Series

采用通用系列技术，派克乐可力轻系列阀门结构紧凑，易操作，性能长期可靠.
Using the Universal Series technology, the Parker Legris light series valves offer the advantages of compactness, ease of operation and long-term reliability.

采用通用系列技术，派克乐可力轻系列阀门有着结构紧凑，易操作，性能长期稳定的优势。Using the Universal Series technology, the Parker Legris light series valves offer the advantages of compactness, ease of operation and long-term reliability.

Ball Valves Universal Light Series

特点/优势Features/Benefits:

使用方便Easy-to-Use

- Ease of operation due to the low friction design
- The short levers may be repositioned and exchanged
- Extremely compact
- Wide range of configurations
- 低摩擦力的设计便于操作
- 短手柄可复位和替换
- 非常紧凑
- 配置多样

效率可达更大Maximum Efficiency

- Excellent performance under vacuum
- Full flow
- Chemical nickel-plated brass with high phosphorous content for outstanding corrosion resistance
- Automatic seal wear compensation system
- 真空环境性能卓越
- 全流通能力
- 高磷含量的化学铜镀镍材质有出色的耐腐蚀性
- 带有自动密封磨损补偿设计

稳定Reliability

- Tried-and-tested technology
- Forged brass provides mechanical strength and long service life
- 100% leak-tested in production
- Date coding to guarantee quality and traceability
- 稳定的技术
- 锻造黄铜提供了机械强度和长期的使用寿命
- 阀门进行泄漏试验
- 阀门带有日期代码，质量可追溯。

市场Markets:

- Packaging
- Wearing Apparel
- Lumber & Wood
- Rubber & Tire Processing
- Plastic Processing
- Rail
- 包装机械
- 服装制造
- 伐木及木材加工
- 橡胶轮胎加工
- 塑料加工
- 轨道交通

应用Applications:

- Allow/Stop Compressed Air Circulation on Pneumatic Circuits
- Suitable for Vacuum Applications
- 允许/停止气动元件中的压缩空气循环
- 真空场合适用

技术工艺Technologies:

- Industrial valves
- Corrosion resistant
- Pneumatic circuit
- Control valves
- Pneumatic systems
- 工业阀门
- 抗腐蚀
- 气动元件
- 控制阀
- 启动系统

技术参数Technical Characteristics:

- Fluids: Compressed air, other fluids: see compatibility chart in our catalogue
- Materials: brass, polymer or zamak, shot-blasted brass or shot-blasted nickel-plated brass, NBR, nickel-plated polished brass, graphite-impregnated polyamide, silicone free
- Pressure: Vacuum to 12 bar
- Temperature: -20°C to +80°C
- 适用介质：压缩空气，其他流体：见产品样本中化学相容性表
- 材质：黄铜,聚合物或锌合金，喷丸黄铜或喷丸铜镀镍，NBR,抛光铜镀镍，添加石墨的聚酰胺，不含硅
- 压力范围：真空 12 bar
- 温度范围：-20°C 到 +80°C

条例Regulations:

- DI: 97/23/EC (module PED A - diameters greater than 25 mm)
- DI: 2006/42/EC (Machinery Directive)
- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/EC (模块 PED A - 直径大于 25 mm)
- DI: 2006/42/EC (机械指令)
- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)

产品类型Product Types:

- 2/2 In-Line Ball Valve, Female BSPP Thread
- 2/2 In-Line Ball Valve, Short Handle, Female BSPP Thread
- 2/2 In-Line Ball Valve, Male/Female BSPP Thread
- 2/2 In-Line Ball Valve, Short Handle, Male/Female BSPP Thread
- 2/2 In-Line Ball Valve, Male BSPP Thread
- 2/2 In-Line Ball Valve, 2 Vent Plugs, Female BSPP Thread
- 2/2 Ball Valve, Square Stem, Female BSPP Thread
- 2/2 Ball Valve, Square Stem, Male/Female BSPP Thread
- 2位2通在线球阀，BSPP内螺纹
- 2位2通在线球阀，短手柄，BSPP内螺纹
- 2位2通在线球阀，BSPP外/内螺纹
- 2位2通直通型球阀，短手柄，BSPP内/外螺纹
- 2位2通在线球阀，BSPP外螺纹
- 2位2通在线球阀，2个排气阀，BSPP内螺纹
- 2位2通球阀，方形阀杆，BSPP内螺纹
- 2位2通球阀,方形阀杆,BSPP内/外螺纹

Technical Specifications

Ball Valves Universal Light Series 型号
