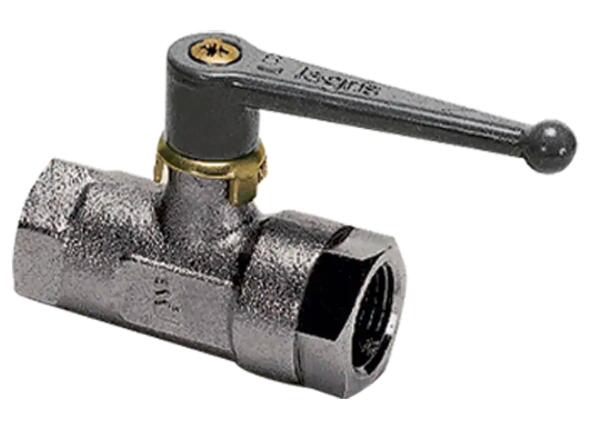

Parker 球阀
Parker Ball Valves
通用球阀系列Ball Valves Universal Series

此类阀门采用密封磨损补偿技术，使密封效果更加稳定和耐久，从而保护任何加压或真空系统。 This range of valves has patented seal wear compensating technology for reliable and durable sealing, protecting any system whether under pressure or vacuum.





此类阀门采用密封磨损补偿技术，使密封效果更加稳定和耐久，从而保护加压或真空系统。This range of valves has patented seal wear compensating technology for reliable and durable sealing, protecting any system whether under pressure or vacuum.



特点/优势Features/Benefits:

- 耐久&稳定Durability & reliability

- Automatic seal wear compensation for long-term reliability
- Robust, corrosion-resistant materials
- 100% leak-tested in production
- Date coding to guarantee quality and traceability
- 自动磨损补偿技术以获得阀门的长期稳定性。
- 材料耐久抗腐蚀
- 生产环节中进行完整泄漏测试。
- 生产日期编码可提供良好的质量和可追溯性

- 通用性和良好的性能Versatility & Performance

- Ideal for ensuring the performance of pneumatic circuits
- Customised valves for all special applications
- Unequalled performance under vacuum
- Smooth operation thanks to self-lubricating seals
- Large range of working pressures and temperatures
- Lever can be repositioned and replaced
- Many configurations to satisfy all system requirements
- 很好的实现气动元件性能
- 可为不同应用提供定制阀门。
- 真空条件下具有优异性能
- 自润滑密封，使操作方便。
- 广泛的工作压力和温度适用范围。
- 手柄可重新定位和更换。
- 提供多种配置，符合不同系统要求。



市场Markets:

- Packaging
- Wearing Apparel
- Lumber & Wood
- Rubber & Tire Processing
- Plastic Processing
- Rail
- 包装机械
- 服装制造
- 伐木和木材加工
- 橡胶轮胎加工
- 塑料成型
- 轨道交通



应用Applications:

- Allow/Stop Fluid Circulation on Industrial Circuits
- Suitable for Slightly Corrosive Industrial Fluids
- Suitable for Vacuum Applications
- 允许/停止工业流体管路中的流体循环
- 适用于微腐蚀性工业流体
- 适用于真空应用。



技术Technologies:

- Industrial valves
- Corrosion resistant
- Pneumatic circuits
- Pneumatic systems
- 工业阀门
- 抗腐蚀
- 气动元件
- 启动系统



技术参数Technical Characteristics:

- Fluids: Industrial fluids
- Materials: brass, galvanised steel, treated zamak, NBR, nickel-plated brass, nickel-plated shot-blasted brass, nickel-plated polished brass, silicone free
- Pressure: Vacuum to 40 bar
- Temperature: -20°C to +80°C
- 适用流体：工业流体
- 阀门材质：黄铜，镀锌碳钢，锌合金，NBR，铜镀镍，喷丸铜镀镍，抛光铜镀镍，不含硅
- 压力范围：真空 40 bar
- 温度范围：-20°C 到 +80°C



符合条例Regulations:

- DI: 97/23/EC (module PED A - diameters greater than 25 mm)
- DI: 2006/42/EC (Machinery Directive)
- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/EC (章节 PED A - 直径大于 25 mm)
- DI: 2006/42/EC (机械指令)
- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)



产品类型Product Types:

- 2/2 In-Line Ball Valve, Female BSPP Thread
- 2/2 In-Line Ball Valve, Male/Female BSPP Thread
- 2/2 In-Line Ball Valve, Male BSPP Thread
- 2/2 In-Line Ball Valve with Connections for Use with Steel Tube
- 2/2 In-Line Ball Valve with Compression Connections
- 2/2 In-Line Panel-Mountable Ball Valve, Female BSPP Thread
- 2/2 In-Line Ball Valve for Screw Fixing, Female BSPP Thread
- 2/2 In-Line Ball Valve for Screw Fixing, Male/Female BSPP Thread
- 2/2 Right-Angled Ball Valve, Female BSPP Thread
- 2/2 Right-Angled Ball Valve, Male/Female BSPP Thread
- 3/3 Right-Angle Ported Ball Valve, Female BSPP Thread
- 3/3 Right-Angle Ported Ball Valve without Closed Position, Female BSPP Thread
- 3/2 Panel-Mountable Right-Angled Ball Valve, Female BSPP Thread
- 3/2 Panel-Mountable Equal Plane Ball Valve, Female BSPP Thread
- 3/2 In-Line Vented Ball Valve, Female BSPP and Metric Thread
- 3/2 Panel-Mountable In-Line Ball Valve, Female BSPP and Metric Thread
- 3/2 In-Line Vented Ball Valve, Female BSPP Thread
- 3/2 Right-Angled Ball Valve with Vent, Female BSPP Thread
- 3/2 Right-Angled Ball Valve with Vent, Male/Female BSPP Thread
- 2/2 In-Line Lockable Ball Valve, Female BSPP Thread
- 3/2 In-line Vented Lockable Ball Valve, Female BSPP Thread
- 3/2 In-Line Lockable Ball Valve with Threaded Exhaust Port, Female BSPP and Metric Thread
- 3/2 In-line Vented 3-Point Lockable Ball Valve, Female BSPP Thread
- 3/2 Right-Angled 3-Point Lockable Ball Valve, Female BSPP Thread
- 二位二通，直通型球阀，BSPP内螺纹
- 二位二通，直通型球阀，BSPP外/内螺纹
- 二位二通，直通型球阀，BSPP外螺纹
- 二位二通，直通型球阀，钢管用
- 二位二通，直通型球阀，卡套连接
- 二位二通，直通型球阀，面板安装，BSPP内螺纹
- 二位二通，直通型球阀，螺钉固定安装，BSPP内螺纹
- 二位二通，直通型球阀，螺钉固定安装，BSPP外/内螺纹
- 二位二通，直角型球阀，BSPP内螺纹
- 二位二通，直角型球阀，BSPP外/内螺纹
- 三位三通，直角型球阀，BSPP内螺纹
- 三位三通，直角型球阀，全开式，BSPP内螺纹
- 二位三通，直角型球阀，面板安装，带排气，BSPP内螺纹
- 二位三通，直角型球阀，面板安装，带排气，平面球阀，BSPP内螺纹
- 二位三通，直通型球阀，带排气，BSPP内螺纹和公制螺纹
- 二位三通，直通型球阀，面板安装，BSPP你为螺纹和公制螺纹
- 二位三通，直通型球阀，带排气，BSPP内螺纹
- 二位三通，直角型球阀，带排气，BSPP内螺纹
- 二位三通，直角型球阀，带排气，BSPP外/内螺纹
- 二位二通，直通型球阀，可锁球阀，BSPP内螺纹
- 二位三通，直通型球阀，可锁球阀，带排气，BSPP内螺纹
- 二位三通，直通型球阀，带螺纹排气端口，BSPP内螺纹和公制螺纹
- 二位三通，直通型球阀，带排气，3点可锁球阀，BSPP内螺纹
- 二位三通，直角型球阀，3点可锁球阀，BSPP内螺纹





Technical Specifications

Maximum Operating Pressure: 20 to 40 bar
Ball Seal Material: NBR
Body Material: NICKEL PLATED BRASS
O-Ring Material: NBR
Stem Material: BRASS
Stem Seal Material: NBR
Minimum Operating Temperature: -20 °C
Maximum Operating Temperature: 80 °C
Quantity per Box: 1 to 10
Weight: 0,094 to 2,614 kg
Application: Pneumatics, Vacuum, Transportation, Packaging, Textile, Sawmill, Rubber & Plastics
Media: Industrial fluids
Specifications Met: DI: 97/23/EC (module PED A - diameters greater than 25 mm), DI: 2006/42/EC (Machinery Directive), DI: 2002/95/EC (RoHS), RG: 1907/2006 (REACH)



Ball Valves Universal Series 型号

Part Product Type Shape Ball Material Handle Nut Material Sleeve Material Diameter Nominal (DN) Connection 1 Thread Style Connection 1 Thread Size (metric) Connection 2 Tube O.D. (mm)
0400 04 10 Universal and Universal Customised Series 2/2 in-line ball valve male na ZAMAK na na 4 BSPP G1/8 na
0400 07 13 Universal and Universal Customised Series 2/2 in-line ball valve male na ZAMAK na na 7 BSPP G1/4 na
0400 10 17 Universal and Universal Customised Series 2/2 in-line ball valve male na ZAMAK na na 10 BSPP G3/8 na
0400 13 21 Universal and Universal Customised Series 2/2 in-line ball valve male na ZAMAK na na 13 BSPP G1/2 na
0400 18 27 Universal and Universal Customised Series 2/2 in-line ball valve male na ZAMAK na na 18 BSPP G3/4 na
0401 04 10 Universal and Universal Customised Series 2/2 in-line ball valve male and female na ZAMAK na na 4 BSPP G1/8 na
0401 05 10 Universal and Universal Customised Series 2/2 in-line ball valve male and female na ZAMAK na na 5 BSPP G1/8 na
0401 07 13 Universal and Universal Customised Series 2/2 in-line ball valve male and female na ZAMAK na na 7 BSPP G1/4 na
0401 10 17 Universal and Universal Customised Series 2/2 in-line ball valve male and female na ZAMAK na na 10 BSPP G3/8 na
0401 13 21 Universal and Universal Customised Series 2/2 in-line ball valve male and female na ZAMAK na na 13 BSPP G1/2 na
0401 18 27 Universal and Universal Customised Series 2/2 in-line ball valve male and female na ZAMAK na na 18 BSPP G3/4 na
0401 23 34 Universal and Universal Customised Series 2/2 in-line ball valve male and female na ZAMAK na na 23 BSPP G1 na
0401 32 42 Universal and Universal Customised Series 2/2 in-line ball valve male and female na ZAMAK na na 32 BSPP G1 1/4 na
0402 04 10 Universal and Universal Customised Series 2/2 in-line ball valve female na ZAMAK na na 4 BSPP G1/8 na
0402 07 10 Universal and Universal Customised Series 2/2 in-line ball valve female na ZAMAK na na 7 BSPP G1/8 na
0402 07 13 Universal and Universal Customised Series 2/2 in-line ball valve female na ZAMAK na na 7 BSPP G1/4 na
0402 10 17 Universal and Universal Customised Series 2/2 in-line ball valve female na ZAMAK na na 10 BSPP G3/8 na
0402 13 21 Universal and Universal Customised Series 2/2 in-line ball valve female na ZAMAK na na 13 BSPP G1/2 na
0402 20 27 Universal and Universal Customised Series 2/2 in-line ball valve female na ZAMAK na na 20 BSPP G3/4 na
0402 23 34 Universal and Universal Customised Series 2/2 in-line ball valve female na ZAMAK na na 23 BSPP G1 na
0402 32 42 Universal and Universal Customised Series 2/2 in-line ball valve female na ZAMAK na na 32 BSPP G1 1/4 na
0402 32 49 Universal and Universal Customised Series 2/2 in-line ball valve female na ZAMAK na na 32 BSPP G1 1/2 na
0402 40 48 Universal and Universal Customised Series 2/2 in-line ball valve female na ZAMAK na na 40 BSPP G2 na
0402 40 49 Universal and Universal Customised Series 2/2 in-line ball valve female na ZAMAK na na 40 BSPP G1 1/2 na
0411 04 06 Universal and Universal Customised Series 2/2 in-line ball valve with steel compression fitting na ZAMAK TREATED STEEL TREATED STEEL 4 na na 6
0411 06 08 Universal and Universal Customised Series 2/2 in-line ball valve with steel compression fitting na ZAMAK TREATED STEEL TREATED STEEL 6 na na 8
0411 07 10 Universal and Universal Customised Series 2/2 in-line ball valve with steel compression fitting na ZAMAK TREATED STEEL TREATED STEEL 7 na na 10
0411 10 12 Universal and Universal Customised Series 2/2 in-line ball valve with steel compression fitting na ZAMAK TREATED STEEL TREATED STEEL 10 na na 12
0414 04 06 Universal and Universal Customised Series 2/2 in-line ball valve with brass compression fitting na ZAMAK NICKEL PLATED BRASS BRASS 4 na na 6
0414 06 08 Universal and Universal Customised Series 2/2 in-line ball valve with brass compression fitting na ZAMAK NICKEL PLATED BRASS BRASS 6 na na 8
0414 07 10 Universal and Universal Customised Series 2/2 in-line ball valve with brass compression fitting na ZAMAK NICKEL PLATED BRASS BRASS 7 na na 10
0414 10 12 Universal and Universal Customised Series 2/2 in-line ball valve with brass compression fitting na ZAMAK NICKEL PLATED BRASS BRASS 10 na na 12
0432 04 10 Universal Series, Lockable 2/2 in-line lockable ball valve female na ZAMAK na na 4 BSPP G1/8 na
0432 07 13 Universal Series, Lockable 2/2 in-line lockable ball valve female na ZAMAK na na 7 BSPP G1/4 na
0432 10 17 Universal Series, Lockable 2/2 in-line lockable ball valve female na ZAMAK na na 10 BSPP G3/8 na
0432 13 21 Universal Series, Lockable 2/2 in-line lockable ball valve female na ZAMAK na na 13 BSPP G1/2 na
0432 20 27 Universal Series, Lockable 2/2 in-line lockable ball valve female na ZAMAK na na 20 BSPP G3/4 na
0432 23 34 Universal Series, Lockable 2/2 in-line lockable ball valve female na ZAMAK na na 23 BSPP G1 na
0436 10 17 Universal Series, Lockable 3/2 in-line vented 3 point lockable ball valve female na na na na 10 BSPP G3/8 na
0436 13 21 Universal Series, Lockable 3/2 in-line vented 3 point lockable ball valve female na na na na 13 BSPP G1/2 na
0436 18 27 Universal Series, Lockable 3/2 in-line vented 3 point lockable ball valve female na na na na 18 BSPP G3/4 na
0436 23 34 Universal Series, Lockable 3/2 in-line vented 3 point lockable ball valve female na na na na 23 BSPP G1 na
0437 07 13 Universal Series, Lockable 3/2 in-line vented 3 point lockable ball valve female na ZAMAK na na 7 BSPP G1/4 na
0437 10 17 Universal Series, Lockable 3/2 in-line vented 3 point lockable ball valve female na ZAMAK na na 10 BSPP G3/8 na
0437 13 21 Universal Series, Lockable 3/2 in-line vented 3 point lockable ball valve female na ZAMAK na na 13 BSPP G1/2 na
0437 18 27 Universal Series, Lockable 3/2 in-line vented 3 point lockable ball valve female na ZAMAK na na 18 BSPP G3/4 na
0437 23 34 Universal Series, Lockable 3/2 in-line vented 3 point lockable ball valve female na ZAMAK na na 23 BSPP G1 na
0438 09 17 Universal Series, Lockable 3/2 right angled 3 point lockable ball valve female na ZAMAK na na 9 BSPP G3/8 na
0438 12 21 Universal Series, Lockable 3/2 right angled 3 point lockable ball valve female na ZAMAK na na 12 BSPP G1/2 na
0438 18 27 Universal Series, Lockable 3/2 right angled 3 point lockable ball valve female na ZAMAK na na 18 BSPP G3/4 na
0438 23 34 Universal Series, Lockable 3/2 right angled 3 point lockable ball valve female na ZAMAK na na 23 BSPP G1 na
0439 04 10 Universal Series, Lockable 3/2 in-line vented lockable ball valve female na ZAMAK na na 4 BSPP G1/8 na
0439 07 13 Universal Series, Lockable 3/2 in-line vented lockable ball valve female na ZAMAK na na 7 BSPP G1/4 na
0439 10 17 Universal Series, Lockable 3/2 in-line vented lockable ball valve female na ZAMAK na na 10 BSPP G3/8 na
0439 13 21 Universal Series, Lockable 3/2 in-line vented lockable ball valve female na ZAMAK na na 13 BSPP G1/2 na
0439 18 27 Universal Series, Lockable 3/2 in-line vented lockable ball valve female na ZAMAK na na 18 BSPP G3/4 na
0439 23 34 Universal Series, Lockable 3/2 in-line vented lockable ball valve female na ZAMAK na na 23 BSPP G1 na
0446 04 10 Universal and Universal Customised Series 2/2 in-line panel montable ball valve female na ZAMAK na na 4 BSPP G1/8 na
0446 07 13 Universal and Universal Customised Series 2/2 in-line panel montable ball valve female na ZAMAK na na 7 BSPP G1/4 na
0446 10 17 Universal and Universal Customised Series 2/2 in-line panel montable ball valve female na ZAMAK na na 10 BSPP G3/8 na
0446 13 21 Universal and Universal Customised Series 2/2 in-line panel montable ball valve female na ZAMAK na na 13 BSPP G1/2 na
0448 04 10 Universal and Universal Customised Series 3/3 right angled panel mountable ball valve female na ZAMAK na na 4 BSPP G1/8 na
0448 06 13 Universal and Universal Customised Series 3/3 right angled panel mountable ball valve female na ZAMAK na na 6 BSPP G1/4 na
0448 09 17 Universal and Universal Customised Series 3/3 right angled panel mountable ball valve female na ZAMAK na na 9 BSPP G3/8 na
0448 12 21 Universal and Universal Customised Series 3/3 right angled panel mountable ball valve female na ZAMAK na na 12 BSPP G1/2 na
0449 07 13 Universal Series, Vented 3/2 in-line vented panel mountable ball valve female na ZAMAK na na 7 BSPP G1/4 na
0449 10 17 Universal Series, Vented 3/2 in-line vented panel mountable ball valve female na ZAMAK na na 10 BSPP G3/8 na
0449 13 21 Universal Series, Vented 3/2 in-line vented panel mountable ball valve female na ZAMAK na na 13 BSPP G1/2 na
0452 04 10 Universal and Universal Customised Series 3/2 right angled plane panel mountable ball valve female na ZAMAK na na 4 BSPP G1/8 na
0452 06 13 Universal and Universal Customised Series 3/2 right angled plane panel mountable ball valve female na ZAMAK na na 6 BSPP G1/4 na
0461 06 10 Universal Series, Vented 3/2 right angled vented ball valve male and female na ZAMAK na na 6 BSPP G1/8 na
0461 06 13 Universal Series, Vented 3/2 right angled vented ball valve male and female na ZAMAK na na 6 BSPP G1/4 na
0461 09 17 Universal Series, Vented 3/2 right angled vented ball valve male and female na ZAMAK na na 9 BSPP G3/8 na
0461 12 21 Universal Series, Vented 3/2 right angled vented ball valve male and female na ZAMAK na na 12 BSPP G1/2 na
0461 18 27 Universal Series, Vented 3/2 right angled vented ball valve male and female na ZAMAK na na 18 BSPP G3/4 na
0462 06 10 Universal Series, Vented 3/2 right angled vented ball valve female NICKEL PLATED BRASS ZAMAK na na 6 BSPP G1/8 na
0462 06 13 Universal Series, Vented 3/2 right angled vented ball valve female NICKEL PLATED BRASS ZAMAK na na 6 BSPP G1/4 na
0462 09 17 Universal Series, Vented 3/2 right angled vented ball valve female NICKEL PLATED BRASS ZAMAK na na 9 BSPP G3/8 na
0462 12 21 Universal Series, Vented 3/2 right angled vented ball valve female NICKEL PLATED BRASS ZAMAK na na 12 BSPP G1/2 na
0462 18 27 Universal Series, Vented 3/2 right angled vented ball valve female NICKEL PLATED BRASS ZAMAK na na 18 BSPP G3/4 na
0462 23 34 Universal Series, Vented 3/2 right angled vented ball valve female NICKEL PLATED BRASS ZAMAK na na 23 BSPP G1 na
0469 04 10 Universal Series, Vented 3/2 in-line vented ball valve female na ZAMAK na na 4 BSPP G1/8 na
0469 07 13 Universal Series, Vented 3/2 in-line vented ball valve female na ZAMAK na na 7 BSPP G1/4 na
0469 10 17 Universal Series, Vented 3/2 in-line vented ball valve female na ZAMAK na na 10 BSPP G3/8 na
0469 13 21 Universal Series, Vented 3/2 in-line vented ball valve female na ZAMAK na na 13 BSPP G1/2 na
0469 18 27 Universal Series, Vented 3/2 in-line vented ball valve female na ZAMAK na na 18 BSPP G3/4 na
0469 23 34 Universal Series, Vented 3/2 in-line vented ball valve female na ZAMAK na na 23 BSPP G1 na
0471 04 10 Universal and Universal Customised Series 2/2 right angled ball valve male and female na ZAMAK na na 4 BSPP G1/8 na
0471 06 10 Universal and Universal Customised Series 2/2 right angled ball valve male and female na ZAMAK na na 6 BSPP G1/8 na
0471 06 13 Universal and Universal Customised Series 2/2 right angled ball valve male and female na ZAMAK na na 6 BSPP G1/4 na
0471 09 17 Universal and Universal Customised Series 2/2 right angled ball valve male and female na ZAMAK na na 9 BSPP G3/8 na
0471 12 21 Universal and Universal Customised Series 2/2 right angled ball valve male and female na ZAMAK na na 12 BSPP G1/2 na
0471 18 27 Universal and Universal Customised Series 2/2 right angled ball valve male and female na ZAMAK na na 18 BSPP G3/4 na
0471 23 34 Universal and Universal Customised Series 2/2 right angled ball valve male and female na ZAMAK na na 23 BSPP G1 na
0472 04 10 Universal and Universal Customised Series 2/2 right angled ball valve female na ZAMAK na na 4 BSPP G1/8 na
0472 06 13 Universal and Universal Customised Series 2/2 right angled ball valve female na ZAMAK na na 6 BSPP G1/4 na
0472 09 17 Universal and Universal Customised Series 2/2 right angled ball valve female na ZAMAK na na 9 BSPP G3/8 na
0472 12 21 Universal and Universal Customised Series 2/2 right angled ball valve female na ZAMAK na na 12 BSPP G1/2 na
0472 18 27 Universal and Universal Customised Series 2/2 right angled ball valve female na ZAMAK na na 18 BSPP G3/4 na
0472 23 34 Universal and Universal Customised Series 2/2 right angled ball valve female na ZAMAK na na 23 BSPP G1 na
0482 04 10 Universal and Universal Customised Series 3/3 right angled ball valve female na ZAMAK na na 4 BSPP G1/8 na
0482 06 13 Universal and Universal Customised Series 3/3 right angled ball valve female na ZAMAK na na 6 BSPP G1/4 na
0482 09 17 Universal and Universal Customised Series 3/3 right angled ball valve female na ZAMAK na na 9 BSPP G3/8 na
0482 12 21 Universal and Universal Customised Series 3/3 right angled ball valve female na ZAMAK na na 12 BSPP G1/2 na
0482 18 27 Universal and Universal Customised Series 3/3 right angled ball valve female na ZAMAK na na 18 BSPP G3/4 na
0482 23 34 Universal and Universal Customised Series 3/3 right angled ball valve female na ZAMAK na na 23 BSPP G1 na
0483 04 10 Universal and Universal Customised Series 3/3 right angled ball valve without closed position female na ZAMAK na na 4 BSPP G1/8 na
0483 06 13 Universal and Universal Customised Series 3/3 right angled ball valve without closed position female na ZAMAK na na 6 BSPP G1/4 na
0483 09 17 Universal and Universal Customised Series 3/3 right angled ball valve without closed position female na ZAMAK na na 9 BSPP G3/8 na
0483 12 21 Universal and Universal Customised Series 3/3 right angled ball valve without closed position female na ZAMAK na na 12 BSPP G1/2 na
0483 18 27 Universal and Universal Customised Series 3/3 right angled ball valve without closed position female na ZAMAK na na 18 BSPP G3/4 na
0483 23 34 Universal and Universal Customised Series 3/3 right angled ball valve without closed position female na ZAMAK na na 23 BSPP G1 na
0489 07 13 Universal Series, Vented 3/2 in-line vented ball valve female na ZAMAK na na 7 BSPP G1/4 M5x0,8 na
0489 07 14 Universal Series, Vented 3/2 in-line vented ball valve female na ZAMAK na na 7 NPT NPT1/4 na
0489 10 17 Universal Series, Vented 3/2 in-line vented ball valve female na ZAMAK na na 10 BSPP G3/8 M5x0,8 na
0489 10 18 Universal Series, Vented 3/2 in-line vented ball valve female na ZAMAK na na 10 NPT NPT3/8 na
0489 13 21 Universal Series, Vented 3/2 in-line vented ball valve female na ZAMAK na na 13 BSPP G1/2 G1/8 na
0489 13 22 Universal Series, Vented 3/2 in-line vented ball valve female na ZAMAK na na 13 NPT NPT1/2 na
0489 18 27 Universal Series, Vented 3/2 in-line vented ball valve female na ZAMAK na na 18 BSPP G3/4 G1/4 na
0489 23 34 Universal Series, Vented 3/2 in-line vented ball valve female na ZAMAK na na 23 BSPP G1 G1/4 na
0489 23 35 Universal Series, Vented 3/2 in-line vented ball valve female na ZAMAK na na 23 NPT NPT1 na
6401 04 10 Universal and Universal Customised Series 2/2 right angled ball valve female for screw fixing na ZAMAK na na 4 BSPP G1/8 na
6401 07 13 Universal and Universal Customised Series 2/2 right angled ball valve female for screw fixing na ZAMAK na na 7 BSPP G1/4 na
6401 10 17 Universal and Universal Customised Series 2/2 right angled ball valve female for screw fixing na ZAMAK na na 10 BSPP G3/8 na
6401 13 21 Universal and Universal Customised Series 2/2 right angled ball valve female for screw fixing na ZAMAK na na 13 BSPP G1/2 na
6402 04 10 Universal and Universal Customised Series 2/2 in-line for screw fixing ball valve female na ZAMAK na na 4 BSPP G1/8 na
6402 07 13 Universal and Universal Customised Series 2/2 in-line for screw fixing ball valve female na ZAMAK na na 7 BSPP G1/4 na
6402 10 17 Universal and Universal Customised Series 2/2 in-line for screw fixing ball valve female na ZAMAK na na 10 BSPP G3/8 na
6402 13 21 Universal and Universal Customised Series 2/2 in-line for screw fixing ball valve female na ZAMAK na na 13 BSPP G1/2 na
6402 20 27 Universal and Universal Customised Series 2/2 in-line for screw fixing ball valve female na ZAMAK na na 20 BSPP G3/4 na
6402 23 34 Universal and Universal Customised Series 2/2 in-line for screw fixing ball valve female na ZAMAK na na 23 BSPP G1 na








美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology

E-mail：sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 101 22694 | 139 1096 2635
Http：//www.cnmec.biz
传真：010-8428 8762


京ICP备08000876号-8
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
