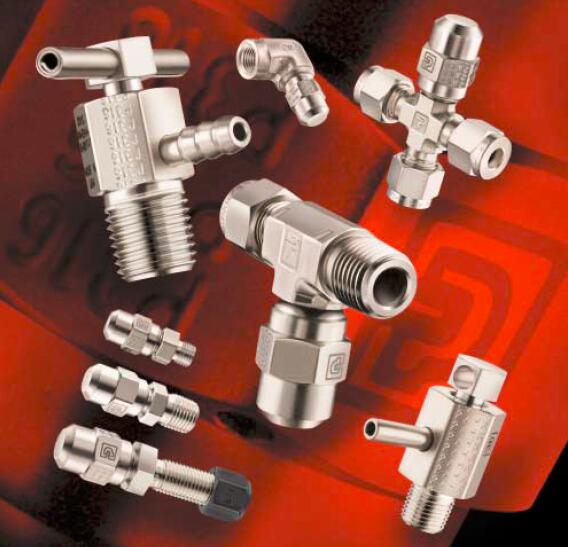

BV系列排放阀 Bleed Valve, 10,000 PSI - BV Series

派克BV系列排放阀是为系统可达10,000 psi（689 bar）应用而设计的，用于阀组或压力表/根部阀等。排放阀与可选的有倒刺的通气管接头相连，将系统管路压力排放到大气或单独的控制管路中。 Parker's BV Series Bleed Valves are designed to vent a system's line pressure either to atmosphere or a separate containment line. These compact bleed valves are rated to pressures up to 10,000 PSI (689 BAR).

派克BV系列排放阀是为系统高达10,000 psi（689 bar）应用而设计的。这些放气阀用于其他阀门或系统，如阀组或压力表/根部阀。在功能上，排放阀与可选的有倒刺的通气管接头连接在一起，将系统管路压力排放到大气或单独的控制管路中。这些紧凑的阀门提供了一个前挡块和额外的排气管的设计，大幅降低阀杆发生意外断裂的可能性。在许多通用的排放阀中没有发现这种安全特性。 Parker BV Series Bleed Valves are designed for systems up to 10,000 PSI (689 BAR).These bleed valves are used on other valves or systems such as multi-valve manifolds or gauge/root valves. Functionally, the bleed valve vents the system line pressure either to atmosphere or to a separate containment line when used with the optional barbed vent tube. These compact valves provide a positive stop/vent tube design that prevents the accidental removal of the stem. This safety feature is not found in many common bleed valves.

从系统中取出仪表或控制装置校准时，要提前使用派克排放阀。BV系列也推荐用于液压泄放系统，并配备两个NPT外螺纹管路和SAE接口便于安装的灵活性。 Parker bleed valves are used whenever an instrument is removed from a system or to assist in the calibration of control devices. The BV Series is also recommended for use in bleeding hydraulic systems and comes in both NPT Male Pipe and SAE ports for installation flexibility.

BV系列排放阀 Bleed Valve, 10,000 PSI - BV Series

市场Markets:

- Power
- Chemical/Petrochemical
- Pulp and Paper
- Offshore
- 电厂
- 化学/石化
- 纸浆和造纸
- 离岸平台

特点/优势Features/Benefits:

- Available in stainless steel, carbon steel and Alloy N24135
- Vent tube directs excess gas or liquid from system lines
- Chrome plated stem provides extended cycle life with improved sealability
- Positive stop/vent tube design prevents accidental removal of the stem
- Compact design
- Wrench actuation
- Available in a variety of end configurations including male pipe and SAE ports
- 100% factory tested
- Barbed vent tube option enables containment of vented media
- Optional T-bar handle for wrench-less actuation
- 适用材质有不锈钢、碳钢、合金N24135
- 排气管从系统管路引导排放多余的气体或液体。
- 镀铬阀杆提供，延长循环寿命，提高了密封性能
- 前挡块/排气管设计大幅降低阀杆发生断裂的可能性。
- 紧凑型的设计
- 扳手驱动操作
- 可提供多种终端配置，包括外螺纹管道和SAE端口
- 完整工厂测试
- 有倒刺通气管选项可容纳通风介质
- T型手柄驱动，无需扳手选型可选

应用Applications:

- Multi-Valve Manifolds
- Pressure Tanks
- Calibration systems
- Hydraulic Systems
- 阀组应用
- 压力罐体,
- 校准系统
- 液压系统

派克BV系列排放阀是为系统高达10,000 psi（689 bar）应用而设计的。这些放气阀用于其他阀门或系统，如阀组或压力表/根部阀。在功能上，排放阀与可选的有倒刺的通气管接头连接在一起，将系统管路压力排放到大气或单独的控制管路中。这些紧凑的阀门提供了一个前挡块和额外的排气管的设计，大幅降低阀杆发生意外断裂的可能性。在许多通用的排放阀中没有发现这种安全特性。Parker BV Series Bleed Valves are designed for systems up to 10,000 PSI (689 BAR).These bleed valves are used on other valves or systems such as multi-valve manifolds or gauge/root valves. Functionally, the bleed valve vents the system line pressure either to atmosphere or to a separate containment line when used with the optional barbed vent tube. These compact valves provide a positive stop/vent tube design that prevents the accidental removal of the stem. This safety feature is not found in many common bleed valves.

Technical Specifications

Bleed Valve, 10,000 PSI - BV Series 型号
