Parker 仪表阀
Parker Instrumentation Valves

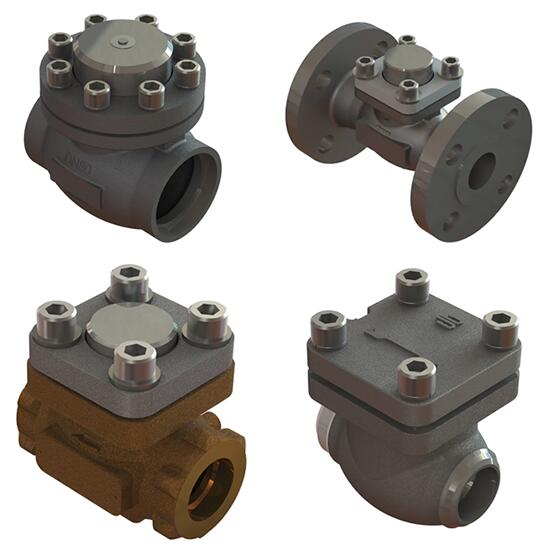

超低温单向阀 Cryogenic Check Valves

派克Bestobell的超低温提升式止回阀和旋启式止回阀系列具有创新的可活动的法兰螺栓盘式阀芯设计，设计充分考虑了允许热膨胀率和收缩率，可有效消除泄漏，大大提高了阀门使用安全性。 Parker Bestobell's cryogenic lift and swing check valves are designed with a loose flange bolted bonnet design that allows for thermal expansion and contraction and eliminates leakage, therefore enhancing safety.

派克Bestobell的超低温提升式止回阀和旋启式止回阀系列具有新颖的可活动的法兰螺栓盘式阀芯设计，设计充分考虑了允许热膨胀率和收缩率，因此可大幅降低泄漏。 Parker Bestobell's range of cryogenic lift check and swing check valves feature an innovative loose flange bolted bonnet design that allows for thermal expansion and contraction, therefore eliminating leakage.

阀门材质有不锈钢和青铜可选，派克Bestobell的止回阀装有一个可来回摆动的盘式阀芯，允许停留在所需位置使用。其嵌入式的聚四氟乙烯密封圈，嵌入盘式阀芯，在环境温度下以实现摆动下降时关闭紧密。应用旋启式止回阀，可适应在较低压降时，阀门较大开度能实现较好的流量性能。 Available in Stainless Steel and Bronze, Parker Bestobell's check valves are fitted with a swing return, allowing for use in any position. The PTFE seal incorporated into the valve disc ensures a drop tight shut off at ambient temperatures. With the swing check valve, wide openings also allow high flow rates at low-pressure drops.

标准化部件被用于派克Bestobell摆动阀，截止阀，球阀和闸阀上。派克Bestobell的提升式止回阀通常与截止阀、旋启式止回阀连接，也可以用于与闸阀或球阀连接。 Standardised parts are used in Parker Bestobell's swing valves, globe, ball and gate valves. Parker Bestobell's lift check valves are often specified in conjunction with globe valves and swing check valves would be used in conjunction with gate or ball valves.

提升式止回阀具有锥形阀座设计，无泄漏关闭，因此大限度地提高了安全性和使用性能。 The lift check valves feature a cone seat design for zero leak shut off, therefore maximising safety and performance.

超低温单向阀 Cryogenic Check Valves

市场Markets:

Industrial Gas
- 工业气体市场

特点/优势Features / Benefits:

- Unique Parker Bestobell loose flange bolted bonnet design allows for thermal expansion and contraction and eliminates leakage at the bonnet gasket.
- PTFE seal to ensure tight shut off at all times, enhancing safety.
- Quick and easy maintenance of PTFE components
- 派克Bestobell可活动的法兰螺栓盘式阀芯设计，设计充分考虑了允许热膨胀率和收缩率，因此可大幅降低泄漏。
- 聚四氟乙烯密封，在任何时候以实现紧密关闭，提高安全性能。
- 快速方便地维护，聚四氟乙烯部件等维修配件可提供。

应用Applications:

- Transport
- Storage
- Defence
- Processing
- 运输
- 存储
- 防御
- 过程处理

适用于以下气液介质Liquid / Gas Type:

- Oxygen (O2)
- Nitrogen (N2)
- Argon (Ar)
- Carbon Dioxide (CO2)
- Krypton (Kr)
- Neon (Ne)
- Hydrogen (H2)
- Nitrous Oxide (N2O)
- Sulphur Hexafluoride (SF6)
- Natural Gas (CH4)
- Ethylene (C2H4)
- Trifluoromethane (CHF3)
- 氧气（O2）
- 氮气（N2）
- 氩气（Ar）
- 二氧化碳（CO2）
- 氪（Kr）
- 氖（Ne）
- 氢（H2）
- 氮氧化物（N2O）
- 六氟化硫（SF6）
- 天然气（CH4）
- 乙烯（C2H4）
- 三氟甲烷 （CHF3）

Technical Specifications

Cryogenic Check Valves 型号
