Parker 减压阀
Parker Pressure Relief Valves

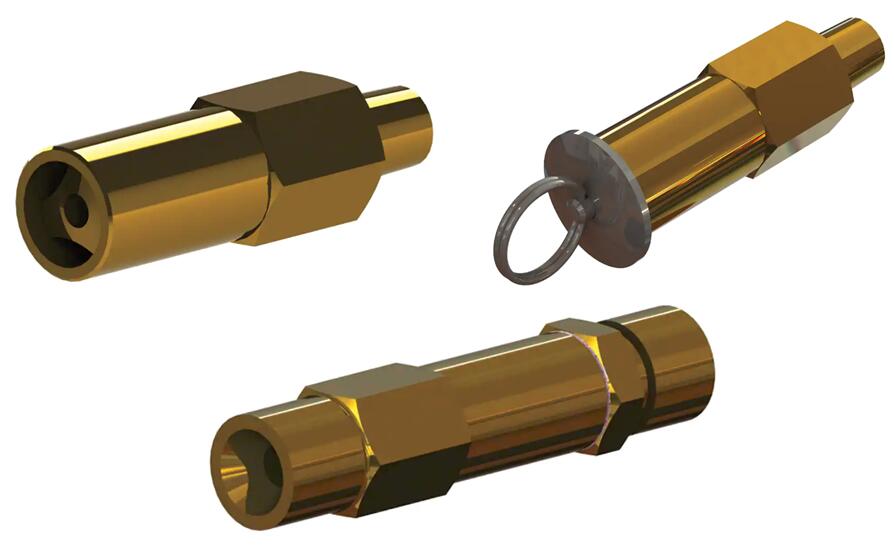

超低温热循环式安全阀Cryogenic Thermal Relief Valve

派克Bestobell的紧凑型超低温安全阀是为了防止液化气汽化成气体膨胀，压力升高引起管道和设备的损坏。 Parker Bestobell's cryogenic thermal relief valve is designed to prevent damage to piping and equipment caused by the expansion of liquefied gases. It prevents liquefied gases being trapped between two closed valves.

派克Bestobell的紧凑型超低温安全阀是为了使液化气不发生汽化成气体膨胀，压力升高引起管道和设备的损坏。这热循环安全阀将在+/-3%额定压力时提升打开。当液化气体被困在两个关闭的阀门之间时（称为液锁），此时介质会汽化可导致压力上升，管道内压力升高比较危险。派克Bestobell热循环阀被设计来不增加压力。 Parker Bestobell's compact cryogenic thermal relief valve is designed to prevent damage to piping and equipment caused by the expansion of liquefied gases. This thermal relief valve will lift at =/- 3% of set pressure rating. When liquefied gases are trapped between two closed valves (known as liquid lock), reheating and boiling can lead to a dangerous rise in pressure. The Parker Bestobell's thermal relief valve has been designed to prevent pressure build up.

其稳定的设计意味着阀不会粘在座位上，即使这个阀门已经有很长时间未使用。当泄放掉膨胀后的气液介质后，该阀门复位正确，从而有效减少了燃气的浪费。它可与多种出口连接，以满足客户的要求。 Its tried and trusted design means that the valve will not stick in its seat, even when it has been left unused for long periods of time. The valve also reseats correctly after venting off the expanding fluid, thus preventing gas wastage. It is available with a variety of outlet connections to suit customer requirements.

超低温热循环式安全阀 Cryogenic Thermal Relief Valve

市场Markets:

- Industrial gas
- 工业气体市场

特点/优势Features / Benefits:

- Accuracy of lifting pressure is +/- 3%
- Reassurance as valve lifts within tight tolerances
- Valve is tight up until 90% of set pressure
- Design allows the valve to reseat correctly after venting off the expanding fluid which prevents wastage of cryogenic gases.
- Valve reseats before 50% of set pressure
- Enhances safety and security
- Designed and engineered for use with Group 1 gases.
- Valve is designed not to stick, even when left unused for long periods of time
- Protects equipment and valves
- Allows for protection of assets
- Offers protection against operator error
- 开启提升压力的正确度是+/- 3%
- 阀门的开启提升压力公差范围比较小
- 阀门再次密封关闭的压力为设定压力的90%
- 泄放扩大的气液介质后，设计使得阀门复位正确，使不发生低温气体浪费
- 阀门在设定压力的50% 时开始复位关闭
- 加强安全和安保
- 设计和设计与以组气体一起使用
- 阀门的阀座设计不会粘连，即使在很长一段时间没有使用，也能正常开闭
- 保护设备和阀门
- 有效保护资产
- 提供预防操作员错误操作的保护

应用Applications:

- Transport
- Storage
- Defence
- Processing
- 运输
- 存储
- 防御
- 过程处理

Technical Specifications

Cryogenic Thermal Relief Valve 型号
