Parker 球阀
Parker Ball Valves

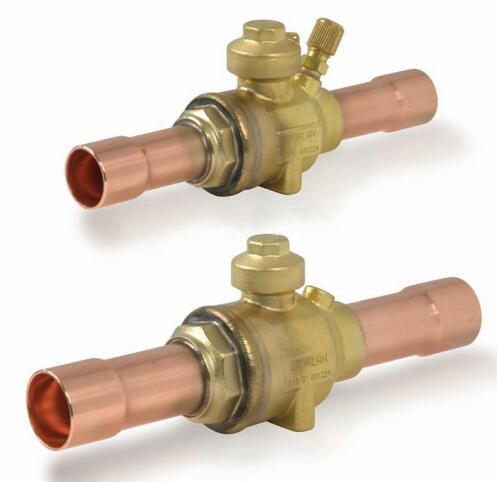

EBV球阀 Isolation Ball Valves - Sporlan EBV Series

Sporlan 截止球阀设计用于空调制冷系统，其保证制冷剂流动的双向截止，即使系统在真空状态。Sporlan Isolation Ball Valves are designed for use on Air Conditioning and Refrigeration units. They ensure positive shut off refrigerant flow in either flow direction, even during system evacuation.

Sporlan球阀为焊接接口，每一件产品皆通过出厂测试，以获得产品免泄漏性能。双特氟龙密封件包裹着抛光的黄铜球形阀芯以免于泄露。阀体配置的内部卸压口设计使任一方向流动皆可切断，即使是在抽真空状态。所有球阀皆可双向应用，并可任意位置安装。The Sporlan Ball Valve is a welded body joint that is factory tested to ensure positive leak-free performance. Dual Teflon seals surrounds the polished, brass ball to prevent leakages. There is an internal relief port design that ensures positive shut off of the valve in either flow direction, even during system evacuation. All Ball valves are bi-directional and may be installed in any position.

EBV 球阀 Isolation Ball Valves - Sporlan EBV Series

市场Markets:

- Air Conditioning
- Refrigeration – Food Retail
- Transportation
- Industrial – Food Storage units
- 空调
- 制冷 – 食品冷链
- 运输
- 工业 – 食品冷藏

特点/优势Features/Benefits:

- Welded body joint. Factory tested to ensure positive leak free performance.
- Full port sizes for unrestricted flow.
- Dual teflon seals to prevent leakage.
- Bottom loaded stem for safety.
- Ball internal relief port design.
- Design working pressure of 700 psi (49 bar)
- 焊接接口，出厂测试以获得产品免泄漏性能
- 全尺寸通径适于无限制流动
- 双特氟龙密封免于泄露
- 底部加载阀杆有效提高安全
- ’内部卸压口设计
- 设计工作压力 700psi（49bar）

应用Applications:

- Heat Pumps
- Supermarket cases and rack systems, Food and Beverage units
- Air Conditioning – Residential, Commercial, Chillers
- Transportation – Units on Truck/Trailer, Bus and Vans
- Refrigerant systems - Liquid lines, suction lines, discharge lines
- 热泵
- 超市冷柜及机组，食品饮料机组
- 空调 – 家用，商用，冷水机组
- 运输 – 卡车/拖车/巴士/货车用机组
- 制冷系统 – 液管、吸气管、排气管

Technical Specifications

Isolation Ball Valves - Sporlan EBV Series 型号
