Parker 针阀
Parker Needle Valves

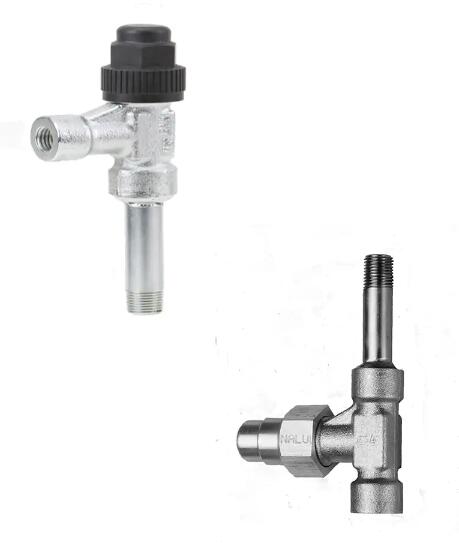

表阀 V2-V3 Gauge Valve V2-V3

Parker V2 和 V3系列手阀为全钢阀体,紧凑型设计。主要用作表阀(V2)和排污阀(V3)。 Parker's V2 and V3, rugged, all steel bodied, tiny hand valves are designed to seat tight and permit isolation of small system components. They are primarily used as gauge (V2) and drain (V3) valves.





派克 V2和V3系列手阀是一个紧凑,经济的解决方案,用于仪表的隔离和部件的排污等应用。此阀配置不可拆卸的不锈钢阀杆和电镀阀体,以实现运行寿命和系统安全。此系列阀可提供多种型式,包括直通或直角阀体,MPT或FPT接口,并由加长接口的选项。这种灵活性是V2和V3阀适用于宽广的应用范围,包括仪表的隔离,排气点设置,远端先导控制以及系统排污等功能。 Parker's V2 and V3 small hand valves are a compact and economical solution for gauge isolation and component draining applications. These valves feature non-removable stainless steel stems and a plated housing for enhanced operating life and system safety. These valves are available in many different configurations including straight or angled bodies, MPT or FPT connections, and various extended lengths. This flexibility makes the V2 and V3 suitable for a wide variety of applications including gauge isolation, purge points, remote pilot control, and system draining functions.

市场Markets:

- Industrial Refrigeration
- Commercial Refrigeration
- 工业制冷
- 商用制冷



特点和优势Features and Benefits:

- ASTM Forged Steel Body
- Design Pressure 450 PSIG (PS), 32 bar
- Fluid Temperature Range -40°F to 240°F
- Stainless Steel Stem
- Options: Angle or Globe Body, Extended connection lengths
- ASTM锻钢阀体
- 设计压力(MRP): 32Bar (450 psi)
- 介质温度范围 -40°F 至 240°F
- 不锈钢阀杆
- 选项: 直角或直通阀体, 加长接口



应用Applications:

- Gauge valve
- Service valve
- Pipe line components
- 表阀
- 维修阀
- 管路部件







Technical Specifications

Model Number: Please Configure Part for Model Number
Maximum Operating Pressure: 32 bar, 450 psig
Minimum Fluid Temperature: -40 °F
Maximum Fluid Temperature: 240 °F
Inlet Connection Size: FPT, MPT, FPT *accepts 3/8" OD tube, 3-1/4" Ext. MPT, 2-1/2" Ext. MPT, 3-3/4" Ext. MPT, 5-1/4" Ext. MPT, 4" Ext. MPT, 5" Ext. MPT, 8-1/2" Ext. MPT
Product Type: V2 or V3
Valve Configuration: Angle or Globe
Materials of Construction: Body: Forged Steel, ATSM A105 C 1029 Zinc Plated~ Seal Cap: Aluminum~ Packing Nut: Steel~ Stem: Stainless steel, 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene or Body: Forged Steel, ATSM A105 C 1029 Zinc Plated~ Seal Cap: Plas



Gauge Valve V2-V3 型号

Part Inlet Connection Type Valve Configuration Type Material
106619 FPT V2 Angle Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Aluminum~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
106620 MPT V2 Angle Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Aluminum~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
106621 FPT V2 Globe Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Aluminum~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
106623 MPT V3 Angle Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Aluminum~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
106625 FPT *accepts 3/8" OD tube V3 Angle Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Aluminum~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
106626 FPT *accepts 3/8" OD tube V3 Globe Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Aluminum~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
106627 3-1/4" Ext. MPT V3 Globe Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Aluminum~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
106628 3-1/4" Ext. MPT V3 Angle Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Aluminum~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
106629 2-1/2" Ext. MPT V2 Angle Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Aluminum~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
106630 3-1/4" Ext. MPT V2 Angle Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Aluminum~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
106631 3-3/4" Ext. MPT V2 Angle Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Aluminum~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
106632 5-1/4" Ext. MPT V2 Angle Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Aluminum~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
106636 2-1/2" Ext. MPT V2 Globe Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Aluminum~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
106639 5-1/4" Ext. MPT V2 Globe Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Aluminum~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
106643 4" Ext. MPT V3 Angle Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Aluminum~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
106644 5" Ext. MPT V3 Angle Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Aluminum~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
106648 4" Ext. MPT V3 Globe Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Aluminum~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
107014 FPT V2 Angle Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Plastic~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
107015 MPT V2 Angle Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Plastic~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
107016 FPT V2 Globe Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Plastic~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
107017 2-1/2" Ext. MPT V2 Angle Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Plastic~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
107018 3-1/4" Ext. MPT V2 Angle Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Plastic~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
107019 3-3/4" Ext. MPT V2 Angle Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Plastic~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
107020 5-1/4" Ext. MPT V2 Angle Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Plastic~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
107024 2-1/2" Ext. MPT V2 Globe Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Plastic~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
107025 3-1/4" Ext. MPT V2 Globe Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Plastic~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
107026 3-3/4" Ext. MPT V2 Globe Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Plastic~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
107027 5-1/4" Ext. MPT V2 Globe Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Plastic~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
107030 8-1/2" Ext. MPT V2 Globe Body: Forged Steel- ATSM A105 C 1029 Zinc Plated~ Seal Cap: Plastic~ Packing Nut: Steel~ Stem: Stainless steel- 1/4" square flats~ Stem Packing: Graphite base~ Seal Cap O- Ring: Neoprene
