Parker 仪表阀
Parker Instrumentation Valves

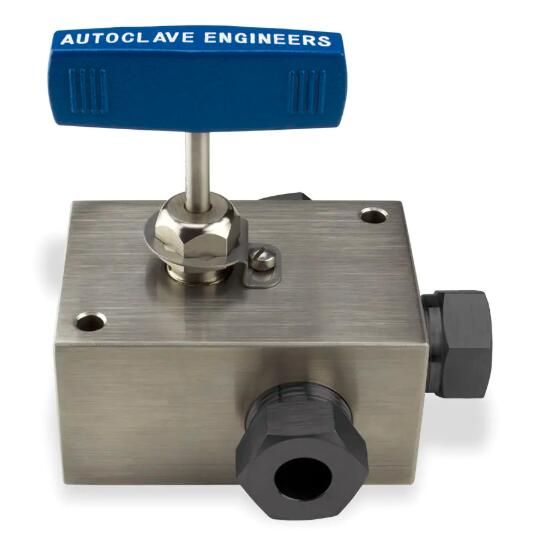

高压压力表阀 - MPGV系列 Gauge Valve,High Pressure - MPGV Series

派克的MPGV系列阀门是为系统可达30,000 psi的应用设计。316不锈钢棒材压力表阀用于控制流体关闭，调节流量，在多数的高压液压与气动系统上实现换向功能。 Parker's MPGV Series Gauge Valves are designed for reliable shut-off service at a maximum working pressure of 30000 psi (2068 bar) with metal to metal, bubble tight shut -off performance.

派克的MPGV系列阀门是为系统高达30,000 psi的应用设计。316不锈钢棒材压力表阀用于控制流体关闭，调节流量，在多数的高压液压与气动系统上实现换向功能。当不使用时，压力表阀将通过提供隔离关断来增加系统压力表的寿命（可被读取的压力表）。 派克压力表阀提供安装在螺纹下面的填料设计和两段式非旋转阀杆设计，以提高阀门在超越常用压力表阀的循环寿命。 Parker's MPGV Series Gauge Valves are designed for systems up to 30,000 PSI. These 316 stainless steel barstock gauge valves are used to control flow by shut off, regulation, and diversion in all high pressure hydraulic and pneumatic systems. A gauge valve will increase the life of a system's pressure gauge by providing isolation when not in use (being read). Parker Gauge Valves offer the installer packing below the threads and a two piece, non-rotating stem to increase the valves cycle life over basic gauge valves.


市场Markets:

- Power
- Chemical/Petrochemical
- Offshore
- 电厂
- 化学/石化
- 离岸平台

特点/优势Features/Benefits:

- One inlet, three outlet ports
- Metal-to-metal bubble tight shut-off
- Packing below stem threads
- Two piece non-rotating stem on standard valves
- 一个入口，三个出口端口
- 金属对金属的密封
- 阀杆螺纹位于填料上方
- 压力表阀上的两段式非旋转阀杆

应用Applications:

- Sample Lines
- Instrumentation Calibration
- Hydraulic systems
- 取样管线
- 仪器校准系统
- 液压系统

Technical Specifications

Gauge Valve,High Pressure - MPGV Series 型号
