Parker 针阀
Parker Needle Valves

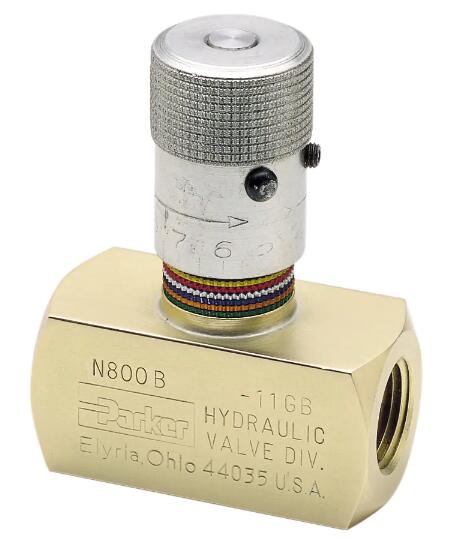

N 系列通用管式针阀 In-Line General Purpose Needle Valve – N Series

N系列液压流量控制，串联针型阀可双向测量流量或提供可靠的截止。 该针阀流量控制用于空气和机油应用，并具有标准和精细计量选项。 The N series of hydraulic flow control, in-line needle valves meters flow in both directions or provides a reliable shut off. This needle valve flow control is used in air and oil applications and has standard and fine metering options.





派克的N系列阀是一种两步针阀，可通过使用调节旋钮的前三圈在低流量下进行精细调节。接下来的三圈将阀门打开至全流量，并提供标准的节流调节。Parker's N series valve is a two-step needle that allows fine adjustment at low flow by using the first three turns of the adjusting knob. The next three turns open the valve to full flow and provides standard throttling adjustments.





N 系列通用管式针阀 In-Line General Purpose Needle Valve – N Series







市场Markets:

- Factory Automation
- Machine Tools
- Marine
- Material Handling
- Mining
- Miscellaneous Industrial
- Miscellaneous Manufacturing
- Molding
- Oil &Gas
- Power Generation
- Vehicle Assembly Facilities
-工厂自动化
-机床
-船舶
-物料搬运
-采矿
-杂项工业
-杂项制造
-成型
-石油和天然气
-发电
-车辆组装设施



特点/优势Features/Benefits:

- Tamperproof option available
- Set screw locks the valve on a desired setting
- Port sizes available in 8 sizes from 1/8” to 1 1/4”
- Material offerings are brass, steel and stainless steel
- Port options include ISO 6149, NPT, BSPP, BSPT and SAE
- The exclusive “Colorflow” color-band provide an accurate visual indication of setting
-提供防篡改选件
-固定螺钉将阀门锁定在所需位置设置
-端口尺寸提供1/8“至1 1/4”的8种尺寸
-提供的材料有黄铜，钢和不锈钢
-端口选项包括ISO 6149，NPT，BSPP，BSPT和SAE
-专有的“ Colorflow”色带可提供设置的准确视觉指示



应用Applications:

- Suitable for general hydraulic applications
-适用于一般液压应用



Technical Specifications

Product Style: Needle Valve
Connection Type: Female - Female
Maximum Flow Rate: 30, 57, 95, 151, 264, 11, 19 L/min, 8, 15, 25, 40, 70, 3, 5 Gal/min
Maximum Operating Pressure: 5000, 2000, 500, 3000 psi
Maximum Operating Temperature: +250, +400 °F, +121, +205 °C
Minimum Operating Temperature: -40°, -15° °F, -40°, -26° °C
Mounting Type: Inline
Brand: Colorflow
Media: Hydraulic Oil and Air



In-Line General Purpose Needle Valve – N Series 型号

Part Thread Type Seal Material Knob Option Needle option Valve Body Material Port Size
8N600S BSPT Nitrile Standard Knob Standard Steel 3/8
8N800B BSPT Nitrile Standard Knob Standard Brass 1/2
8N800S BSPT Nitrile Standard Knob Standard Steel 1/2
9N1200B BSPP Nitrile Standard Knob Standard Brass 12
9N1200B-V BSPP Fluorocarbon Standard Knob Standard Brass 12
9N1200BF BSPP Nitrile Finger Screw Standard Brass 12
9N1200BF-V BSPP Fluorocarbon Finger Screw Standard Brass 12
9N1200S BSPP Nitrile Standard Knob Standard Steel 12
9N1200S-V BSPP Fluorocarbon Standard Knob Standard Steel 12
9N1200SF BSPP Nitrile Finger Screw Standard Steel 12
9N1200SF-V BSPP Fluorocarbon Finger Screw Standard Steel 12
9N1200ST BSPP Nitrile Tamperproof Standard Steel 12
9N1600B BSPP Nitrile Standard Knob Standard Brass 1
9N1600B-V BSPP Fluorocarbon Standard Knob Standard Brass 1
9N1600BF BSPP Nitrile Finger Screw Standard Brass 1
9N1600S BSPP Nitrile Standard Knob Standard Steel 1
9N1600S-V BSPP Fluorocarbon Standard Knob Standard Steel 1
9N1600SF BSPP Nitrile Finger Screw Standard Steel 1
9N1600SF-V BSPP Fluorocarbon Finger Screw Standard Steel 1
9N2000S BSPP Nitrile Standard Knob Standard Steel 1-1/4
9N2000S-V BSPP Fluorocarbon Standard Knob Standard Steel 1-1/4
9N200B BSPP Nitrile Standard Knob Standard Brass 1/8
9N200B-V BSPP Fluorocarbon Standard Knob Standard Brass 1/8
9N200B4 BSPP Nitrile Standard Knob Fine Metering Brass 1/8
9N200BF BSPP Nitrile Finger Screw Standard Brass 1/8
9N200BF-V BSPP Fluorocarbon Finger Screw Standard Brass 1/8
9N200S BSPP Nitrile Standard Knob Standard Steel 1/8
9N200S-V BSPP Fluorocarbon Standard Knob Standard Steel 1/8
9N200S4 BSPP Nitrile Standard Knob Fine Metering Steel 1/8
9N200S4F BSPP Nitrile Finger Screw Fine Metering Steel 1/8
9N200S4F-V BSPP Fluorocarbon Finger Screw Fine Metering Steel 1/8
9N200S4T BSPP Nitrile Tamperproof Fine Metering Steel 1/8
9N200SF BSPP Nitrile Finger Screw Standard Steel 1/8
9N200SF-V BSPP Fluorocarbon Finger Screw Standard Steel 1/8
9N400B BSPP Nitrile Standard Knob Standard Brass 1/4
9N400B-V BSPP Fluorocarbon Standard Knob Standard Brass 1/4
9N400B4 BSPP Nitrile Standard Knob Fine Metering Brass 1/4
9N400B4F BSPP Nitrile Finger Screw Fine Metering Brass 1/4
9N400BF BSPP Nitrile Finger Screw Standard Brass 1/4
9N400BF-V BSPP Fluorocarbon Finger Screw Standard Brass 1/4
9N400BT BSPP Nitrile Tamperproof Standard Brass 1/4
9N400S BSPP Nitrile Standard Knob Standard Steel 1/4
9N400S-V BSPP Fluorocarbon Standard Knob Standard Steel 1/4
9N400S4 BSPP Nitrile Standard Knob Fine Metering Steel 1/4
9N400S4F BSPP Nitrile Finger Screw Fine Metering Steel 1/4
9N400S4F-V BSPP Fluorocarbon Finger Screw Fine Metering Steel 1/4
9N400SF BSPP Nitrile Finger Screw Standard Steel 1/4
9N400SF-V BSPP Fluorocarbon Finger Screw Standard Steel 1/4
9N400SS BSPP Nitrile Standard Knob Standard 303 Stainless Steel 1/4
9N400ST BSPP Nitrile Tamperproof Standard Steel 1/4
9N600B BSPP Nitrile Standard Knob Standard Brass 3/8
9N600B-V BSPP Fluorocarbon Standard Knob Standard Brass 3/8
9N600BF BSPP Nitrile Finger Screw Standard Brass 3/8
9N600BF-V BSPP Fluorocarbon Finger Screw Standard Brass 3/8
9N600BT BSPP Nitrile Tamperproof Standard Brass 3/8
9N600S BSPP Nitrile Standard Knob Standard Steel 3/8
9N600S-V BSPP Fluorocarbon Standard Knob Standard Steel 3/8
9N600S4 BSPP Nitrile Standard Knob Fine Metering Steel 3/8
9N600S4-V BSPP Fluorocarbon Standard Knob Fine Metering Steel 3/8
9N600S4F BSPP Nitrile Finger Screw Fine Metering Steel 3/8
9N600SF BSPP Nitrile Finger Screw Standard Steel 3/8
9N600SF-V BSPP Fluorocarbon Finger Screw Standard Steel 3/8
9N600SS BSPP Nitrile Standard Knob Standard 303 Stainless Steel 3/8
9N600ST BSPP Nitrile Tamperproof Standard Steel 3/8
9N800B BSPP Nitrile Standard Knob Standard Brass 1/2
9N800B-V BSPP Fluorocarbon Standard Knob Standard Brass 1/2
9N800BF BSPP Nitrile Finger Screw Standard Brass 1/2
9N800BF-V BSPP Fluorocarbon Finger Screw Standard Brass 1/2
9N800S BSPP Nitrile Standard Knob Standard Steel 1/2
9N800S-V BSPP Fluorocarbon Standard Knob Standard Steel 1/2
9N800SF BSPP Nitrile Finger Screw Standard Steel 1/2
9N800SF-V BSPP Fluorocarbon Finger Screw Standard Steel 1/2
9N800SS BSPP Nitrile Standard Knob Standard 303 Stainless Steel 1/2
9N800ST BSPP Nitrile Tamperproof Standard Steel 1/2
N1020S SAE Nitrile Standard Knob Standard Steel 10
N1020S-F SAE Nitrile Finger Screw Standard Steel 10
N1020S-V SAE Fluorocarbon Standard Knob Standard Steel 10
N1200B NPT Nitrile Standard Knob Standard Brass 12
N1200B-V NPT Fluorocarbon Standard Knob Standard Brass 12
N1200BF NPT Nitrile Finger Screw Standard Brass 12
N1200BF-V NPT Fluorocarbon Finger Screw Standard Brass 12
N1200BT NPT Nitrile Tamperproof Standard Brass 12
N1200BT-V NPT Fluorocarbon Tamperproof Standard Brass 12
N1200S NPT Nitrile Standard Knob Standard Steel 12
N1200S-V NPT Fluorocarbon Standard Knob Standard Steel 12
N1200SF NPT Nitrile Finger Screw Standard Steel 12
N1200SF-V NPT Fluorocarbon Finger Screw Standard Steel 12
N1200ST NPT Nitrile Tamperproof Standard Steel 12
N1200ST-V NPT Fluorocarbon Tamperproof Standard Steel 12
N1220S SAE Nitrile Standard Knob Standard Steel 12
N1220S-V SAE Fluorocarbon Standard Knob Standard Steel 12
N1220SF SAE Nitrile Finger Screw Standard Steel 12
N1220SF-V SAE Fluorocarbon Finger Screw Standard Steel 12
N1220ST SAE Nitrile Tamperproof Standard Steel 12
N1220ST-V SAE Fluorocarbon Tamperproof Standard Steel 12
N1600B NPT Nitrile Standard Knob Standard Brass 1
N1600B-V NPT Fluorocarbon Standard Knob Standard Brass 1
N1600BF NPT Nitrile Finger Screw Standard Brass 1
N1600S NPT Nitrile Standard Knob Standard Steel 1
N1600S-V NPT Fluorocarbon Standard Knob Standard Steel 1
N1600SF NPT Nitrile Finger Screw Standard Steel 1
N1600SF-V NPT Fluorocarbon Finger Screw Standard Steel 1
N1620S SAE Nitrile Standard Knob Standard Steel 16
N1620S-V SAE Fluorocarbon Standard Knob Standard Steel 16
N1620SF-V SAE Fluorocarbon Finger Screw Standard Steel 16
N2000S NPT Nitrile Standard Knob Standard Steel 1-1/4
N2000S-F NPT Nitrile Finger Screw Standard Steel 1-1/4
N2000S-V NPT Fluorocarbon Standard Knob Standard Steel 1-1/4
N200B NPT Nitrile Standard Knob Standard Brass 1/8
N200B-V NPT Fluorocarbon Standard Knob Standard Brass 1/8
N200B4 NPT Nitrile Standard Knob Fine Metering Brass 1/8
N200B4F NPT Nitrile Finger Screw Fine Metering Brass 1/8
N200B4F-V NPT Fluorocarbon Finger Screw Fine Metering Brass 1/8
N200B4T NPT Nitrile Tamperproof Fine Metering Brass 1/8
N200BF NPT Nitrile Finger Screw Standard Brass 1/8
N200BT NPT Nitrile Tamperproof Standard Brass 1/8
N200S NPT Nitrile Standard Knob Standard Steel 1/8
N200S-V NPT Fluorocarbon Standard Knob Standard Steel 1/8
N200S4 NPT Nitrile Standard Knob Fine Metering Steel 1/8
N200S4-V NPT Fluorocarbon Standard Knob Fine Metering Steel 1/8
N200S4F NPT Nitrile Finger Screw Fine Metering Steel 1/8
N200SF NPT Nitrile Finger Screw Standard Steel 1/8
N200ST NPT Nitrile Tamperproof Standard Steel 1/8
N2020S SAE Nitrile Standard Knob Standard Steel 20
N2020S-F SAE Nitrile Finger Screw Standard Steel 20
N2020S-V SAE Fluorocarbon Standard Knob Standard Steel 20
N400B NPT Nitrile Standard Knob Standard Brass 1/4
N400B-V NPT Fluorocarbon Standard Knob Standard Brass 1/4
N400B4 NPT Nitrile Standard Knob Fine Metering Brass 1/4
N400B4-V NPT Fluorocarbon Standard Knob Fine Metering Brass 1/4
N400B4F NPT Nitrile Finger Screw Fine Metering Brass 1/4
N400B4T NPT Nitrile Tamperproof Fine Metering Brass 1/4
N400B4T-V NPT Fluorocarbon Tamperproof Fine Metering Brass 1/4
N400BF NPT Nitrile Finger Screw Standard Brass 1/4
N400BT NPT Nitrile Tamperproof Standard Brass 1/4
N400S NPT Nitrile Standard Knob Standard Steel 1/4
N400S-V NPT Fluorocarbon Standard Knob Standard Steel 1/4
N400S4 NPT Nitrile Standard Knob Fine Metering Steel 1/4
N400S4-V NPT Fluorocarbon Standard Knob Fine Metering Steel 1/4
N400S4F NPT Nitrile Finger Screw Fine Metering Steel 1/4
N400S4T NPT Nitrile Tamperproof Fine Metering Steel 1/4
N400S4T-V NPT Fluorocarbon Tamperproof Fine Metering Steel 1/4
N400SF NPT Nitrile Finger Screw Standard Steel 1/4
N400SF-V NPT Fluorocarbon Finger Screw Standard Steel 1/4
N400SS NPT Nitrile Standard Knob Standard 303 Stainless Steel 1/4
N400SS4 NPT Nitrile Standard Knob Fine Metering 303 Stainless Steel 1/4
N400SS4F NPT Nitrile Finger Screw Fine Metering 303 Stainless Steel 1/4
N400SS4T NPT Nitrile Tamperproof Fine Metering 303 Stainless Steel 1/4
N400SSF NPT Nitrile Finger Screw Standard 303 Stainless Steel 1/4
N400SST NPT Nitrile Tamperproof Standard 303 Stainless Steel 1/4
N400ST NPT Nitrile Tamperproof Standard Steel 1/4
N400ST-V NPT Fluorocarbon Tamperproof Standard Steel 1/4
N420B SAE Nitrile Standard Knob Standard Brass 4
N420S SAE Nitrile Standard Knob Standard Steel 4
N420S-V SAE Fluorocarbon Standard Knob Standard Steel 4
N420S4 SAE Nitrile Standard Knob Fine Metering Steel 4
N420S4T SAE Nitrile Tamperproof Fine Metering Steel 4
N420SF SAE Nitrile Finger Screw Standard Steel 4
N420ST SAE Nitrile Tamperproof Standard Steel 4
N600B NPT Nitrile Standard Knob Standard Brass 3/8
N600B-V NPT Fluorocarbon Standard Knob Standard Brass 3/8
N600B4-T NPT Nitrile Tamperproof Fine Metering Brass 3/8
N600B4-V NPT Fluorocarbon Standard Knob Fine Metering Brass 3/8
N600B4F-V NPT Fluorocarbon Finger Screw Fine Metering Brass 3/8
N600BF NPT Nitrile Finger Screw Standard Brass 3/8
N600BT NPT Nitrile Tamperproof Standard Brass 3/8
N600BT-V NPT Fluorocarbon Tamperproof Standard Brass 3/8
N600S NPT Nitrile Standard Knob Standard Steel 3/8
N600S-V NPT Fluorocarbon Standard Knob Standard Steel 3/8
N600S4 NPT Nitrile Standard Knob Fine Metering Steel 3/8
N600S4F NPT Nitrile Finger Screw Fine Metering Steel 3/8
N600S4F-V NPT Fluorocarbon Finger Screw Fine Metering Steel 3/8
N600SF NPT Nitrile Finger Screw Standard Steel 3/8
N600SS NPT Nitrile Standard Knob Standard 303 Stainless Steel 3/8
N600SS4 NPT Nitrile Standard Knob Fine Metering 303 Stainless Steel 3/8
N600SS4T NPT Nitrile Tamperproof Fine Metering 303 Stainless Steel 3/8
N600SST NPT Nitrile Tamperproof Standard 303 Stainless Steel 3/8
N600ST NPT Nitrile Tamperproof Standard Steel 3/8
N600ST-V NPT Fluorocarbon Tamperproof Standard Steel 3/8
N620B SAE Nitrile Standard Knob Standard Brass 6
N620BFV SAE Fluorocarbon Finger Screw Standard Brass 6
N620S SAE Nitrile Standard Knob Standard Steel 6
N620S-V SAE Fluorocarbon Standard Knob Standard Steel 6
N620S4 SAE Nitrile Standard Knob Fine Metering Steel 6
N620S4-V SAE Fluorocarbon Standard Knob Fine Metering Steel 6
N620S4F SAE Nitrile Finger Screw Fine Metering Steel 6
N620S4T SAE Nitrile Tamperproof Fine Metering Steel 6
N620S4T-V SAE Fluorocarbon Tamperproof Fine Metering Steel 6
N620SF SAE Nitrile Finger Screw Standard Steel 6
N620ST SAE Nitrile Tamperproof Standard Steel 6
N620ST-V SAE Fluorocarbon Tamperproof Standard Steel 6
N800B NPT Nitrile Standard Knob Standard Brass 1/2
N800B-V NPT Fluorocarbon Standard Knob Standard Brass 1/2
N800BF NPT Nitrile Finger Screw Standard Brass 1/2
N800BT NPT Nitrile Tamperproof Standard Brass 1/2
N800BT-V NPT Fluorocarbon Tamperproof Standard Brass 1/2
N800S NPT Nitrile Standard Knob Standard Steel 1/2
N800S-V NPT Fluorocarbon Standard Knob Standard Steel 1/2
N800SF NPT Nitrile Finger Screw Standard Steel 1/2
N800SF-V NPT Fluorocarbon Finger Screw Standard Steel 1/2
N800SS NPT Nitrile Standard Knob Standard 303 Stainless Steel 1/2
N800SST NPT Nitrile Tamperproof Standard 303 Stainless Steel 1/2
N800ST NPT Nitrile Tamperproof Standard Steel 1/2
N800ST-V NPT Fluorocarbon Tamperproof Standard Steel 1/2
N820B SAE Nitrile Standard Knob Standard Brass 8
N820BF-V SAE Fluorocarbon Finger Screw Standard Brass 8
N820BT SAE Nitrile Tamperproof Standard Brass 8
N820S SAE Nitrile Standard Knob Standard Steel 8
N820S-V SAE Fluorocarbon Standard Knob Standard Steel 8
N820S4 SAE Nitrile Standard Knob Fine Metering Steel 8
N820S4-V SAE Fluorocarbon Standard Knob Fine Metering Steel 8
N820S4F SAE Nitrile Finger Screw Fine Metering Steel 8
N820SF SAE Nitrile Finger Screw Standard Steel 8
N820SF-V SAE Fluorocarbon Finger Screw Standard Steel 8
N820ST SAE Nitrile Tamperproof Standard Steel 8
N820ST-V SAE Fluorocarbon Tamperproof Standard Steel 8








美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology

E-mail：sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 101 22694 | 139 1096 2635
Http：//www.cnmec.biz
传真：010-8428 8762


京ICP备08000876号-8
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
