Parker 球阀
Parker Ball Valves

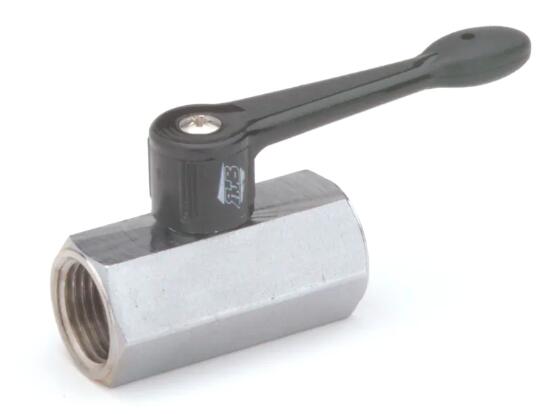

工业球阀-镀铬黄铜球阀Industrial Ball Valves - Chrome Plated Brass Ball Valves
派克的镀铬黄铜球阀旨在以经济的价格提供多年的服务，并且具有各种终端配置和选件。Parker's chrome plated brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.
派克的工业镀铬黄铜球阀旨在以经济的价格提供多年的服务。 专为商业和一般工业应用而制造。
Parker's industrial chrome plated brass ball valves are designed to provide years of service at an economical price. Manufactured for commercial and general industrial applications.
Technical Specifications
| Minimum Operating Temperature: |
0 °F, -17 °C |
| Maximum Operating Temperature: |
200 °F, 93 °C |
| Connection Type: |
NPT |
| Body Material: |
Chrome Plated Brass |
| Ball Material: |
Chrome Plated Brass |
| Seat Material: |
PTFE |
| Lock Type: |
Non-Locking |
Industrial Ball Valves - Chrome Plated Brass Ball Valves 型号
| Part |
Maximum Working Pressure (Bar) |
Style |
Handle |
Vacuum Rating (inch of Hg) |
Maximum Working Pressure (psi) |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
| MV200-2 |
13.7 |
Female Pipe Ends |
Polyamide Lever |
na |
200 |
1/8 |
Female Pipe |
1/8 |
Female Pipe |
| MV200-4 |
13.7 |
Female Pipe Ends |
Polyamide Lever |
na |
200 |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
| MV200-6 |
13.7 |
Female Pipe Ends |
Polyamide Lever |
na |
200 |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
| MV200-8 |
13.7 |
Female Pipe Ends |
Polyamide Lever |
na |
200 |
1/2 |
Female Pipe |
1/2 |
Female Pipe |

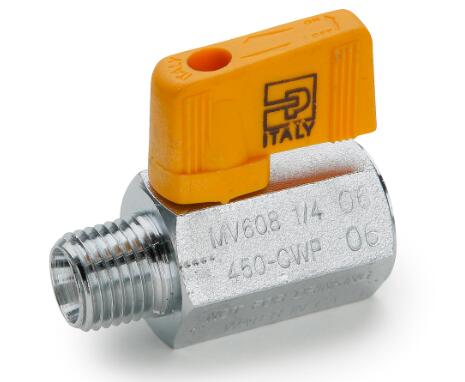

| MV608-2 |
31 |
Male to Female Pipe Ends |
Polyamide Wedge Lever |
28 |
450 |
1/8 |
Male Pipe |
1/8 |
Female Pipe |
| MV608-4 |
31 |
Male to Female Pipe Ends |
Polyamide Wedge Lever |
28 |
450 |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
| MV608-6 |
31 |
Male to Female Pipe Ends |
Polyamide Wedge Lever |
28 |
450 |
3/8 |
Male Pipe |
3/8 |
Female Pipe |
| MV608-8 |
31 |
Male to Female Pipe Ends |
Polyamide Wedge Lever |
28 |
450 |
1/2 |
Male Pipe |
1/2 |
Female Pipe |
| MV609-2 |
31 |
Female Pipe Ends |
Polyamide Wedge Lever |
28 |
450 |
1/8 |
Female Pipe |
1/8 |
Female Pipe |
| MV609-4 |
31 |
Female Pipe Ends |
Polyamide Wedge Lever |
28 |
450 |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
| MV609-6 |
31 |
Female Pipe Ends |
Polyamide Wedge Lever |
28 |
450 |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
| MV609-6-4 |
31 |
Female Pipe Ends |
Polyamide Wedge Lever |
28 |
450 |
3/8 x 1/4 |
Female Pipe |
3/8 x 1/4 |
Female Pipe |
| MV609-8 |
31 |
Female Pipe Ends |
Polyamide Wedge Lever |
28 |
450 |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
|
