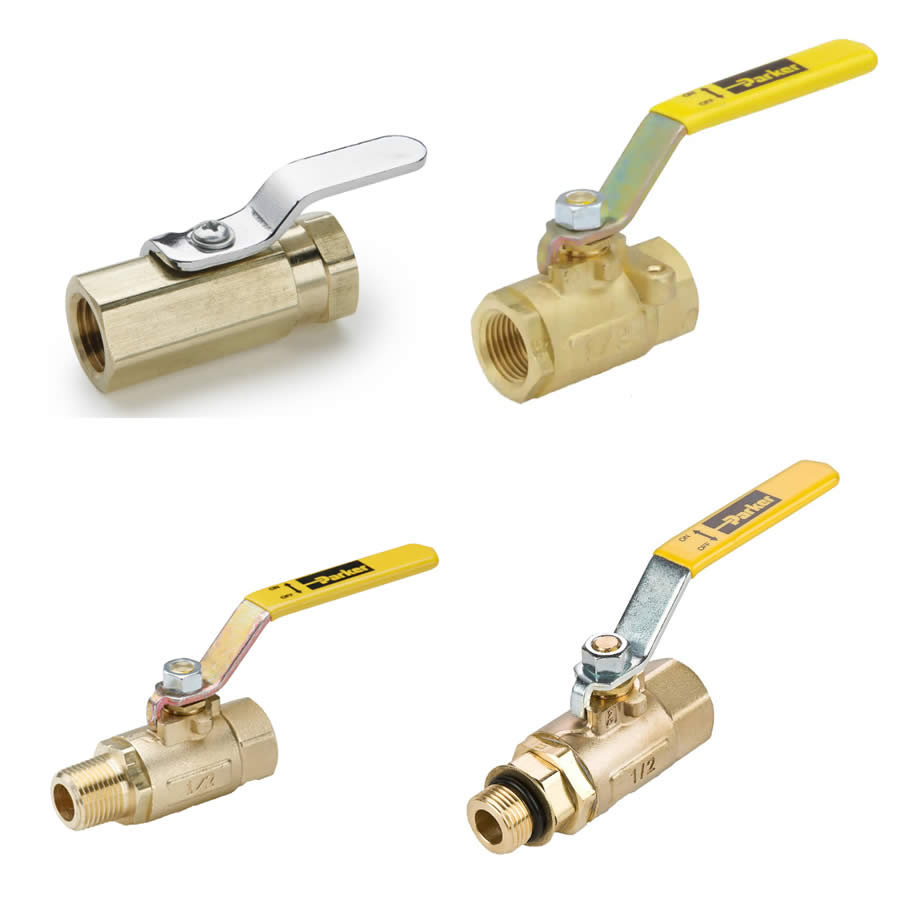

派克黄铜球阀，经济耐用，并提供多种连接方式及选项。Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.
派克的工业黄铜球阀以经济实惠的价格为广大用户提供服务。这些阀门，适用于商业或一般工业应用，提供了轻型一次门所无法超越的优异性能。这些球阀应用于全开或全闭位置。阀的节流性能可能会导致过早的密封失效和/或无法转动阀门手柄。Parker's industrial brass ball valves are designed to provide years of service at an economical price. Manufactured for commercial and general industrial applications these valves offer increased performance over lightweight throwaway valves. These ball valves are intended for use in the fully open or closed positions. Throttling of the valve may result in premature seal failure and/or inability to turn the valve handle.
| Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Connection 1 Solder O.D. (inch) |
Connection 2 Solder O.D. (inch) |
Handle |
Locking Mechanism |
Vented |
| MV708-2 |
500 |
Male to Female |
In Line |
1/8 |
Male Pipe |
1/8 |
Female Pipe |
na |
na |
Chrome Plated Steel |
Non-Locking |
No |
| MV708-4 |
500 |
Male to Female |
In Line |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
na |
na |
Chrome Plated Steel |
Non-Locking |
No |
| MV709-2 |
500 |
Female to Female |
In Line |
1/8 |
Female Pipe |
1/8 |
Female Pipe |
na |
na |
Chrome Plated Steel |
Non-Locking |
No |
| MV709-4 |
500 |
Female to Female |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Chrome Plated Steel |
Non-Locking |
No |
| V500P-12 |
600 |
Female to Female |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V500P-12-04 |
600 |
Female to Female |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
| V500P-12-16HB |
150 |
Female to Hose Barb |
In Line |
1 |
Hose Barb |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V500P-12-21 |
600 |
Female to Female |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
| V500P-16 |
600 |
Female to Female |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V500P-16-04 |
600 |
Female to Female |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
| V500P-20 |
600 |
Female to Female |
In Line |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V500P-24 |
600 |
Female to Female |
In Line |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V500P-32 |
600 |
Female to Female |
In Line |
2 |
Female Pipe |
2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V500P-4 |
600 |
Female to Female |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V500P-4-04 |
600 |
Female to Female |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
| V500P-6 |
600 |
Female to Female |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V500P-6-04 |
600 |
Female to Female |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
| V500P-8 |
600 |
Female to Female |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V500P-8-02 |
600 |
Female to Female |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Stainless Steel Handle |
Non-Locking |
No |
| V500P-8-04 |
600 |
Female to Female |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
| V501P-12 |
600 |
Female to Male |
In Line |
3/4 |
Male Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V501P-12-04 |
600 |
Female to Male |
In Line |
3/4 |
Male Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
| V501P-12-21 |
600 |
Female to Male |
In Line |
3/4 |
Male Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
| V501P-16 |
600 |
Female to Male |
In Line |
1 |
Male Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V501P-16-04 |
600 |
Female to Male |
In Line |
1 |
Male Pipe |
1 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
| V501P-16-21 |
600 |
Female to Male |
In Line |
1 |
Male Pipe |
1 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
| V501P-4 |
600 |
Female to Male |
In Line |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V501P-4-04 |
600 |
Female to Male |
In Line |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
| V501P-4-21 |
600 |
Female to Male |
In Line |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
| V501P-6 |
600 |
Female to Male |
In Line |
3/8 |
Male Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V501P-6-04 |
600 |
Female to Male |
In Line |
3/8 |
Male Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
| V501P-6-21 |
600 |
Female to Male |
In Line |
3/8 |
Male Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
| V501P-8 |
600 |
Female to Male |
In Line |
1/2 |
Male Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V501P-8-04 |
600 |
Female to Male |
In Line |
1/2 |
Male Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
| V501P-8-21 |
600 |
Female to Male |
In Line |
1/2 |
Male Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
| V502P-12 |
600 |
Female to Female |
Panel Mount |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V502P-12-04 |
600 |
Female to Female |
Panel Mount |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
| V502P-12-21 |
600 |
Female to Female |
Panel Mount |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
| V502P-12-ACT |
600 |
Female to Female |
Panel Mount |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
| V502P-12-SUB |
150 |
Female to Female |
Panel Mount Sub Assembly |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
| V502P-16 |
600 |
Female to Female |
Panel Mount |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V502P-16-04 |
600 |
Female to Female |
Panel Mount |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
| V502P-16-21 |
600 |
Female to Female |
Panel Mount |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
| V502P-16-ACT |
600 |
Female to Female |
Panel Mount |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
| V502P-16-SUB |
150 |
Female to Female |
Panel Mount Sub Assembly |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
| V502P-4 |
600 |
Female to Female |
Panel Mount |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V502P-4-04 |
600 |
Female to Female |
Panel Mount |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
| V502P-4-21 |
600 |
Female to Female |
Panel Mount |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
| V502P-4-ACT |
150 |
Female to Female |
Panel Mount |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
| V502P-4-SUB |
150 |
Female to Female |
Panel Mount Sub Assembly |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
| V502P-6 |
600 |
Female to Female |
Panel Mount |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V502P-6-04 |
600 |
Female to Female |
Panel Mount |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
| V502P-6-21 |
600 |
Female to Female |
Panel Mount |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
| V502P-6-ACT |
150 |
Female to Female |
Panel Mount |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
| V502P-6-SUB |
150 |
Female to Female |
Panel Mount Sub Assembly |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
| V502P-8 |
600 |
Female to Female |
Panel Mount |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V502P-8-04 |
600 |
Female to Female |
Panel Mount |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
| V502P-8-08 |
600 |
Female to Female |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Unmarked Yellow Vinyl Handle Cover |
Non-Locking |
No |
| V502P-8-21 |
600 |
Female to Female |
Panel Mount |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
| V502P-8-ACT |
150 |
Female to Female |
Panel Mount |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
| V502P-8-SUB |
150 |
Female to Female |
Panel Mount Sub Assembly |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
| V506P-12 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
1 1/16-12 |
Female Straight Thread |
1 1/16-12 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
| V506P-16 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
1 5/16-12 |
Female Straight Thread |
1 5/16-12 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
| V506P-20 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
1 5/8-12 |
Female Straight Thread |
1 5/8-12 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
| V506P-24 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
1 7/8-12 |
Female Straight Thread |
1 7/8-12 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
| V506P-32 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
2 1/2-12 |
Female Straight Thread |
2 1/2-12 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
| V506P-4 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
7/16-20 |
Female Straight Thread |
7/16-20 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
| V506P-6 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
9/16-18 |
Female Straight Thread |
9/16-18 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
| V506P-6-04 |
600 |
Female to Female |
In Line |
9/16-18 |
Female Pipe |
9/16-18 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
| V506P-8 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
3/4-16 |
Female Straight Thread |
3/4-16 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
| V509P-12 |
600 |
Solder to Solder |
In Line |
na |
Solder |
na |
Solder |
3/4 |
3/4 |
Steel Lever |
Non-Locking |
No |
| V509P-16 |
600 |
Solder to Solder |
In Line |
na |
Solder |
na |
Solder |
1 |
1 |
Steel Lever |
Non-Locking |
No |
| V509P-20 |
600 |
Solder to Solder |
In Line |
na |
Solder |
na |
Solder |
1 1/4 |
1 1/4 |
Steel Lever |
Non-Locking |
No |
| V509P-24 |
600 |
Solder to Solder |
In Line |
na |
Solder |
na |
Solder |
1 1/2 |
1 1/2 |
Steel Lever |
Non-Locking |
No |
| V509P-32 |
600 |
Solder to Solder |
In Line |
na |
Solder |
na |
Solder |
2 |
2 |
Steel Lever |
Non-Locking |
No |
| V509P-8 |
600 |
Solder to Solder |
In Line |
na |
Solder |
na |
Solder |
1/2 |
1/2 |
Steel Lever |
Non-Locking |
No |
| V510P-10 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
7/8-14 |
Female Straight thread |
7/8-14 |
Male Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
| V510P-10-04 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
7/8-14 |
Female Straight thread |
7/8-14 |
Male Straight Thread |
na |
na |
Steel Tee |
Non-Locking |
No |
| V510P-12 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
1 1/16-12 |
Female Straight thread |
1 1/16-12 |
Male Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
| V510P-12-04 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
1 1/16-12 |
Female Straight thread |
1 1/16-12 |
Male Straight Thread |
na |
na |
Steel Tee |
Non-Locking |
No |
| V510P-12-21 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
1 1/16-12 |
Female Straight thread |
1 1/16-12 |
Male Straight Thread |
na |
na |
Steel Oval |
Non-Locking |
No |
| V510P-16 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
1 5/16-12 |
Female Straight thread |
1 5/16-12 |
Male Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
| V510P-16-04 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
1 5/16-12 |
Female Straight thread |
1 5/16-12 |
Male Straight Thread |
na |
na |
Steel Tee |
Non-Locking |
No |
| V510P-4 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
7/16-20 |
Female Straight thread |
7/16-20 |
Male Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
| V510P-4-04 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
7/16-20 |
Female Straight thread |
7/16-20 |
Male Straight Thread |
na |
na |
Steel Tee |
Non-Locking |
No |
| V510P-4-21 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
7/16-20 |
Female Straight thread |
7/16-20 |
Male Straight Thread |
na |
na |
Steel Oval |
Non-Locking |
No |
| V510P-6 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
9/16-18 |
Female Straight thread |
9/16-18 |
Male Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
| V510P-6-04 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
9/16-18 |
Female Straight thread |
9/16-18 |
Male Straight Thread |
na |
na |
Steel Tee |
Non-Locking |
No |
| V510P-6-21 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
9/16-18 |
Female Straight thread |
9/16-18 |
Male Straight Thread |
na |
na |
Steel Oval |
Non-Locking |
No |
| V510P-8 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
3/4-16 |
Female Straight thread |
3/4-16 |
Male Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
| V510P-8-04 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
3/4-16 |
Female Straight thread |
3/4-16 |
Male Straight Thread |
na |
na |
Steel Tee |
Non-Locking |
No |
| V510P-8-21 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
3/4-16 |
Female Straight thread |
3/4-16 |
Male Straight Thread |
na |
na |
Steel Oval |
Non-Locking |
No |
| V520P-12 |
600 |
Female to Female Economy |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V520P-12-04 |
600 |
Female to Female Economy |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
| V520P-16 |
600 |
Female to Female Economy |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V520P-20 |
600 |
Female to Female Economy |
In Line |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V520P-24 |
600 |
Female to Female Economy |
In Line |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V520P-32 |
600 |
Female to Female Economy |
In Line |
2 |
Female Pipe |
2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V520P-4 |
600 |
Female to Female Economy |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V520P-40 |
600 |
Female to Female Economy |
In Line |
2 1/2 |
Female Pipe |
2 1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V520P-48 |
600 |
Female to Female Economy |
In Line |
3 |
Female Pipe |
3 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V520P-6 |
600 |
Female to Female Economy |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V520P-8 |
600 |
Female to Female Economy |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V533P-12 |
400 |
Female to Female |
3-Way |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V533P-16 |
400 |
Female to Female |
3-Way |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V533P-4 |
400 |
Female to Female |
3-Way |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V533P-4-04 |
600 |
Female to Female to Female |
3-way |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
| V533P-6 |
400 |
Female to Female |
3-Way |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V533P-8 |
400 |
Female to Female |
3-Way |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V540P-4 |
400 |
Female to Female |
4-Way |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V590P-16 |
250 |
Female to Male |
90 Valve |
1 |
Female Pipe |
1 |
Male Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
| V590P-16-04 |
250 |
Female to Male |
90 Valve |
1 |
Female Pipe |
1 |
Male Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V590P-4 |
250 |
Female to Male |
90 Valve |
1/4 |
Female Pipe |
1/4 |
Male Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
| V590P-4-04 |
250 |
Female to Male |
90 Valve |
1/4 |
Female Pipe |
1/4 |
Male Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V590P-6 |
250 |
Female to Male |
90 Valve |
3/8 |
Female Pipe |
3/8 |
Male Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
| V590P-6-04 |
250 |
Female to Male |
90 Valve |
3/8 |
Female Pipe |
3/8 |
Male Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V590P-8 |
250 |
Female to Male |
90 Valve |
1/2 |
Female Pipe |
1/2 |
Male Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
| V590P-8-04 |
250 |
Female to Male |
90 Valve |
1/2 |
Female Pipe |
1/2 |
Male Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V591P-4 |
250 |
Male to Male |
90 Valve |
1/4 |
Male Pipe |
1/4 |
Male Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
| V591P-4-04 |
250 |
Male to Male |
90 Valve |
1/4 |
Male Pipe |
1/4 |
Male Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V591P-6 |
250 |
Male to Male |
90 Valve |
3/8 |
Male Pipe |
3/8 |
Male Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
| V591P-6-04 |
250 |
Male to Male |
90 Valve |
3/8 |
Male Pipe |
3/8 |
Male Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V591P-8 |
250 |
Male to Male |
90 Valve |
1/2 |
Male Pipe |
1/2 |
Male Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
| V591P-8-04 |
250 |
Male to Male |
90 Valve |
1/2 |
Male Pipe |
1/2 |
Male Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V600P-8-6 |
150 |
Female to Female |
6 Port 3 position Handle |
1/2 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| V633P-8-6 |
150 |
Female to Female |
6 Port 2 position Handle |
1/2 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
| VP500P-12 |
600 |
Female to Female |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
| VP500P-16 |
600 |
Female to Female |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
| VP500P-20 |
600 |
Female to Female |
In Line |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
| VP500P-24 |
600 |
Female to Female |
In Line |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
| VP500P-32 |
600 |
Female to Female |
In Line |
2 |
Female Pipe |
2 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
| VP500P-4 |
600 |
Female to Female |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
| VP500P-6 |
600 |
Female to Female |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
| VP501P-12 |
600 |
Female to Male |
In Line |
3/4 |
Female Pipe |
3/4 |
Male Pipe |
na |
na |
Steel Lever |
Padlock |
No |
| VP501P-16 |
600 |
Female to Male |
In Line |
1 |
Female Pipe |
1 |
Male Pipe |
na |
na |
Steel Lever |
Padlock |
No |
| VP501P-4 |
600 |
Female to Male |
In Line |
1/4 |
Female Pipe |
1/4 |
Male Pipe |
na |
na |
Steel Lever |
Padlock |
No |
| VP501P-6 |
600 |
Female to Male |
In Line |
3/8 |
Female Pipe |
3/8 |
Male Pipe |
na |
na |
Steel Lever |
Padlock |
No |
| VP501P-8 |
600 |
Female to Male |
In Line |
1/2 |
Female Pipe |
1/2 |
Male Pipe |
na |
na |
Steel Lever |
Padlock |
No |
| VP502P-12 |
600 |
Female to Female |
Panel Mount |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
| VP502P-16 |
600 |
Female to Female |
Panel Mount |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
| VP502P-4 |
600 |
Female to Female |
Panel Mount |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
| VP502P-6 |
600 |
Female to Female |
Panel Mount |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
| VP502P-8 |
600 |
Female to Female |
Panel Mount |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
| VP510P-10 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
7/8-14 |
Female Straight thread |
7/8-14 |
Male Straight Thread |
na |
na |
Steel Lever |
Padlock |
No |
| VP510P-12 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
1 1/16-12 |
Female Straight thread |
1 1/16-12 |
Male Straight Thread |
na |
na |
Steel Lever |
Padlock |
No |
| VP510P-4 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
7/16-20 |
Female Straight thread |
7/16-20 |
Male Straight Thread |
na |
na |
Steel Lever |
Padlock |
No |
| VP510P-6 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
9/16-18 |
Female Straight thread |
9/16-18 |
Male Straight Thread |
na |
na |
Steel Lever |
Padlock |
No |
| VP510P-8 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
3/4-16 |
Female Straight thread |
3/4-16 |
Male Straight Thread |
na |
na |
Steel Lever |
Padlock |
No |
| VV500P-12 |
250 |
Female to Female |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
| VV500P-16 |
250 |
Female to Female |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
| VV500P-4 |
250 |
Female to Female |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
| VV500P-6 |
250 |
Female to Female |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
| VV500P-8 |
250 |
Female to Female |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
| VV501P-12 |
250 |
Female to Male |
In Line |
3/4 |
Male Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
| VV501P-16 |
250 |
Female to Male |
In Line |
1 |
Male Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
| VV501P-4 |
250 |
Female to Male |
In Line |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
| VV501P-6 |
250 |
Female to Male |
In Line |
3/8 |
Male Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
| VV501P-8 |
250 |
Female to Male |
In Line |
1/2 |
Male Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
| VV502P-12 |
250 |
Female to Female |
Panel Mount |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
| VV502P-16 |
250 |
Female to Female |
Panel Mount |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
| VV502P-4 |
250 |
Female to Female |
Panel Mount |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
| VV502P-6 |
250 |
Female to Female |
Panel Mount |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
| VV502P-8 |
250 |
Female to Female |
Panel Mount |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
| VVP500P-12 |
250 |
Female to Female |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
| VVP500P-16 |
250 |
Female to Female |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
| VVP500P-4 |
250 |
Female to Female |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
| VVP500P-6 |
250 |
Female to Female |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
| VVP500P-8 |
250 |
Female to Female |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
| VVP501P-12 |
250 |
Female to Male |
In Line |
3/4 |
Male Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
| VVP501P-16 |
250 |
Female to Male |
In Line |
1 |
Male Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
| VVP501P-4 |
250 |
Female to Male |
In Line |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
| VVP501P-6 |
250 |
Female to Male |
In Line |
3/8 |
Male Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
| VVP501P-8 |
250 |
Female to Male |
In Line |
1/2 |
Male Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
| VVP502P-12 |
250 |
Female to Female |
Panel Mount |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
| VVP502P-16 |
250 |
Female to Female |
Panel Mount |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
| VVP502P-4 |
250 |
Female to Female |
Panel Mount |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
| VVP502P-6 |
250 |
Female to Female |
Panel Mount |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
| VVP502P-8 |
250 |
Female to Female |
Panel Mount |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
| XV501PCHP-4 |
2000 |
Female to Male |
In Line |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
fcg.cnmec@parkerdistribution.com.cn
