Parker 球阀
Parker Ball Valves

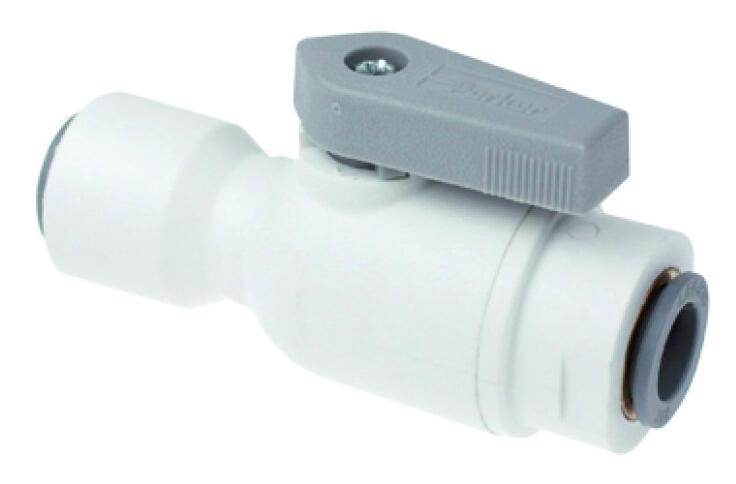

食品及饮料行业用 LIQUIfit 聚合物轻质球阀LIQUIfit Polymer Ball Valves for Food and Beverages
该系列阀门为水处理和饮料行业提供创新的解决方案。This range of valves offers an innovative solution in the treatment of water and the handling of beverages while protecting health.
紧凑而稳定可靠的阀门拥有完美的密封和出色的清洁度。These compact and reliable valves offer perfect sealing and excellent cleanliness.
该系列阀门为水处理及饮料行业提供解决方案，也带来了安全健康的承诺。结构紧凑、稳定的阀门为使用者提供完美的密封性能及卓越的清洁度。This range of valves offers an innovative solution in the treatment of water and the handling of beverages while protecting health. These compact and reliable valves offer perfect sealing and excellent cleanliness.
特点/优势Features/Benefits:
- 新颖的技术理念&提高了稳定性Innovative Technology & Increased reliability
- Full flow to limit turbulence
- Full-flow self-cleaning ball maintains the cleanliness of the circuit
- Tube retention with gripping ring prevents pumping effect
- Push-in connection and disconnection
- Sealing technology using patented EPDM seal
- 全流量到限流
- 全流量自清洁阀球保持流道的清洁度
- 配有抱持环的流道不产生泵送效应
- 快插连接或断开
- 拥有 EPDM 密封技术
- 高性能High Performance
- Inert technical polymer providing the best mechanical strength, thermal and chemical resistance
- Carstick connection providing resistance to water hammer
- Other configurations available on request
- 惰性工程聚合物材料提供理想的机械强度，耐热性和耐化学性
- Carstick庐连接方式不形成水锤
- 可按需求定制产品
市场Markets:
- 食品与饮料Food and Beverage
- 水Water
应用Applications:
- 在分装，冷却，水净化过程中允许/停止水或饮料的循环流通。Allow/Stop Water and Drinks Circulation in Dispensers, Coolers and Water Purifiers
- 始于热饮Suitable for Hot Beverages
技术Technologies:
- Water purification
- Water coolers
- Beverage dispensers
- Industrial valves
- 水净化
- 水冷却
- 饮料分装
- 工业阀门
技术特性Technical Characteristics:
- Fluids: Water, drinks, beverages
- Materials: technical polymer, EPDM, self-cleaning technical polymer, polypropylene, silicone free
- Pressure: 0 to 10 bar at 20°C
- Temperature: -15°C to +100°C
- 流体介质：水，酒，饮料
- 材料：工程聚合物，EPDM，自清洁工程聚合物，聚苯乙烯，无硅
- 承压范围：0 到10 bar 在 20°C
- 温度范围：-15°C 到 +100°C
Regulations:
- FDA: 21 CFR
- NSF: 51 and lead
Technical Specifications
| Body Material: |
POLYPROPYLENE WITH FIBREGLASS |
| Gripping Ring Material: |
STAINLESS STEEL |
| Handle Type: |
POLYAMIDE |
| O-Ring Material: |
EPDM |
| Stem Material: |
POLYSULFON |
| Maximum Operating Pressure: |
10 bar |
| Minimum Operating Temperature: |
-15 °C |
| Maximum Operating Temperature: |
100 °C |
| Quantity per Box: |
10 |
| Weight: |
0,015 to 0,029 kg |
| Application: |
Beverage Dispensers, Inert Gases, Cooling, Food Process, Water Purifi cation, Water Coolers |
| Media: |
Water, drinks, beverages |
| Specifications Met: |
FDA: 21 CFR, NSF: 51 and lead < 0.25%, WQA: Water Quality Association |
LIQUIfit Polymer Ball Valves for Food and Beverages型号
| Part |
Shape |
Connection 1 Thread Style |
Connection 1 Tube O.D. (inch) |
Connection 2 Tube O.D. (inch) |
| 4020 56 00WP2 |
2/2 in line LIQUIfit ball valve |
na |
na |
1/4 |
| 4020 60 00WP2 |
2/2 in line LIQUIfit ball valve |
na |
na |
3/8 |
| 4021 56 14WP2 |
2/2 in line LIQUIfit ball valve male |
NPTF |
NPT1/4 |
1/4 |
| 4021 60 18WP2 |
2/2 in line LIQUIfit ball valve male |
NPTF |
NPT3/8 |
3/8 |
| 4022 56 14WP2 |
2/2 right angled LIQUIfit ball valve female |
NPTF |
NPT1/4 |
1/4 |
| 4022 60 18WP2 |
2/2 right angled LIQUIfit ball valve female |
NPTF |
NPT3/8 |
3/8 |
| 4023 56 14WP2 |
2/2 in line LIQUIfit ball valve female |
NPTF |
NPT1/4 |
1/4 |
| 4023 60 18WP2 |
2/2 in line LIQUIfit ball valve female |
NPTF |
NPT3/8 |
3/8 |
|
