Parker 球阀
Parker Ball Valves

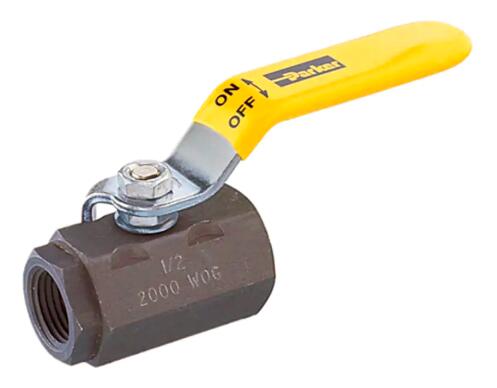

V500系列低压球阀 Low Pressure Ball Valves - V500 Series

派克的V500 系列低压球阀是一款高质量球阀，具有完全的关闭的能力。该系列阀可用于气体、水及油介质系统,并有多种材料、规格及油口型式可供货。Parker's V500 series ball valves are a high quality low pressure ball valve that provides full shut-off capabilities.





派克的500 系列低压球阀的阀体采用高质量锻件机械加工而成，由此提供了超长的工作寿命，并能有效减少因恶劣的温度环境而造成的故障。按类型的不同，其尺寸规格范围为从?” 到 3”。Parker's V500 series ball valves are machined from high quality forgings that provide extended service life and resist failure caused by severe temperature conditions. The valves can be used in air, water and oil applications. They are available in a variety of materials, sizes and port styles.



Low Pressure Ball Valves - V500 Series



连接油口选项包括NPT 及 SAE螺纹，另外还有面板安装的型式。阀体材料有黄铜、碳钢及不锈钢。按类型的不同，工作压力范围为从250 PSI 至 2,000 PSI。有些500 系列球阀可订货带有止动手柄的型式，以符合开/关均能锁定位置的要求。该系列球阀可在大量的液压、水及气体应用系统中发现，包括：

- 汽柴油设备的燃油管线阀门
- 空气工作管线
- 固定设备的供水管线
- 工厂管道设计要求的全部开关功能



市场Markets:

- Factory Automation
- Machine Tools
- Marine
- Material Handling
- Mining
- Miscellaneous Industrial
- Miscellaneous Manufacturing
- Molding
- Oil & Gas
- Power Generation
- Vehicle Assembly Facilities
工厂自动化
机床
船舶
物料搬运
采矿
杂项工业
杂项制造
成型
石油和天然气
发电
车辆组装设施的



特点/优势Features/Benefits:

- Available in sizes from 1/4” to 3”
- Port options include NPT and SAE
- Material offerings are brass, carbon steel, and stainless steel
- Pressures range from 250 PSI to 2,000 PSI depending on the series variation
尺寸从1/4“到3”不等
端口选项包括NPT和SAE
提供的材料有黄铜，碳钢和不锈钢
压力范围从250 PSI到2,000 PSI（取决于系列变化）



应用Applications:

- 适用于一般液压应用Suitable for general hydraulic applications



Technical Specifications

Stem Material: Zinc Plated Carbon Steel, Chrome Plated Brass, 316 Stainless Steel
Maximum Operating Pressure: 138, 41, 103, 31, 17 bar
Media: Air, Oil, Water



Low Pressure Ball Valves - V500 Series 型号

Part Valve Body Material Port Size Thread Type Connection Mounting Options Vented Ball Material Maximum Pressure (psi)
V500CS12 Zinc Plated Carbon Steel 3/4" NPT Female-Female In-Line N/A N/A Zinc Plated Carbon Steel 2000
V500CS16 Zinc Plated Carbon Steel 1" NPT Female-Female In-Line N/A N/A Zinc Plated Carbon Steel 2000
V500CS4 Zinc Plated Carbon Steel 1/4" NPT Female-Female In-Line N/A N/A Zinc Plated Carbon Steel 2000
V500CS6 Zinc Plated Carbon Steel 3/8" NPT Female-Female In-Line N/A N/A Zinc Plated Carbon Steel 2000
V500CS8 Zinc Plated Carbon Steel 1/2" NPT Female-Female In-Line N/A N/A Zinc Plated Carbon Steel 2000
V500P12 Brass 3/4" NPT Female-Female In-Line N/A N/A Chrome Plated Brass 600
V500P1201 Brass 3/4" NPT Female-Female In-Line N/A N/A 316 Stainless Steel 600
V500P1203 Brass 3/4" NPT Female-Female In-Line 316 Stainless Steel Handle and Nut N/A 316 Stainless Steel 600
V500P1204 Brass 3/4" NPT Female-Female In-Line T- Handle N/A Chrome Plated Brass 600
V500P16 Brass 1" NPT Female-Female In-Line N/A N/A Chrome Plated Brass 600
V500P1601 Brass 1" NPT Female-Female In-Line N/A N/A 316 Stainless Steel 600
V500P1602 Brass 1" NPT Female-Female In-Line 316 Stainless Steel Handle and Nut N/A Chrome Plated Brass 600
V500P1603 Brass 1" NPT Female-Female In-Line 316 Stainless Steel Handle and Nut N/A 316 Stainless Steel 600
V500P20 Brass 1-1/4" NPT Female-Female In-Line N/A N/A Chrome Plated Brass 600
V500P2002 Brass 1-1/4" NPT Female-Female In-Line 316 Stainless Steel Handle and Nut N/A Chrome Plated Brass 600
V500P2402 Brass 1-1/2" NPT Female-Female In-Line 316 Stainless Steel Handle and Nut N/A Chrome Plated Brass 600
V500P32 Brass 2" NPT Female-Female In-Line N/A N/A Chrome Plated Brass 600
V500P4 Brass 1/4" NPT Female-Female In-Line N/A N/A Chrome Plated Brass 600
V500P401 Brass 1/4" NPT Female-Female In-Line N/A N/A 316 Stainless Steel 600
V500P403 Brass 1/4" NPT Female-Female In-Line 316 Stainless Steel Handle and Nut N/A 316 Stainless Steel 600
V500P6 Brass 3/8" NPT Female-Female In-Line N/A N/A Chrome Plated Brass 600
V500P601 Brass 3/8" NPT Female-Female In-Line N/A N/A 316 Stainless Steel 600
V500P603 Brass 3/8" NPT Female-Female In-Line 316 Stainless Steel Handle and Nut N/A 316 Stainless Steel 600
V500P8 Brass 1/2" NPT Female-Female In-Line N/A N/A Chrome Plated Brass 600
V500P801 Brass 1/2" NPT Female-Female In-Line N/A N/A 316 Stainless Steel 600
V500P803 Brass 1/2" NPT Female-Female In-Line 316 Stainless Steel Handle and Nut N/A 316 Stainless Steel 600
V500P804 Brass 1/2" NPT Female-Female In-Line T- Handle N/A Chrome Plated Brass 600
V501P12 Brass 3/4" NPT Male-Female In-Line N/A N/A Chrome Plated Brass 600
V501P16 Brass 1" NPT Male-Female In-Line N/A N/A Chrome Plated Brass 600
V501P404 Brass 1/4" NPT Male-Female In-Line T- Handle N/A Chrome Plated Brass 600
V501P6 Brass 3/8" NPT Male-Female In-Line N/A N/A Chrome Plated Brass 600
V501P604 Brass 3/8" NPT Male-Female In-Line T- Handle N/A Chrome Plated Brass 600
V501P8 Brass 1/2" NPT Male-Female In-Line N/A N/A Chrome Plated Brass 600
V501P804 Brass 1/2" NPT Male-Female In-Line T- Handle N/A Chrome Plated Brass 600
V501SS1201 316 Stainless Steel 3/4" NPT Male-Female In-Line N/A N/A 316 Stainless Steel 2000
V501SS1601 316 Stainless Steel 1" NPT Male-Female In-Line N/A N/A 316 Stainless Steel 2000
V501SS401 316 Stainless Steel 1/4" NPT Male-Female In-Line N/A N/A 316 Stainless Steel 2000
V501SS601 316 Stainless Steel 3/8" NPT Male-Female In-Line N/A N/A 316 Stainless Steel 2000
V501SS801 316 Stainless Steel 1/2" NPT Male-Female In-Line N/A N/A 316 Stainless Steel 2000
V502CS24 Zinc Plated Carbon Steel 1-1/2" NPT Female-Female Panel Mount N/A N/A Zinc Plated Carbon Steel 1500
V502P12 Brass 3/4" NPT Female-Female Panel Mount N/A N/A Chrome Plated Brass 600
V502P16 Brass 1" NPT Female-Female Panel Mount N/A N/A Chrome Plated Brass 600
V502P4 Brass 1/4" NPT Female-Female Panel Mount N/A N/A Chrome Plated Brass 600
V502P6 Brass 3/8" NPT Female-Female Panel Mount N/A N/A Chrome Plated Brass 600
V502P8 Brass 1/2" NPT Female-Female Panel Mount N/A N/A Chrome Plated Brass 600
V502SS1201 316 Stainless Steel 3/4" NPT Female-Female Panel Mount N/A N/A 316 Stainless Steel 2000
V502SS1601 316 Stainless Steel 1" NPT Female-Female Panel Mount N/A N/A 316 Stainless Steel 2000
V502SS2001 316 Stainless Steel 1-1/4" NPT Female-Female Panel Mount N/A N/A 316 Stainless Steel 1500
V502SS2401 316 Stainless Steel 1-1/2" NPT Female-Female Panel Mount N/A N/A 316 Stainless Steel 1500
V502SS3201 316 Stainless Steel 2" NPT Female-Female Panel Mount N/A N/A 316 Stainless Steel 1500
V502SS401 316 Stainless Steel 1/4" NPT Female-Female Panel Mount N/A N/A 316 Stainless Steel 2000
V502SS601 316 Stainless Steel 3/8" NPT Female-Female Panel Mount N/A N/A 316 Stainless Steel 2000
V502SS801 316 Stainless Steel 1/2" NPT Female-Female Panel Mount N/A N/A 316 Stainless Steel 2000
V506P12 Brass 12 SAE Female-Female In-Line N/A N/A Chrome Plated Brass 600
V506P16 Brass 16 SAE Female-Female In-Line N/A N/A Chrome Plated Brass 600
V506P20 Brass 20 SAE Female-Female In-Line N/A N/A Chrome Plated Brass 600
V506P24 Brass 24 SAE Female-Female In-Line N/A N/A Chrome Plated Brass 600
V506P32 Brass 32 SAE Female-Female In-Line N/A N/A Chrome Plated Brass 600
V506P8 Brass 8 SAE Female-Female In-Line N/A N/A Chrome Plated Brass 600
V510P12 Brass 12 SAE Male-Female In-Line N/A N/A Chrome Plated Brass 600
V510P16 Brass 16 SAE Male-Female In-Line N/A N/A Chrome Plated Brass 600
V510P4 Brass 4 SAE Male-Female In-Line N/A N/A Chrome Plated Brass 600
V510P6 Brass 6 SAE Male-Female In-Line N/A N/A Chrome Plated Brass 600
V510P604 Brass 6 SAE Male-Female In-Line T- Handle N/A Chrome Plated Brass 600
V510P8 Brass 8 SAE Male-Female In-Line N/A N/A Chrome Plated Brass 600
V510P801 Brass 8 SAE Male-Female In-Line N/A N/A 316 Stainless Steel 600
V520P12 Brass - U.L. Listed 3/4" NPT Female-Female In-Line N/A N/A Chrome Plated Brass 650
V520P16 Brass - U.L. Listed 1" NPT Female-Female In-Line N/A N/A Chrome Plated Brass 650
V520P20 Brass - U.L. Listed 1-1/4" NPT Female-Female In-Line N/A N/A Chrome Plated Brass 650
V520P24 Brass - U.L. Listed 1-1/2" NPT Female-Female In-Line N/A N/A Chrome Plated Brass 650
V520P32 Brass - U.L. Listed 2" NPT Female-Female In-Line N/A N/A Chrome Plated Brass 650
V520P4 Brass - U.L. Listed 1/4" NPT Female-Female In-Line N/A N/A Chrome Plated Brass 650
V520P40 Brass - U.L. Listed 2-1/2" NPT Female-Female In-Line N/A N/A Chrome Plated Brass 450
V520P48 Brass - U.L. Listed 3" NPT Female-Female In-Line N/A N/A Chrome Plated Brass 450
V520P6 Brass - U.L. Listed 3/8" NPT Female-Female In-Line N/A N/A Chrome Plated Brass 650
V520P8 Brass - U.L. Listed 1/2" NPT Female-Female In-Line N/A N/A Chrome Plated Brass 650
V590P4 Brass 1/4" NPT Male-Female 90° N/A N/A Chrome Plated Brass 250
V590P6 Brass 3/8" NPT Male-Female 90° N/A N/A Chrome Plated Brass 250
V590P8 Brass 1/2" NPT Male-Female 90° N/A N/A Chrome Plated Brass 250
V591P4 Brass 1/4" NPT Male-Male 90° N/A N/A Chrome Plated Brass 250
V591P6 Brass 3/8" NPT Male-Male 90° N/A N/A Chrome Plated Brass 250
V591P8 Brass 1/2" NPT Male-Male 90° N/A N/A Chrome Plated Brass 250
VP500CS12 Zinc Plated Carbon Steel 3/4" NPT Female-Female In-Line Locking Handle N/A Zinc Plated Carbon Steel 2000
VP500CS16 Zinc Plated Carbon Steel 1" NPT Female-Female In-Line Locking Handle N/A Zinc Plated Carbon Steel 2000
VP500CS4 Zinc Plated Carbon Steel 1/4" NPT Female-Female In-Line Locking Handle N/A Zinc Plated Carbon Steel 2000
VP500CS6 Zinc Plated Carbon Steel 3/8" NPT Female-Female In-Line Locking Handle N/A Zinc Plated Carbon Steel 2000
VP500CS8 Zinc Plated Carbon Steel 1/2" NPT Female-Female In-Line Locking Handle N/A Zinc Plated Carbon Steel 2000
VP500P12 Brass 3/4" NPT Female-Female In-Line Locking Handle N/A Chrome Plated Brass 600
VP500P16 Brass 1" NPT Female-Female In-Line Locking Handle N/A Chrome Plated Brass 600
VP500P20 Brass 1-1/4" NPT Female-Female In-Line Locking Handle N/A Chrome Plated Brass 600
VP500P24 Brass 1-1/2" NPT Female-Female In-Line Locking Handle N/A Chrome Plated Brass 600
VP500P32 Brass 2" NPT Female-Female In-Line Locking Handle N/A Chrome Plated Brass 600
VP500P4 Brass 1/4" NPT Female-Female In-Line Locking Handle N/A Chrome Plated Brass 600
VP500P6 Brass 3/8" NPT Female-Female In-Line Locking Handle N/A Chrome Plated Brass 600
VP500P8 Brass 1/2" NPT Female-Female In-Line Locking Handle N/A Chrome Plated Brass 600
VP500P801 Brass 1/2" NPT Female-Female In-Line Locking Handle N/A 316 Stainless Steel 600
VP501P12 Brass 3/4" NPT Male-Female In-Line Locking Handle N/A Chrome Plated Brass 600
VP501P6 Brass 3/8" NPT Male-Female In-Line Locking Handle N/A Chrome Plated Brass 600
VP501P8 Brass 1/2" NPT Male-Female In-Line Locking Handle N/A Chrome Plated Brass 600
VP502CS20 Zinc Plated Carbon Steel 1-1/4" NPT Female-Female Panel Mount Locking Handle N/A Zinc Plated Carbon Steel 1500
VP502CS224 Zinc Plated Carbon Steel 1-1/2" NPT Female-Female Panel Mount Locking Handle N/A Zinc Plated Carbon Steel 1500
VP502CS32 Zinc Plated Carbon Steel 2" NPT Female-Female Panel Mount Locking Handle N/A Zinc Plated Carbon Steel 1500
VP502P12 Brass 3/4" NPT Female-Female Panel Mount Locking Handle N/A Chrome Plated Brass 600
VP502P4 Brass 1/4" NPT Female-Female Panel Mount Locking Handle N/A Chrome Plated Brass 600
VP502P6 Brass 3/8" NPT Female-Female Panel Mount Locking Handle N/A Chrome Plated Brass 600
VP502P8 Brass 1/2" NPT Female-Female Panel Mount Locking Handle N/A Chrome Plated Brass 600
VP502SS1201 316 Stainless Steel 3/4" NPT Female-Female Panel Mount Locking Handle N/A 316 Stainless Steel 2000
VP502SS1601 316 Stainless Steel 1" NPT Female-Female Panel Mount Locking Handle N/A 316 Stainless Steel 2000
VP502SS2001 316 Stainless Steel 1-1/4" NPT Female-Female Panel Mount Locking Handle N/A 316 Stainless Steel 1500
VP502SS2401 316 Stainless Steel 1-1/2" NPT Female-Female Panel Mount Locking Handle N/A 316 Stainless Steel 1500
VP502SS3201 316 Stainless Steel 2" NPT Female-Female Panel Mount Locking Handle N/A 316 Stainless Steel 1500
VP502SS401 316 Stainless Steel 1/4" NPT Female-Female Panel Mount Locking Handle N/A 316 Stainless Steel 2000
VP502SS601 316 Stainless Steel 3/8" NPT Female-Female Panel Mount Locking Handle N/A 316 Stainless Steel 2000
VP502SS801 316 Stainless Steel 1/2" NPT Female-Female Panel Mount Locking Handle N/A 316 Stainless Steel 2000
VP506P8 Brass 8 SAE Female-Female In-Line Locking Handle N/A Chrome Plated Brass 600
VP510P12 Brass 12 SAE Male-Female In-Line Locking Handle N/A Chrome Plated Brass 600
VP510P8 Brass 8 SAE Male-Female In-Line Locking Handle N/A Chrome Plated Brass 600
VV500P12 Brass 3/4" NPT Female-Female In-Line N/A Vented Chrome Plated Brass 250
VV500P4 Brass 1/4" NPT Female-Female In-Line N/A Vented Chrome Plated Brass 250
VV500P6 Brass 3/8" NPT Female-Female In-Line N/A Vented Chrome Plated Brass 250
VV500P801 Brass 1/2" NPT Female-Female In-Line 316 Stainless Steel Handle and Nut Vented 316 Stainless Steel 250
VV501P12 Brass 3/4" NPT Male-Female In-Line N/A Vented Chrome Plated Brass 250
VV501P4 Brass 1/4" NPT Male-Female In-Line N/A Vented Chrome Plated Brass 250
VV502P4 Brass 1/4" NPT Female-Female Panel Mount N/A Vented Chrome Plated Brass 250
VV502P6 Brass 3/8" NPT Female-Female Panel Mount N/A Vented Chrome Plated Brass 250
VV502P8 Brass 1/2" NPT Female-Female Panel Mount N/A Vented Chrome Plated Brass 250
VVP500P12 Brass 3/4" NPT Female-Female In-Line Locking Handle; 316 Staniless Steel Handle and Nut Vented Chrome Plated Brass 250
VVP500P16 Brass 1" NPT Female-Female In-Line Locking Handle Vented Chrome Plated Brass 600
VVP500P4 Brass 1/4" NPT Female-Female In-Line Locking Handle Vented Chrome Plated Brass 600
VVP500P6 Brass 3/8" NPT Female-Female In-Line Locking Handle; 316 Staniless Steel Handle and Nut Vented Chrome Plated Brass 250
VVP500P8 Brass 1/2" NPT Female-Female In-Line Locking Handle Vented Chrome Plated Brass 600
VVP502P4 Brass 1/4" NPT Female-Female Panel Mount Locking Handle Vented Chrome Plated Brass 600
