Parker 针阀
Parker Needle Valves

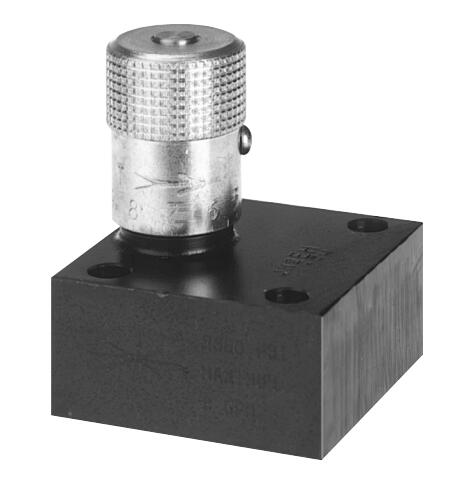

NS系列针阀 Needle Valve, Subplate Mounted – NS Series

派克的NS系列针型阀为液压应用提供了很好的速度控制和关闭功能，无需进行自由回流检查。 Parker's NS series needle valve provides excellent speed control and shutoff for hydraulic applications where a free reverse-flow check is not needed.

派克的NS系列针型阀可以在低流量情况下调节旋钮前三圈进行微调，旋转三圈可以实现全开流量和常规的精密节流。 Parker's NS series needle valve allows fine tuning at low flow with the first three turns of the adjusting knob, with full-open flow plus conventional precision throttling with the final three turns of the knob.

NS系列针阀 Needle Valve, Subplate Mounted – NS Series

市场Markets ：

- Factory Automation
- Machine Tools
- Marine
- Material Handling
- Mining
- Miscellaneous Industrial
- Miscellaneous Manufacturing
- Molding
- Oil &Gas
- Power Generation
- Vehicle Assembly Facilities
- 工厂自动化
- 机械工具
- 海洋
- 物料处理
- 采矿
- 其他工业
- 多项制造
- 成型
- 石油和天然气
- 发电
- 车辆组装设施

特点/优势Features/Benefits ：

- Tamperproof option available
- Set screw locks the valve on a desired setting
- Port sizes available in 5 sizes from 1/4” to 1”
- The exclusive “Colorflow” color-band provide an accurate visual indication of setting
- 可免于乱摆
- 用螺丝锁定阀门所需的设置
- 从 1/4” 到 1”的5种尺寸端口尺寸都可用
- 不同的“流体色”色带提供正确的设置视觉指示

应用Applications ：

- Suitable for general hydraulic applications
- 适用于一般液压应用

Technical Specifications

Product Style:	Needle Valve
Connection Type:	NPT
Valve Material:	Steel
Maximum Flow Rate:	19, 30, 57, 95, 151 L/min, 5, 8, 15, 25, 40 Gal/min
Maximum Operating Pressure:	3000 psi, 210 bar
Mounting Type:	Subplate
Media:	Oil

Needle Valve, Subplate Mounted – NS Series 型号

Part	Seal Material	Knob Option	Needle option	Port Size
NS1200S	Nitrile	Standard	Standard	3/4"
NS1200S-V	Fluorocarbon	Standard	Standard	3/4"
NS1200SF	Nitrile	Finger Screw	Standard	3/4"
NS1200SF-V	Fluorocarbon	Finger Screw	Standard	3/4"
NS1200ST	Nitrile	Tamperproof	Standard	3/4"
NS1200ST-V	Fluorocarbon	Tamperproof	Standard	3/4"
NS1600S	Nitrile	Standard	Standard	1"
NS1600S-V	Fluorocarbon	Standard	Standard	1"
NS1600SF	Nitrile	Finger Screw	Standard	1"
NS1600SF-V	Fluorocarbon	Finger Screw	Standard	1"
NS1600ST	Nitrile	Tamperproof	Standard	1"
NS1600ST-V	Fluorocarbon	Tamperproof	Standard	1"
NS400S	Nitrile	Standard	Standard	1/4"
NS400S-V	Fluorocarbon	Standard	Standard	1/4"
NS400S4	Nitrile	Standard	Fine Metering	1/4"
NS400S4-V	Fluorocarbon	Standard	Fine Metering	1/4"
NS400S4F	Nitrile	Finger Screw	Fine Metering	1/4"
NS400S4F-V	Fluorocarbon	Finger Screw	Fine Metering	1/4"
NS400S4T	Nitrile	Tamperproof	Fine Metering	1/4"
NS400S4T-V	Fluorocarbon	Tamperproof	Fine Metering	1/4"
NS400SF	Nitrile	Finger Screw	Standard	1/4"
NS400SF-V	Fluorocarbon	Finger Screw	Standard	1/4"
NS400ST	Nitrile	Tamperproof	Standard	1/4"
NS400ST-V	Fluorocarbon	Tamperproof	Standard	1/4"
NS600S	Nitrile	Standard	Standard	3/8"
NS600S-V	Fluorocarbon	Standard	Standard	3/8"
NS600S4	Nitrile	Standard	Fine Metering	3/8"
NS600S4-V	Fluorocarbon	Standard	Fine Metering	3/8"
NS600S4F	Nitrile	Finger Screw	Fine Metering	3/8"
NS600S4F-V	Fluorocarbon	Finger Screw	Fine Metering	3/8"
NS600S4T	Nitrile	Tamperproof	Fine Metering	3/8"
NS600S4T-V	Fluorocarbon	Tamperproof	Fine Metering	3/8"
NS600SF	Nitrile	Finger Screw	Standard	3/8"
NS600SF-V	Fluorocarbon	Finger Screw	Standard	3/8"
NS600ST	Nitrile	Tamperproof	Standard	3/8"
NS600ST-V	Fluorocarbon	Tamperproof	Standard	3/8"
NS800S	Nitrile	Standard	Standard	1/2"
NS800S-V	Fluorocarbon	Standard	Standard	1/2"
NS800SF	Nitrile	Finger Screw	Standard	1/2"
NS800SF-V	Fluorocarbon	Finger Screw	Standard	1/2"
NS800ST	Nitrile	Tamperproof	Standard	1/2"
NS800ST-V	Fluorocarbon	Tamperproof	Standard	1/2"
