Parker PFA阀
Parker PFA Valves
UHP 超高纯 PFA手动针阀 (尺寸到 1/2 ") – MV-13 系列 UHP PFA Manual Needle Valve (sizes up to 1/2 inch) – MV-13 Series

MV-13 系列 PFA手动针阀提供优秀的泄露完整性和优异的耐腐蚀性。它带有PTFE卡套，旨在为超高纯和腐蚀性流体处理应用提供精确的流量控制 。 The MV-13 Series PFA Manual Needle Valve offers excellent leak integrity and exceptional resistance to corrosion. It has a PTFE ferrule and is designed to provide precise flow control in ultra-high purity and aggressive fluid handling applications.

MV-13 系列是手动针阀，为腐蚀性液体和分配系统提供精确流量控制，包括那些超高纯(UHP)半导体生产和洁净区域的应用. The MV-13 Series is a manually operated needle valve that offers precise control of flow in corrosive liquid and gas distribution systems, including those used in ultra-high purity (UHP) semiconductor manufacturing and clean-area applications.

MV-13系列采用改性PFA阀体和阀杆，具有高循环寿命和极强耐腐蚀性。PFA阀杆停止防止操作时阀杆脱离阀体，因此确保了压力在真空-100psig的安全和可靠操作。阀门的PTFE卡套在阀杆和阀体间建立了无泄漏密封，允许阀门用在洁净度和小粒子生成非常重要的场合。MV-13系列非接液部件（PFA,ETFE,PVDF）也具有高耐久度，使针阀具有高强度，无需维护运行。 The MV-13 Series features a molded PFA body and stem for high cycle life and extreme resistance to corrosion. The PFA stem stop prevents removal of the stem from the body when in service, thus ensuring safe and reliable operation from vacuum to working pressures up to 100 psig. The valve's PTFE ferrule creates a leak-tight seal between the stem and body, which allows the valve to be utilized in applications where cleanliness and minimal particle generation are critical. The non-wetted components (PFA, ETFE, PVDF) of the MV-13 Series are also highly durable and afford the needle valve with high strength and maintenance-free operation.

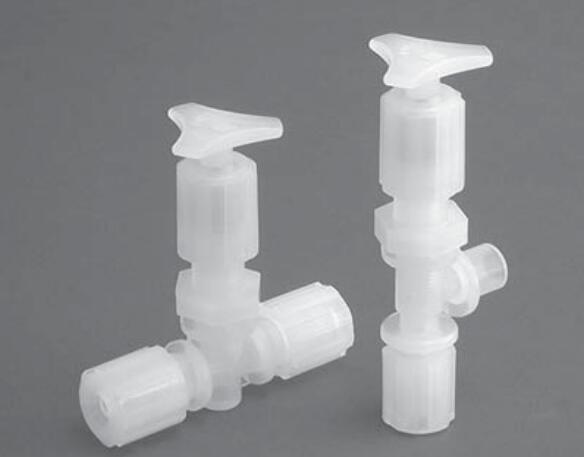

MV-13系列针阀有直通型和角型，以及多种通径尺寸。依据客户需求，阀门阀门有多种入口和出口连接尺寸和形式，包括Parflare和Pargrip管接头。Parflare和Gargrip接头易于装配，因此减少了安装时间，确保无泄漏密封，是停机时间更少化。 The MV-13 Series needle valve is available in straight through and angle configurations, along with several orifice sizes. Depending on customer requirements, the valve can be fitted with a variety of inlet and outlet port connection sizes and types, including Parflare and Pargrip tube fittings. Both Parflare and Pargrip fittings allow for ease of assembly, thus reducing installation time and ensuring a leak-tight seal for minimal downtime.

UHP 超高纯 PFA手动针阀 (尺寸到 1/2 ") – MV-13 系列 UHP PFA Manual Needle Valve (sizes up to 1/2 inch) – MV-13 Series

市场Markets:

- Semiconductor
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial
- 半导体
- 分析试验室
- 制药
- 生物制药
- 航空航天
- 工业

特点/优势Features/Benefits:

- Ideal for use in UHP and aggressive and/or corrosive fluid handling systems, including semiconductor manufacturing and clean-area applications
- One piece PFA stem/handle and bodies provides strength and corrosion resistance
- Stem sealing area is precision-machined for smooth, consistent flow
- PTFE ferrule ensures a leak-tight seal between stem and body
- Available in in straight through and angle configurations, along with several orifice sizes and inlet/outlet port connections, including Parflare and Pargrip fittings
- Ambient temperature range: 0°F to +150° F (-17°C to +66° C)
- Fluid temperature range: 0°F to +266° F (-17°C to +130° C)
- Fully functional from vacuum to 100 psig
- 非常适合用于UHP超高纯和腐蚀性和/或侵蚀性流体处理系统，包括半导体生产和洁净区应用
- 一片式PFA阀杆/手柄和阀体提供强度和腐蚀性
- 精密加工阀杆密封区域，提供平滑、一致的流量
- PTFE卡套确保阀杆与阀体间无泄漏密封
- 有直通型和角型，以及多种通径尺寸和出入口连接方式，包括 Parflare和Pargrip接头
- 环境温度范围:0°F 至 +150° F (-17°C 至 +66° C)
- 流体温度范围:0°F 至 +266° F (-17°C 至 +130° C)
- 压力范围：真空到100 psig

应用Applications:

- Corrosive liquids and gases
- Semiconductor Tools
- Tool Hook-ups
- Process Instrumentation
- 腐蚀性液体和气体
- 半导体工具
- 工具挂钩
- 过程仪表

Technical Specifications

UHP PFA Manual Needle Valve (sizes up to 1/2 inch) – MV-13 Series 型号
