Parker 减压阀
Parker Pressure Relief Valves

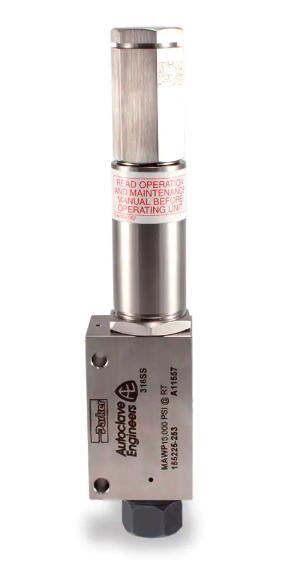

高压安全阀 - MAR系列Relief Valves,High Pressure - MAR Series

派克MAR系列安全阀（硬阀座式和软阀座式）提供了稳定的排放气体或液体的应用，工作压力可达从1,500 psi（103bar）到75,000 psi（5171 bar）。 Parker's MAR Series (Hard and Soft Seat) relief valves provide reliable venting of gases or liquids for set pressures from 1,500 PSI (103 BAR) minimum to 75,000 PSI (5171 bar).

派克MAR系列安全阀提供系统承压高达20000 psi（1378 bar）的两种不同的设计，一个是硬阀座式安全阀和另一种是软阀座式。派克的MARA系列（硬阀座）安全阀提供了稳定的排放气体或液体的应用，工作压力为从3000 psi（206.8bar）到20000 psi（1378 bar）。型号的标准温度范围是-423°F到400°F（-252°C ~ 204°C）。高温选项750°F（399°C）也是可以选用的。这些精密阀门是为高压气体系统、超低温系统、石化等系统应用设计的。 Parker's MAR Series Relief Valves offer two distinct designs for systems up to 20,000 PSI (1378 BAR). One is a hard seat relief valve and the other is a soft seat relief valve. Parker's MARA Series (Hard Seat) relief valves provide reliable venting of gases or liquids for set pressures from 3,000 psi (206.8 bar) minimum to 20,000 psi (1378 bar). The standard temperature range for all models is -423oF to 400oF (-252oC to 204oC). A high temperature option to 750oF (399oC) is also available. These precision valves are designed for pressure gas systems, cryogenic systems, petrochemical applications and other special systems.

这些精密阀门是为高压气体系统设计使用，其中无泄漏是关键。他们不推荐用于液氮或液态二氧化碳，产生的气体会在低温下泄放。派克安全阀门的设计，是一款比例泄放模式，也就是随着压力越来越大，泄放量也按比例的随之增加。因此，我们是不建议在设定压力值处发生立即的全阀开口的流量泄放的应用（如分解反应、聚合反应产生等），安全阀的全流量泄放将发生在超过设定压力10%的时候。 These precision valves are designed for pressure gas systems, where zero leakage is critical. They are not recommended for liquid nitrogen or liquid carbon dioxide, which produce gas at cryogenic temperatures upon relief. Relief valves are designed to open proportionally to increasing pressure. Therefore, they are not recommended for applications requiring immediate full valve flow at set pressure (such as decompositions, polymerizations, etc.). Full flow of relief valve is defined at 10% over set pressure.

派克的MARSA系列（软阀座）安全阀提供了稳定的排放气体应用，工作压力为从1500 psi（103bar）到20000 psi（1378 bar），工作温度范围为32°F（0°C）400°F（204°F）。软阀座安全阀提供了气密密封（使用气泡法测试），可重复弹起开启，及有效复位。此外，软阀座安全阀提供比金属阀座较高的循环使用寿命。 Parker's MARSA Series (Soft Seat) relief valves utilize a soft seat design for reliable venting of gases at set pressures from 1,500 psi (103 bar) to 20,000 psi (1378 bar). The operating temperature range is 32oF (0oC) to 400oF (204oF). The soft seat design provides bubble tight sealing, repeatable pop-off, and reseat. Additionally, soft seat valves provide a higher cycle life than metal seat relief valves.

这些精密阀门是为高压气系统，其中无泄漏是关键。他们不推荐用于液氮或液态二氧化碳，产生的气体会在低温下泄放。派克安全阀门的设计，是一款比例泄放模式，也就是随着压力越来越大，泄放量也按比例的随之增加。因此，我们是不建议在设定压力值处发生立即的全阀开口的流量泄放的应用（如分解反应、聚合反应产生等），安全阀的全流量泄放将发生在超过设定压力10%的时候。 These precision valves are designed for pressure gas systems, where zero leakage is critical. They are not recommended for liquid nitrogen or liquid carbon dioxide, which produce gas at cryogenic temperatures upon relief. Relief valves are designed to open proportionally to increasing pressure. Therefore, they are not recommended for applications requiring immediate full valve flow at set pressure (such as decompositions, polymerizations, etc.). Full flow of relief valve is defined at 10% over set pressure.

高压安全阀 - MAR系列 Relief Valves,High Pressure - MAR Series

市场Markets:

- Chemical Processing
- Petrochemical
- Research
- Power
- 化学品过程加工
- 石化
- 研究机构
- 电厂

特点/优势Features/Benefits:

- Hard and Soft Seat designs
- NPT High Pressure End Connections
- Heat code traceability
- High Cycle Life
- Large Filter Areas
- 硬软阀座设计可选
- NPT高压连接端口
- 可追溯性炉号代码
- 高循环使用寿命
- 较大过滤区域

应用Applications:

- Process Control Lines
- Pressure Gas Systems
- High Pressure Equipment Protection
- Cryogenic Systems
- 过程控制管线
- 压力气体系统
- 高压设备保护
- 超低温系统

Technical Specifications

Relief Valves,High Pressure - MAR Series 型号
