Parker派克 仪表级针阀
Parker派克 Needle Valve,Union Bonnet 6,000 PSI - U Series
Parker派克 U 系列整体阀盖针阀 - 6,000 PSI

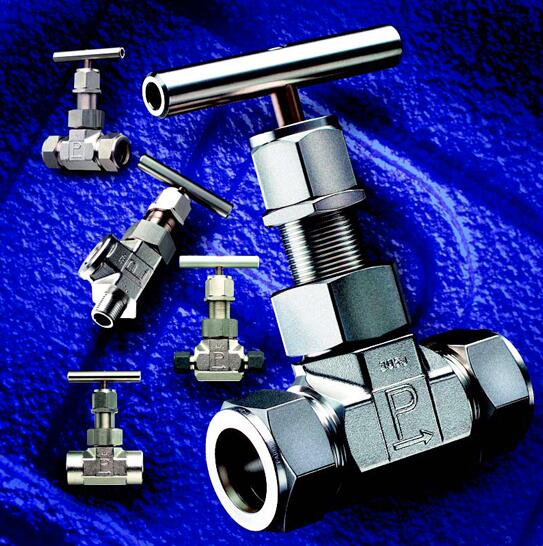

Parker派克 U系列针阀 U Series Needle Valve

派克整体型阀盖针阀，U 系列针阀应用于高温高压仪器仪表及工程环境。这种阀门螺纹下端填料以便保护阀杆。Parker's union bonnet needle valves, U Series have been engineered for use in high pressure and high temperature instrumentation and industrial applications. These severe service needle valves have packing below the threads to protect the valve stem

Parker派克 U 系列整体阀盖针阀 - 6,000 PSI 资料下载

派克的 U 系列整体阀盖阀门工作压力可达6,000 psi(414 bar)，温度可达1200°F(649°C).重型设计具有非旋转下阀杆，通过移动旋转阀杆来延长填料使用寿命。螺纹下方的阀杆密封填料将螺纹润滑剂与流体隔离，无论介质如何都可实现充分润滑。Parker's U Series Union Bonnet valves are engineered for use at pressures up to 6,000 (414 bar) and temperatures as high as 1,200°F (649°C). The heavy duty design has a non-rotating lower stem that helps to extend packing life by removing stem rotation through the packing area. Stem packing below the threads isolates the thread lubricant from the flow, ensuring adequate lubrication regardless of the media.

市场Markets:
- 电力行业Power
- 核工业Nuclear Plants
- 石油天然气Oil and Gas
- 化工/石化行业Chemical / Petro-Chemical

特征/优势Features/Benefits:
- 整体式阀盖设计实现在严苛条件下高严合性密封Union bonnet design ensures high integrity seal under severe service applications
- 旋转螺纹下端的填料可使螺纹润滑剂与介质隔离Packing below the power threads protects thread lubricants from media and isolates the lubricants from the media
- 调料圈中的防尘圈用来保护阀杆螺纹免受外界污染Dust seal in the packing nut protects stem threads from external contamination
- 填料上端的旋转阀杆可有效减小受压区域及延长填料使用寿命Stem swivel above the packing eliminates entrapment area and increases packing life
- 选择石墨 PTFE(聚四氟乙烯）填料。Choice of Grafoil or PTFE packing
- 选择调节型或钝型阀杆。钝型阀杆形式可减轻两相对流时发生的分流。（例如蒸汽管道）Choice of Regulating or Blunt stem types. Blunt stem type helps combat wire draw which may occur when two phase flow is present (i.e. steam service)
- 316不锈钢结构316 stainless steel construction
- 各种美式常用及SI接口Wide variety of US Customary and SI ports
- 面板安装Panel mountable
- 每个产品都经过出厂测试100% factory tested

应用Applications:
- 蒸汽吹扫行业Steam Blow Down Service
- 过程控制Process Control Lines
- 高温取样管道High Temperature Sampling Lines

性能特点：

阀体材料：316 不锈钢
max.运行压力：6000 psi，414 barg
min.运行温度：-54 °C，-65 °F
max.运行温度：450, 700, 1200 °F

Needle Valve,Union Bonnet 6,000 PSI - U Series 型号

Part Connection Size Connection Size 2 Connection 1 Style Connection 2 Style Valve Type Stem Type Packing Material Maximum Operating Temperature (C) Flow Capacity (Cv)
10A-U12AB-G-SS 5/8" 5/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 1.31
10A-U12AB-T-SS 5/8" 5/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 1.31
10A-U12AR-G-SS 5/8" 5/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 1.19
10A-U12AR-G-SS-HT 5/8" 5/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 1.19
10A-U12AR-T-SS 5/8" 5/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 1.19
10A-U12AR-T-SS-HT 5/8" 5/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 1.19
10A-U12LB-G-SS 5/8" 5/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 1.31
10A-U12LB-T-SS 5/8" 5/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 1.31
10A-U12LR-G-SS 5/8" 5/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 1.19
10A-U12LR-G-SS-HT 5/8" 5/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 1.19
10A-U12LR-T-SS 5/8" 5/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 1.19
10A-U12LR-T-SS-HT 5/8" 5/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 1.19
10Z-U12AB-G-SS 5/8" 5/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 1.31
10Z-U12AB-T-SS 5/8" 5/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 1.31
10Z-U12AR-G-SS 5/8" 5/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 1.19
10Z-U12AR-G-SS-HT 5/8" 5/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 1.19
10Z-U12AR-T-SS 5/8" 5/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 1.19
10Z-U12AR-T-SS-HT 5/8" 5/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 1.19
10Z-U12LB-G-SS 5/8" 5/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 1.31
10Z-U12LB-T-SS 5/8" 5/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 1.31
10Z-U12LR-G-SS 5/8" 5/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 1.19
10Z-U12LR-G-SS-HT 5/8" 5/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 1.19
10Z-U12LR-T-SS 5/8" 5/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 1.19
10Z-U12LR-T-SS-HT 5/8" 5/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 1.19
12A-U12AB-G-SS 3/4" 3/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 1.31
12A-U12AB-T-SS 3/4" 3/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 1.31
12A-U12AR-G-SS 3/4" 3/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 1.19
12A-U12AR-G-SS-HT 3/4" 3/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 1.19
12A-U12AR-T-SS 3/4" 3/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 1.19
12A-U12AR-T-SS-HT 3/4" 3/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 1.19
12A-U12LB-G-SS 3/4" 3/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 1.31
12A-U12LB-T-SS 3/4" 3/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 1.31
12A-U12LR-G-SS 3/4" 3/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 1.19
12A-U12LR-G-SS-HT 3/4" 3/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 1.19
12A-U12LR-T-SS 3/4" 3/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 1.19
12A-U12LR-T-SS-HT 3/4" 3/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 1.19
12F-U16AB-G-SS 3/4" 3/4" NPT F NPT F Needle Valve Angle Pattern Blunt Grafoil 371 2.67
12F-U16AB-T-SS 3/4" 3/4" NPT F NPT F Needle Valve Angle Pattern Blunt PTFE 232 2.67
12F-U16AR-G-SS 3/4" 3/4" NPT F NPT F Needle Valve Angle Pattern Regulating Grafoil 371 1.82
12F-U16AR-G-SS-HT 3/4" 3/4" NPT F NPT F Needle Valve Angle Pattern Regulating Grafoil 649 1.82
12F-U16AR-T-SS 3/4" 3/4" NPT F NPT F Needle Valve Angle Pattern Regulating PTFE 232 1.82
12F-U16AR-T-SS-HT 3/4" 3/4" NPT F NPT F Needle Valve Angle Pattern Regulating PTFE 649 1.82
12F-U16LB-G-SS 3/4" 3/4" NPT F NPT F Needle Valve Inline Pattern Blunt Grafoil 371 2.67
12F-U16LB-T-SS 3/4" 3/4" NPT F NPT F Needle Valve Inline Pattern Blunt PTFE 232 2.67
12F-U16LR-G-SS 3/4" 3/4" NPT F NPT F Needle Valve Inline Pattern Regulating Grafoil 371 1.82
12F-U16LR-G-SS-HT 3/4" 3/4" NPT F NPT F Needle Valve Inline Pattern Regulating Grafoil 649 1.82
12F-U16LR-T-SS 3/4" 3/4" NPT F NPT F Needle Valve Inline Pattern Regulating PTFE 232 1.82
12F-U16LR-T-SS-HT 3/4" 3/4" NPT F NPT F Needle Valve Inline Pattern Regulating PTFE 649 1.82
12M-U16AB-G-SS 3/4" 3/4" NPT M NPT M Needle Valve Angle Pattern Blunt Grafoil 371 2.67
12M-U16AB-T-SS 3/4" 3/4" NPT M NPT M Needle Valve Angle Pattern Blunt PTFE 232 2.67
12M-U16AR-G-SS 3/4" 3/4" NPT M NPT M Needle Valve Angle Pattern Regulating Grafoil 371 1.82
12M-U16AR-G-SS-HT 3/4" 3/4" NPT M NPT M Needle Valve Angle Pattern Regulating Grafoil 649 1.82
12M-U16AR-T-SS 3/4" 3/4" NPT M NPT M Needle Valve Angle Pattern Regulating PTFE 232 1.82
12M-U16AR-T-SS-HT 3/4" 3/4" NPT M NPT M Needle Valve Angle Pattern Regulating PTFE 649 1.82
12M-U16LB-G-SS 3/4" 3/4" NPT M NPT M Needle Valve Inline Pattern Blunt Grafoil 371 2.67
12M-U16LB-T-SS 3/4" 3/4" NPT M NPT M Needle Valve Inline Pattern Blunt PTFE 232 2.67
12M-U16LR-G-SS 3/4" 3/4" NPT M NPT M Needle Valve Inline Pattern Regulating Grafoil 371 1.82
12M-U16LR-G-SS-HT 3/4" 3/4" NPT M NPT M Needle Valve Inline Pattern Regulating Grafoil 649 1.82
12M-U16LR-T-SS 3/4" 3/4" NPT M NPT M Needle Valve Inline Pattern Regulating PTFE 232 1.82
12M-U16LR-T-SS-HT 3/4" 3/4" NPT M NPT M Needle Valve Inline Pattern Regulating PTFE 649 1.82
12Z-U12AB-G-SS 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 1.31
12Z-U12AB-T-SS 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 1.31
12Z-U12AR-G-SS 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 1.19
12Z-U12AR-G-SS-HT 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 1.19
12Z-U12AR-T-SS 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 1.19
12Z-U12AR-T-SS-HT 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 1.19
12Z-U12LB-G-SS 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 1.31
12Z-U12LB-T-SS 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 1.31
12Z-U12LR-G-SS 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 1.19
12Z-U12LR-G-SS-HT 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 1.19
12Z-U12LR-T-SS 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 1.19
12Z-U12LR-T-SS-HT 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 1.19
12Z-U16AB-G-SS 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 2.67
12Z-U16AB-T-SS 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 2.67
12Z-U16AR-G-SS 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 1.82
12Z-U16AR-G-SS-HT 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 1.82
12Z-U16AR-T-SS 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 1.82
12Z-U16AR-T-SS-HT 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 1.82
12Z-U16LB-G-SS 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 2.67
12Z-U16LB-T-SS 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 2.67
12Z-U16LR-G-SS 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 1.82
12Z-U16LR-G-SS-HT 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 1.82
12Z-U16LR-T-SS 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 1.82
12Z-U16LR-T-SS-HT 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 1.82
16F-U16AB-G-SS 1" 1" NPT F NPT F Needle Valve Angle Pattern Blunt Grafoil 371 2.67
16F-U16AB-T-SS 1" 1" NPT F NPT F Needle Valve Angle Pattern Blunt PTFE 232 2.67
16F-U16AR-G-SS 1" 1" NPT F NPT F Needle Valve Angle Pattern Regulating Grafoil 371 1.82
16F-U16AR-G-SS-HT 1" 1" NPT F NPT F Needle Valve Angle Pattern Regulating Grafoil 649 1.82
16F-U16AR-T-SS 1" 1" NPT F NPT F Needle Valve Angle Pattern Regulating PTFE 232 1.82
16F-U16AR-T-SS-HT 1" 1" NPT F NPT F Needle Valve Angle Pattern Regulating PTFE 649 1.82
16F-U16LB-G-SS 1" 1" NPT F NPT F Needle Valve Inline Pattern Blunt Grafoil 371 2.67
16F-U16LB-T-SS 1" 1" NPT F NPT F Needle Valve Inline Pattern Blunt PTFE 232 2.67
16F-U16LR-G-SS 1" 1" NPT F NPT F Needle Valve Inline Pattern Regulating Grafoil 371 1.82
16F-U16LR-G-SS-HT 1" 1" NPT F NPT F Needle Valve Inline Pattern Regulating Grafoil 649 1.82
16F-U16LR-T-SS 1" 1" NPT F NPT F Needle Valve Inline Pattern Regulating PTFE 232 1.82
16F-U16LR-T-SS-HT 1" 1" NPT F NPT F Needle Valve Inline Pattern Regulating PTFE 649 1.82
16M-U16AB-G-SS 1" 1" NPT M NPT M Needle Valve Angle Pattern Blunt Grafoil 371 2.67
16M-U16AB-T-SS 1" 1" NPT M NPT M Needle Valve Angle Pattern Blunt PTFE 232 2.67
16M-U16AR-G-SS 1" 1" NPT M NPT M Needle Valve Angle Pattern Regulating Grafoil 371 1.82
16M-U16AR-G-SS-HT 1" 1" NPT M NPT M Needle Valve Angle Pattern Regulating Grafoil 649 1.82
16M-U16AR-T-SS 1" 1" NPT M NPT M Needle Valve Angle Pattern Regulating PTFE 232 1.82
16M-U16AR-T-SS-HT 1" 1" NPT M NPT M Needle Valve Angle Pattern Regulating PTFE 649 1.82
16M-U16LB-G-SS 1" 1" NPT M NPT M Needle Valve Inline Pattern Blunt Grafoil 371 2.67
16M-U16LB-T-SS 1" 1" NPT M NPT M Needle Valve Inline Pattern Blunt PTFE 232 2.67
16M-U16LR-G-SS 1" 1" NPT M NPT M Needle Valve Inline Pattern Regulating Grafoil 371 1.82
16M-U16LR-G-SS-HT 1" 1" NPT M NPT M Needle Valve Inline Pattern Regulating Grafoil 649 1.82
16M-U16LR-T-SS 1" 1" NPT M NPT M Needle Valve Inline Pattern Regulating PTFE 232 1.82
16M-U16LR-T-SS-HT 1" 1" NPT M NPT M Needle Valve Inline Pattern Regulating PTFE 649 1.82
16Z-U16AB-G-SS 1" 1" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 2.67
16Z-U16AB-T-SS 1" 1" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 2.67
16Z-U16AR-G-SS 1" 1" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 1.82
16Z-U16AR-G-SS-HT 1" 1" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 1.82
16Z-U16AR-T-SS 1" 1" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 1.82
16Z-U16AR-T-SS-HT 1" 1" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 1.82
16Z-U16LB-G-SS 1" 1" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 2.67
16Z-U16LB-T-SS 1" 1" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 2.67
16Z-U16LR-G-SS 1" 1" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 1.82
16Z-U16LR-G-SS-HT 1" 1" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 1.82
16Z-U16LR-T-SS 1" 1" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 1.82
16Z-U16LR-T-SS-HT 1" 1" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 1.82
4A-U12AB-G-SS 1/4" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 0.51
4A-U12AB-T-SS 1/4" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 0.51
4A-U12AR-G-SS 1/4" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 0.44
4A-U12AR-G-SS-HT 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 0.44
4A-U12AR-T-SS 1/4" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 0.44
4A-U12AR-T-SS-HT 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 0.44
4A-U12LB-G-SS 1/4" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 0.51
4A-U12LB-T-SS 1/4" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 0.51
4A-U12LR-G-SS 1/4" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 0.44
4A-U12LR-G-SS-HT 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 0.44
4A-U12LR-T-SS 1/4" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 0.44
4A-U12LR-T-SS-HT 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 0.44
4A-U6AB-G-SS 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 0.65
4A-U6AB-T-SS 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 0.65
4A-U6AR-G-SS 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 0.53
4A-U6AR-G-SS-HT 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 0.53
4A-U6AR-T-SS 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 0.53
4A-U6AR-T-SS-HT 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 0.53
4A-U6LB-G-SS 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 0.65
4A-U6LB-T-SS 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 0.65
4A-U6LR-G-SS 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 0.53
4A-U6LR-G-SS-HT 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 0.53
4A-U6LR-T-SS 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 0.53
4A-U6LR-T-SS-HT 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 0.53
4F-U12AB-G-SS 1/4" 1/4" Single Ferrule Compression Fitting NPT F Needle Valve Angle Pattern Blunt Grafoil 371 1.03
4F-U12AB-T-SS 1/4" 1/4" Single Ferrule Compression Fitting NPT F Needle Valve Angle Pattern Blunt PTFE 232 1.03
4F-U12AR-G-SS 1/4" 1/4" Single Ferrule Compression Fitting NPT F Needle Valve Angle Pattern Regulating Grafoil 371 0.94
4F-U12AR-G-SS-HT 1/4" 1/4" NPT F NPT F Needle Valve Angle Pattern Regulating Grafoil 649 0.94
4F-U12AR-T-SS 1/4" 1/4" Single Ferrule Compression Fitting NPT F Needle Valve Angle Pattern Regulating PTFE 232 0.94
4F-U12AR-T-SS-HT 1/4" 1/4" NPT F NPT F Needle Valve Angle Pattern Regulating PTFE 649 0.94
4F-U12LB-G-SS 1/4" 1/4" Single Ferrule Compression Fitting NPT F Needle Valve Inline Pattern Blunt Grafoil 371 1.03
4F-U12LB-T-SS 1/4" 1/4" Single Ferrule Compression Fitting NPT F Needle Valve Inline Pattern Blunt PTFE 232 1.03
4F-U12LR-G-SS 1/4" 1/4" Single Ferrule Compression Fitting NPT F Needle Valve Inline Pattern Regulating Grafoil 371 0.94
4F-U12LR-G-SS-HT 1/4" 1/4" NPT F NPT F Needle Valve Inline Pattern Regulating Grafoil 649 0.94
4F-U12LR-T-SS 1/4" 1/4" Single Ferrule Compression Fitting NPT F Needle Valve Inline Pattern Regulating PTFE 232 0.94
4F-U12LR-T-SS-HT 1/4" 1/4" NPT F NPT F Needle Valve Inline Pattern Regulating PTFE 649 0.94
4F-U6AB-G-SS 1/4" 1/4" NPT F NPT F Needle Valve Angle Pattern Blunt Grafoil 371 0.82
4F-U6AB-T-SS 1/4" 1/4" NPT F NPT F Needle Valve Angle Pattern Blunt PTFE 232 0.82
4F-U6AR-G-SS 1/4" 1/4" NPT F NPT F Needle Valve Angle Pattern Regulating Grafoil 371 0.78
4F-U6AR-G-SS-HT 1/4" 1/4" NPT F NPT F Needle Valve Angle Pattern Regulating Grafoil 649 0.78
4F-U6AR-T-SS 1/4" 1/4" NPT F NPT F Needle Valve Angle Pattern Regulating PTFE 232 0.78
4F-U6AR-T-SS-HT 1/4" 1/4" NPT F NPT F Needle Valve Angle Pattern Regulating PTFE 649 0.78
4F-U6LB-G-SS 1/4" 1/4" NPT F NPT F Needle Valve Inline Pattern Blunt Grafoil 371 0.82
4F-U6LB-T-SS 1/4" 1/4" NPT F NPT F Needle Valve Inline Pattern Blunt PTFE 232 0.82
4F-U6LR-G-SS 1/4" 1/4" NPT F NPT F Needle Valve Inline Pattern Regulating Grafoil 371 0.78
4F-U6LR-G-SS-HT 1/4" 1/4" NPT F NPT F Needle Valve Inline Pattern Regulating Grafoil 649 0.78
4F-U6LR-T-SS 1/4" 1/4" NPT F NPT F Needle Valve Inline Pattern Regulating PTFE 232 0.78
4F-U6LR-T-SS-HT 1/4" 1/4" NPT F NPT F Needle Valve Inline Pattern Regulating PTFE 649 0.78
4M-U12AR-G-SS 1/4" 1/4" Single Ferrule Compression Fitting NPT M Needle Valve Angle Pattern Regulating Grafoil 371 0.94
4M-U12AR-G-SS-HT 1/4" 1/4" NPT M NPT M Needle Valve Angle Pattern Regulating Grafoil 649 0.94
4M-U12AR-T-SS 1/4" 1/4" Single Ferrule Compression Fitting NPT M Needle Valve Angle Pattern Regulating PTFE 232 0.94
4M-U12AR-T-SS-HT 1/4" 1/4" NPT M NPT M Needle Valve Angle Pattern Regulating PTFE 649 0.94
4M-U12LR-G-SS 1/4" 1/4" Single Ferrule Compression Fitting NPT M Needle Valve Inline Pattern Regulating Grafoil 371 0.94
4M-U12LR-G-SS-HT 1/4" 1/4" NPT M NPT M Needle Valve Inline Pattern Regulating Grafoil 649 0.94
4M-U12LR-T-SS 1/4" 1/4" Single Ferrule Compression Fitting NPT M Needle Valve Inline Pattern Regulating PTFE 232 0.94
4M-U12LR-T-SS-HT 1/4" 1/4" NPT M NPT M Needle Valve Inline Pattern Regulating PTFE 649 0.94
4M-U6AB-G-SS 1/4" 1/4" NPT M NPT M Needle Valve Angle Pattern Blunt Grafoil 371 0.65
4M-U6AB-T-SS 1/4" 1/4" NPT M NPT M Needle Valve Angle Pattern Blunt PTFE 232 0.65
4M-U6AR-G-SS 1/4" 1/4" NPT M NPT M Needle Valve Angle Pattern Regulating Grafoil 371 0.53
4M-U6AR-G-SS-HT 1/4" 1/4" NPT M NPT M Needle Valve Angle Pattern Regulating Grafoil 649 0.53
4M-U6AR-T-SS 1/4" 1/4" NPT M NPT M Needle Valve Angle Pattern Regulating PTFE 232 0.53
4M-U6AR-T-SS-HT 1/4" 1/4" NPT M NPT M Needle Valve Angle Pattern Regulating PTFE 649 0.53
4M-U6LB-G-SS 1/4" 1/4" NPT M NPT M Needle Valve Inline Pattern Blunt Grafoil 371 0.65
4M-U6LB-T-SS 1/4" 1/4" NPT M NPT M Needle Valve Inline Pattern Blunt PTFE 232 0.65
4M-U6LR-G-SS 1/4" 1/4" NPT M NPT M Needle Valve Inline Pattern Regulating Grafoil 371 0.53
4M-U6LR-G-SS-HT 1/4" 1/4" NPT M NPT M Needle Valve Inline Pattern Regulating Grafoil 649 0.53
4M-U6LR-T-SS 1/4" 1/4" NPT M NPT M Needle Valve Inline Pattern Regulating PTFE 232 0.53
4M-U6LR-T-SS-HT 1/4" 1/4" NPT M NPT M Needle Valve Inline Pattern Regulating PTFE 649 0.53
4Z-U12AB-G-SS 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 0.51
4Z-U12AB-T-SS 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 0.51
4Z-U12AR-G-SS 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 0.44
4Z-U12AR-G-SS-HT 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 0.44
4Z-U12AR-T-SS 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 0.44
4Z-U12AR-T-SS-HT 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 0.44
4Z-U12LB-G-SS 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 0.51
4Z-U12LB-T-SS 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 0.51
4Z-U12LR-G-SS 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 0.44
4Z-U12LR-G-SS-HT 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 0.44
4Z-U12LR-T-SS 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 0.44
4Z-U12LR-T-SS-HT 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 0.44
4Z-U6AB-G-SS 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 0.65
4Z-U6AB-T-SS 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 0.65
4Z-U6AR-G-SS 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 0.53
4Z-U6AR-G-SS-HT 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 0.53
4Z-U6AR-T-SS 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 0.53
4Z-U6AR-T-SS-HT 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 0.53
4Z-U6LB-G-SS 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 0.65
4Z-U6LB-T-SS 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 0.65
4Z-U6LR-G-SS 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 0.53
4Z-U6LR-G-SS-HT 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 0.53
4Z-U6LR-T-SS 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 0.53
4Z-U6LR-T-SS-HT 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 0.53
6A-U12AB-G-SS 3/8" 3/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 0.77
6A-U12AB-T-SS 3/8" 3/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 0.77
6A-U12AR-G-SS 3/8" 3/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 0.69
6A-U12AR-G-SS-HT 3/8" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 0.69
6A-U12AR-T-SS 3/8" 3/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 0.69
6A-U12AR-T-SS-HT 3/8" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 0.69
6A-U12LB-G-SS 3/8" 3/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 0.77
6A-U12LB-T-SS 3/8" 3/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 0.77
6A-U12LR-G-SS 3/8" 3/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 0.69
6A-U12LR-G-SS-HT 3/8" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 0.69
6A-U12LR-T-SS 3/8" 3/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 0.69
6A-U12LR-T-SS-HT 3/8" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 0.69
6Z-U12AB-G-SS 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 0.77
6Z-U12AB-T-SS 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 0.77
6Z-U12AR-G-SS 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 0.69
6Z-U12AR-G-SS-HT 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 0.69
6Z-U12AR-T-SS 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 0.69
6Z-U12AR-T-SS-HT 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 0.69
6Z-U12LB-G-SS 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 0.77
6Z-U12LB-T-SS 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 0.77
6Z-U12LR-G-SS 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 0.69
6Z-U12LR-G-SS-HT 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 0.69
6Z-U12LR-T-SS 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 0.69
6Z-U12LR-T-SS-HT 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 0.69
8A-U12AB-G-SS 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 1.03
8A-U12AB-T-SS 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 1.03
8A-U12AR-G-SS 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 0.94
8A-U12AR-G-SS-HT 1/2" 1/2" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 0.94
8A-U12AR-T-SS 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 0.94
8A-U12AR-T-SS-HT 1/2" 1/2" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 0.94
8A-U12LB-G-SS 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 1.03
8A-U12LB-T-SS 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 1.03
8A-U12LR-G-SS 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 0.94
8A-U12LR-G-SS-HT 1/2" 1/2" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 0.94
8A-U12LR-T-SS 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 0.94
8A-U12LR-T-SS-HT 1/2" 1/2" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 0.94
8A-U16AB-G-SS 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 1.9
8A-U16AB-T-SS 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 2.67
8A-U16AR-G-SS 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 1.59
8A-U16AR-G-SS-HT 1/2" 1/2" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 1.59
8A-U16AR-T-SS 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 1.59
8A-U16AR-T-SS-HT 1/2" 1/2" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 1.59
8A-U16LB-G-SS 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 1.9
8A-U16LB-T-SS 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 1.9
8A-U16LR-G-SS 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 1.59
8A-U16LR-G-SS-HT 1/2" 1/2" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 1.59
8A-U16LR-T-SS 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 1.59
8A-U16LR-T-SS-HT 1/2" 1/2" Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 1.59
8F-U16AB-G-SS 1/2" 1/2" Single Ferrule Compression Fitting NPT F Needle Valve Angle Pattern Blunt Grafoil 371 2.67
8F-U16AB-T-SS 1/2" 1/2" Single Ferrule Compression Fitting NPT F Needle Valve Angle Pattern Blunt PTFE 232 2.67
8F-U16AR-G-SS 1/2" 1/2" Single Ferrule Compression Fitting NPT F Needle Valve Angle Pattern Regulating Grafoil 371 1.82
8F-U16AR-G-SS-HT 1/2" 1/2" NPT F NPT F Needle Valve Angle Pattern Regulating Grafoil 649 1.82
8F-U16AR-T-SS 1/2" 1/2" Single Ferrule Compression Fitting NPT F Needle Valve Angle Pattern Regulating PTFE 232 1.82
8F-U16AR-T-SS-HT 1/2" 1/2" NPT F NPT F Needle Valve Angle Pattern Regulating PTFE 649 1.82
8F-U16LB-G-SS 1/2" 1/2" Single Ferrule Compression Fitting NPT F Needle Valve Inline Pattern Blunt Grafoil 371 2.67
8F-U16LB-T-SS 1/2" 1/2" Single Ferrule Compression Fitting NPT F Needle Valve Inline Pattern Blunt PTFE 232 2.67
8F-U16LR-G-SS 1/2" 1/2" Single Ferrule Compression Fitting NPT F Needle Valve Inline Pattern Regulating Grafoil 371 1.82
8F-U16LR-G-SS-HT 1/2" 1/2" NPT F NPT F Needle Valve Inline Pattern Regulating Grafoil 649 1.82
8F-U16LR-T-SS 1/2" 1/2" Single Ferrule Compression Fitting NPT F Needle Valve Inline Pattern Regulating PTFE 232 1.82
8F-U16LR-T-SS-HT 1/2" 1/2" NPT F NPT F Needle Valve Inline Pattern Regulating PTFE 649 1.82
8M-U16AB-G-SS 1/2" 1/2" Single Ferrule Compression Fitting NPT M Needle Valve Angle Pattern Blunt Grafoil 371 2.67
8M-U16AB-T-SS 1/2" 1/2" Single Ferrule Compression Fitting NPT M Needle Valve Angle Pattern Blunt PTFE 232 2.67
8M-U16AR-G-SS 1/2" 1/2" Single Ferrule Compression Fitting NPT M Needle Valve Angle Pattern Regulating Grafoil 371 1.82
8M-U16AR-G-SS-HT 1/2" 1/2" NPT M NPT M Needle Valve Angle Pattern Regulating Grafoil 649 1.82
8M-U16AR-T-SS 1/2" 1/2" Single Ferrule Compression Fitting NPT M Needle Valve Angle Pattern Regulating PTFE 232 1.82
8M-U16AR-T-SS-HT 1/2" 1/2" NPT M NPT M Needle Valve Angle Pattern Regulating PTFE 649 1.82
8M-U16LB-G-SS 1/2" 1/2" NPT M NPT M Needle Valve Inline Pattern Blunt Grafoil 371 2.67
8M-U16LB-T-SS 1/2" 1/2" NPT M NPT M Needle Valve Inline Pattern Blunt PTFE 232 2.67
8M-U16LR-G-SS 1/2" 1/2" NPT M NPT M Needle Valve Inline Pattern Regulating Grafoil 371 1.82
8M-U16LR-G-SS-HT 1/2" 1/2" NPT M NPT M Needle Valve Inline Pattern Regulating Grafoil 649 1.82
8M-U16LR-T-SS 1/2" 1/2" NPT M NPT M Needle Valve Inline Pattern Regulating PTFE 232 1.82
8M-U16LR-T-SS-HT 1/2" 1/2" NPT M NPT M Needle Valve Inline Pattern Regulating PTFE 649 1.82
8Z-U12AB-G-SS 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 1.03
8Z-U12AB-T-SS 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 1.03
8Z-U12AR-G-SS 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 0.94
8Z-U12AR-G-SS-HT 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 0.94
8Z-U12AR-T-SS 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 0.94
8Z-U12AR-T-SS-HT 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 0.94
8Z-U12LB-G-SS 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 1.03
8Z-U12LB-T-SS 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 1.03
8Z-U12LR-G-SS 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 0.94
8Z-U12LR-G-SS-HT 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 0.94
8Z-U12LR-T-SS 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 0.94
8Z-U12LR-T-SS-HT 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 0.94
8Z-U16AB-G-SS 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 1.9
8Z-U16AB-T-SS 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 1.9
8Z-U16AR-G-SS 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 1.59
8Z-U16AR-G-SS-HT 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 1.59
8Z-U16AR-T-SS 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 1.59
8Z-U16AR-T-SS-HT 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 1.59
8Z-U16LB-G-SS 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 1.9
8Z-U16LB-T-SS 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 1.9
8Z-U16LR-G-SS 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 1.59
8Z-U16LR-G-SS-HT 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 1.59
8Z-U16LR-T-SS 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 1.59
8Z-U16LR-T-SS-HT 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 1.59
M10A-U12AB-G-SS 10 mm 10 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 1.03
M10A-U12AB-T-SS 10 mm 10 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 1.03
M10A-U12AR-G-SS 10 mm 10 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 0.94
M10A-U12AR-G-SS-HT 10 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 0.94
M10A-U12AR-T-SS 10 mm 10 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 0.94
M10A-U12AR-T-SS-HT 10 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 0.94
M10A-U12LB-G-SS 10 mm 10 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 1.03
M10A-U12LB-T-SS 10 mm 10 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 1.03
M10A-U12LR-G-SS 10 mm 10 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 0.94
M10A-U12LR-G-SS-HT 10 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 0.94
M10A-U12LR-T-SS 10 mm 10 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 0.94
M10A-U12LR-T-SS-HT 10 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 0.94
M10Z-U12AB-G-SS 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 1.03
M10Z-U12AB-T-SS 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 1.03
M10Z-U12AR-G-SS 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 0.94
M10Z-U12AR-G-SS-HT 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 0.94
M10Z-U12AR-T-SS 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 0.94
M10Z-U12AR-T-SS-HT 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 0.94
M10Z-U12LB-G-SS 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 1.03
M10Z-U12LB-T-SS 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 1.03
M10Z-U12LR-G-SS 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 0.94
M10Z-U12LR-G-SS-HT 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 0.94
M10Z-U12LR-T-SS 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 0.94
M10Z-U12LR-T-SS-HT 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 0.94
M12A-U12AB-G-SS 12 mm 12 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 1.31
M12A-U12AB-T-SS 12 mm 12 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 1.31
M12A-U12AR-G-SS 12 mm 12 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 1.19
M12A-U12AR-G-SS-HT 12 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 1.19
M12A-U12AR-T-SS 12 mm 12 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 1.19
M12A-U12AR-T-SS-HT 12 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 1.19
M12A-U12LB-G-SS 12 mm 12 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 1.31
M12A-U12LB-T-SS 12 mm 12 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 1.31
M12A-U12LR-G-SS 12 mm 12 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 1.19
M12A-U12LR-G-SS-HT 12 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 1.19
M12A-U12LR-T-SS 12 mm 12 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 1.19
M12A-U12LR-T-SS-HT 12 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 1.19
M12Z-U12AB-G-SS 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 1.31
M12Z-U12AB-T-SS 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 1.31
M12Z-U12AR-G-SS 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 1.19
M12Z-U12AR-G-SS-HT 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 1.19
M12Z-U12AR-T-SS 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 1.19
M12Z-U12AR-T-SS-HT 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 1.19
M12Z-U12LB-G-SS 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 1.31
M12Z-U12LB-T-SS 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 1.31
M12Z-U12LR-G-SS 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 1.19
M12Z-U12LR-G-SS-HT 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 1.19
M12Z-U12LR-T-SS 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 1.19
M12Z-U12LR-T-SS-HT 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 1.19
M12Z-U16AB-G-SS 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 1.9
M12Z-U16AB-T-SS 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 1.9
M12Z-U16AR-G-SS 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 1.59
M12Z-U16AR-G-SS-HT 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 1.59
M12Z-U16AR-T-SS 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 1.59
M12Z-U16AR-T-SS-HT 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 1.59
M12Z-U16LB-G-SS 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 1.9
M12Z-U16LB-T-SS 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 1.9
M12Z-U16LR-G-SS 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 1.59
M12Z-U16LR-G-SS-HT 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 1.59
M12Z-U16LR-T-SS 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 1.59
M12Z-U16LR-T-SS-HT 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 1.59
M20A-U16AB-G-SS 20 mm 20 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 2.67
M20A-U16AB-T-SS 20 mm 20 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 2.67
M20A-U16AR-G-SS 20 mm 20 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 1.82
M20A-U16AR-G-SS-HT 20 mm 20 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 1.82
M20A-U16AR-T-SS 20 mm 20 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 1.82
M20A-U16AR-T-SS-HT 20 mm 20 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 1.82
M20A-U16LB-G-SS 20 mm 20 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 2.67
M20A-U16LB-T-SS 20 mm 20 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 2.67
M20A-U16LR-G-SS 20 mm 20 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 1.82
M20A-U16LR-G-SS-HT 20 mm 20 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 1.82
M20A-U16LR-T-SS 20 mm 20 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 1.82
M20A-U16LR-T-SS-HT 20 mm 20 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 1.82
M20Z-U16AB-G-SS 20 mm 20 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 2.67
M20Z-U16AB-T-SS 20 mm 20 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 2.67
M20Z-U16AR-G-SS 20 mm 20 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 1.82
M20Z-U16AR-G-SS-HT 20 mm 20 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 1.82
M20Z-U16AR-T-SS 20 mm 20 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 1.82
M20Z-U16AR-T-SS-HT 20 mm 20 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 1.82
M20Z-U16LB-G-SS 20 mm 20 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 2.67
M20Z-U16LB-T-SS 20 mm 20 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 2.67
M20Z-U16LR-G-SS 20 mm 20 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 1.82
M20Z-U16LR-G-SS-HT 20 mm 20 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 1.82
M20Z-U16LR-T-SS 20 mm 20 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 1.82
M20Z-U16LR-T-SS-HT 20 mm 20 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 1.82
M25A-U16AB-G-SS 25 mm 25 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 2.67
M25A-U16AB-T-SS 25 mm 25 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 2.67
M25A-U16AR-G-SS 25 mm 25 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 1.82
M25A-U16AR-G-SS-HT 25 mm 25 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 1.82
M25A-U16AR-T-SS 25 mm 25 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 1.82
M25A-U16AR-T-SS-HT 25 mm 25 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 1.82
M25A-U16LB-G-SS 25 mm 25 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 2.67
M25A-U16LB-T-SS 25 mm 25 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 2.67
M25A-U16LR-G-SS 25 mm 25 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 1.82
M25A-U16LR-G-SS-HT 25 mm 25 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 1.82
M25A-U16LR-T-SS 25 mm 25 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 1.82
M25A-U16LR-T-SS-HT 25 mm 25 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 1.82
M25Z-U16AB-G-SS 25 mm 25 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 2.67
M25Z-U16AB-T-SS 25 mm 25 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 2.67
M25Z-U16AR-G-SS 25 mm 25 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 1.82
M25Z-U16AR-G-SS-HT 25 mm 25 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Regulating Grafoil 649 1.82
M25Z-U16AR-T-SS 25 mm 25 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 1.82
M25Z-U16AR-T-SS-HT 25 mm 25 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 1.82
M25Z-U16LB-G-SS 25 mm 25 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 2.67
M25Z-U16LB-T-SS 25 mm 25 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 2.67
M25Z-U16LR-G-SS 25 mm 25 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 1.82
M25Z-U16LR-G-SS-HT 25 mm 25 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 1.82
M25Z-U16LR-T-SS 25 mm 25 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 1.82
M25Z-U16LR-T-SS-HT 25 mm 25 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 1.82
M6A-U6AB-G-SS 6 mm 6 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 0.65
M6A-U6AB-T-SS 6 mm 6 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 0.65
M6A-U6AR-G-SS 6 mm 6 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 0.53
M6A-U6AR-G-SS-HT 6 mm 6 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 0.53
M6A-U6AR-T-SS 6 mm 6 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 0.53
M6A-U6AR-T-SS-HT 6 mm 6 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 0.53
M6A-U6LB-G-SS 6 mm 6 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 0.65
M6A-U6LB-T-SS 6 mm 6 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 0.65
M6A-U6LR-G-SS 6 mm 6 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 0.53
M6A-U6LR-G-SS-HT 6 mm 6 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 0.53
M6A-U6LR-T-SS 6 mm 6 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 0.53
M6A-U6LR-T-SS-HT 6 mm 6 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 0.53
M6Z-U6AB-G-SS 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 0.65
M6Z-U6AB-T-SS 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 0.65
M6Z-U6AR-G-SS 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 0.53
M6Z-U6AR-G-SS-HT 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 0.53
M6Z-U6AR-T-SS 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 0.53
M6Z-U6AR-T-SS-HT 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 0.53
M6Z-U6LB-G-SS 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 0.65
M6Z-U6LB-T-SS 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 0.65
M6Z-U6LR-G-SS 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 0.53
M6Z-U6LR-G-SS-HT 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 0.53
M6Z-U6LR-T-SS 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 0.53
M6Z-U6LR-T-SS-HT 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 0.53
M8A-U6AB-G-SS 8 mm 8 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 0.65
M8A-U6AB-T-SS 8 mm 8 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 0.65
M8A-U6AR-G-SS 8 mm 8 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 0.53
M8A-U6AR-G-SS-HT 8 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 0.53
M8A-U6AR-T-SS 8 mm 8 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 0.53
M8A-U6AR-T-SS-HT 8 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 0.53
M8A-U6LB-G-SS 8 mm 8 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 0.65
M8A-U6LB-T-SS 8 mm 8 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 0.65
M8A-U6LR-G-SS 8 mm 8 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 0.53
M8A-U6LR-G-SS-HT 8 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 0.53
M8A-U6LR-T-SS 8 mm 8 mm Single Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 0.53
M8A-U6LR-T-SS-HT 8 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 0.53
M8Z-U6AB-G-SS 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt Grafoil 371 0.65
M8Z-U6AB-T-SS 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Blunt PTFE 232 0.65
M8Z-U6AR-G-SS 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 371 0.53
M8Z-U6AR-G-SS-HT 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating Grafoil 649 0.53
M8Z-U6AR-T-SS 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 232 0.53
M8Z-U6AR-T-SS-HT 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Angle Pattern Regulating PTFE 649 0.53
M8Z-U6LB-G-SS 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt Grafoil 371 0.65
M8Z-U6LB-T-SS 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Blunt PTFE 232 0.65
M8Z-U6LR-G-SS 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 371 0.53
M8Z-U6LR-G-SS-HT 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating Grafoil 649 0.53
M8Z-U6LR-T-SS 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 232 0.53
M8Z-U6LR-T-SS-HT 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting Needle Valve Inline Pattern Regulating PTFE 649 0.53
