Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings快速接头

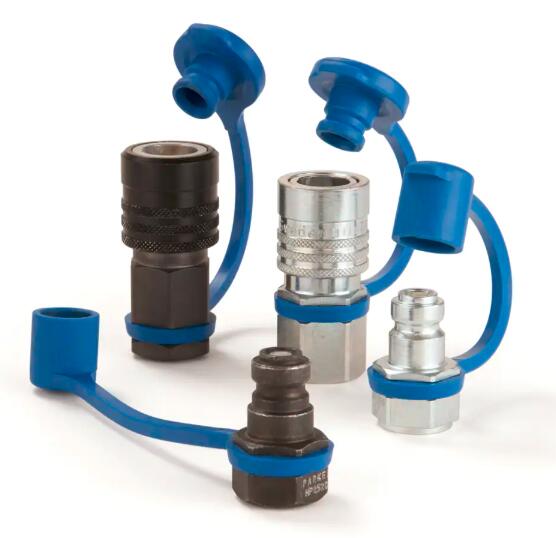

High Pressure Quick Coupling with Parker Profile, Series HP
HP 系列高压液压快换接头，符合派克标准结构

该系列液压快换接头本体尺寸为1/4"，用于高压液压应用场合，耐压可达1500 bar。该系列快换接头符合派克结构设计。 High pressure quick coupling with body size 1/4" for high pressure applications up to 1500 bar. Coupling system with Parker profile.

派克HP系列高压快换接头是为了工业机械设备，测试设备，急救设备，千斤顶，以及扭力扳手等应用设计的。 Parker's High Pressure Quick Coupling Series HP were specially developed for use in industrial machinery, test equipment, rescue equipment, bolt tensioning, torque wrenches etc.

HP1000 以及 HP1500系列可以选择带套筒锁或者不带套筒锁形式。HP 系列是无溢流阀芯形式，在断开的时候，不会有油溢流，在连接的时候，也不会有空气侵入到管路系统。 The couplings of HP1000 and HP1500 can be supplied either with or without additional safety lock. Series HP is a dry break coupling system - no oil loss during disconnection and no inclusion of air during connection.

High Pressure Quick Coupling with Parker Profile, Series HP

市场Markets:
- Rescue
- Industrial
- 救援设备
- 工业液压

特点/优势Features/Benefits:
- High flow as a result of optimised valve design
- Dry break – no oil loss during disconnection and no inclusion of air during connection
- Plug can withstand static pressure disconnected up to full working pressure
- Parker Tema high pressure couplings are supplied with dust caps inclusive
- 阀芯优化设计，因此能够达到高流量。
- 洁净断开技术，断开时不会有油溢流，连接时也不会有空气侵入系统
- 断开后，阳接头可承受达到工作压力的静压
- 派克Tema高压快换接头，供货时带防尘帽

应用Applications:
- High pressure tools
- Rescue equipment
- Torque wrenches
- Hydraulic high pressure pumps
- Bolt tensioning devices
- 高压工具
- 救援设备
- 扭力扳手
- 高压液压泵
- 千斤顶设备

Technical Specifications

High Pressure Quick Coupling with Parker Profile, Series HP 型号
