Parker派克 7395系列E-Z FORM GS数据中心液冷管
Parker派克 E-Z Form GS Suction Hose, General Service, Series 7395

PARKER 7395系列E-Z Form GS通用波纹吸油软管，为许多应用中空气，温和化工制品和水的传输而设计，其耐热温度可达+125°C，工作压力可达75psi。 E-Z Form GS Greek Corrugated General Service Suction Hose is flexible hose designed for transfer of air, coolant, mild chemicals and water in industrial and mobile applications to 257°F and 75 psi, Series 7395 软管产品是用于液冷数据中心管路，产品与去离子水、杀菌剂和防锈剂、水/丙二醇混合物(PG25)组成的高性能冷却液兼容，软管用于液冷却系统中流体在储存器和计算机服务器刀片之间的循环。服务器刀片内部的冷却管路基于制造商要求。

派克7395系列E-Z Form GS通用波纹吸油软管，在各种低压的发动机冷却系统应用中，尤其是管路布置要求软管柔韧性出色的狭小空间的应用，能表现出卓越的产品性能。该软管重量轻，希腊式波纹结构是昂贵的按单生产成形软管的经济替代品。7395系列抗挤压防扭结，流体流动畅通无阻，在管路布置安装过程中具有卓越的柔韧性，大大减轻了操作者的劳动量，并且其耐磨耐气候等特性都大大彰显了软管的产品性能。Parker's Series 7395 E-Z Form GS Greek Corrugated General Service Flexible Suction Hose provides excellent service across a wide variety of low pressure engine coolant transfer applications that require extreme hose flexibility where tight routing is a challenge. This molded coolant hose is lightweight, has a Greek corrugated construction, and provides an economical alternative to expensive made-to-order formed hose. Series 7395 is crush resistant and kink resistant for unimpeded flow, chemical resistant, offers superior flexibility for easy handling and installer/operator convenience, and is resistant to abrasion and weathering for maximum performance.

Parker派克 E-Z Form GS Suction Hose, General Service, Series 7395
7092 and 7093 Series General-Purpose Air and Water Hose
Parker GST II hose series 7092 and 7093 are general-purpose air and water rubber hose?

市场Markets:

- General Industrial
- Transportation
- 一般工业
- 交通运输

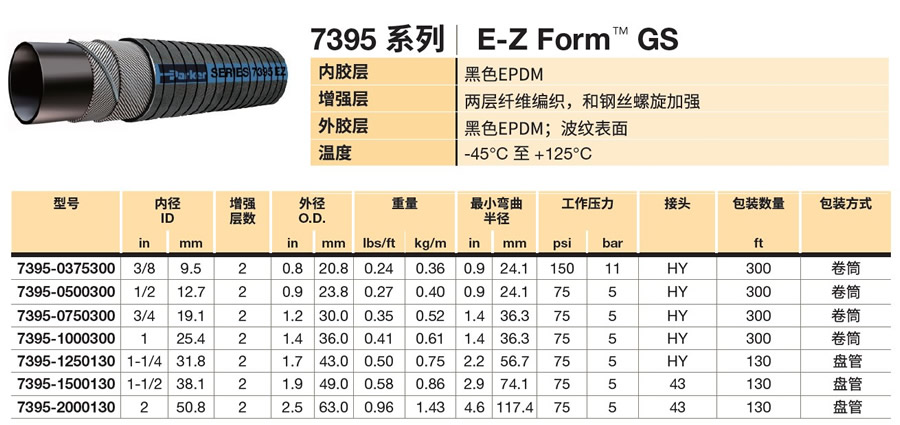

7395系列E-Z Form

内胶层：黑色EPDM
增强层：两层纤维编织，和钢丝螺旋加强
外胶层：黑色EPDM;波纹表面
温度： 零下45°C 至+125°C

特点/优势Features/Benefits:

- Tube: Black EPDM for high temperature coolant resistance to 257°F.
- Reinforcement: Multiple textile braids or plies for strength and durability, and a wire helix for full suction capability and a path to conduct a static charge to ground.
- Cover: Black EPDM for abrasion and heat resistance and durability.
- Couplings: Qualified with steel crimp couplings for a durable, safe and secure connection.
- Lengths: Available in optional 25-foot coils, 130-foot coils or 300-foot reels for application/inventory efficiency and versatility.
- 芯管：黑色EPDM橡胶耐高温，其耐温可达+125°C。
- 增强层：多层纤维编织或缠绕提高软管的耐压能力和经久耐用，并且一根螺旋钢丝不但实现了软管耐全真空的能力，而且还提供了将静电传导至大地的通道。
- 外胶层：黑色EPDM橡胶耐磨、耐热且持久耐用。
- 软管接头：经认证能与碳钢扣压式接头匹配，实现总成连接的持久耐用和安全稳定。
- 长度：可提供25英尺一卷，130英尺一卷和300英尺一卷三种选择，方便客户根据现场实际应用和库存的有效管理。

应用Applications:

> media
- Air
- Coolant
- Mild chemicals
- Water
>媒体
-空气
-冷却剂
-温和化学-水

> usage
- Coolant lines
- Drain lines
- Industrial vacuum equipment/systems
- Buses
- Cranes
- Heavy duty trucks
- Mobile off-road equipment
>用法
-冷却液管
-排水管
-工业真空设备/系统
-公共汽车
-起重机
-重型卡车
-移动越野设备

Industry Standards:
- SAE J20R2-D1 performance

Safety/Technical:
- Design Factor: 4:1
- Do not drag across sharp edges or highly abrasive surfaces.

Warnings:
- Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.

E-Z FORM GS | Parker 7395 Series
E-Z FORM GS - General Service Hose SAE J20R2-D1 Performance

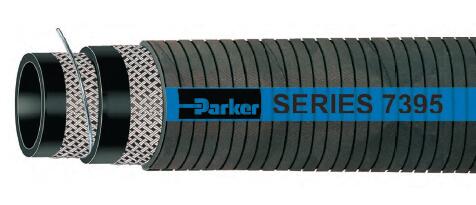

7395系列是一种非常柔软，轻便的低压软管，设计用于处理空气，冷却剂，温和的化学药品和水。软管结构包括可抵抗常用冷却液混合物的管，可提供充分吸力/真空能力的钢丝螺旋线以及将静电荷传导至地面的路径，以及可耐磨损，耐温和化学药品，耐高温的盖和臭氧。希腊独特的瓦楞纸板皱纹紧紧且精确设计，提供小的弯曲力，出色的抗扭结性和大的灵活性，易于处理。7395系列能够通过狭窄的空间进行布线，在这些空间中通常可能需要使用成型的软管。 Series 7395 is an extremely flexible, lightweight low pressure hose designed to handle air, coolant, mild chemicals and water. The hose construction incorporates a tube that is resistant to commonly used coolant mixtures, a wire helix that provides full suction/ vacuum capability and a path to conduct a static electrical charge to ground, and a cover that is resistant to abrasion, mild chemicals, heat and ozone. The unique Greek cover corrugations are tightly pitched and precision-engineered, providing minimal force-to-bend, superior kink resistance, and maximum flexibility for ease of handling. Series 7395 is capable of being routed through confined spaces where formed hose might normally be required.

Parker E-Z FORM GS Sizes & Specifications尺寸和规格：

Tube: Black EPDM
Reinforcement: Multiple textile plies with wire helix
Cover: Black EPDM; Greek corrugated finish
Temp. Range: -40°F to +257°F (-40°C to +125°C)
Brand Method: Black text on blue stripe
Brand Example: PARKER SERIES 7395 E-Z? FORM GS HOSE 75 PSI MAX WP
Design Factor: 4:1Industry Standards: SAE J20R2-D1 performance
Applications: Air, coolant, mild chemicals, water. Coolant systems, drain lines, vacuum service. SAE-performance in engine coolant service, general industrial
Vacuum: Full
Packaging:
1/2" through 1": 25-ft coils in cartons; nominal 300-ft reels, 5-pc max, 25-ft min
1-1/8" through 4": Coils

灯管：黑色EPDM
补强：多个带有金属丝螺旋的纺织层
封面：黑色EPDM；希腊瓦楞纸
温度 范围： -40°F至+ 257°F（-40°C至+ 125°C）
品牌方法：蓝色条纹上的黑色文字
品牌示例： PARKER系列7395 EZ?FORM GS软管75 PSI MAX WP
设计系数： 4：1行业标准：SAE J20R2-D1性能
应用范围：空气，冷却剂，温和化学品，水。冷却液系统，排水管，真空服务。SAE在一般工业发动机冷却液服务中的性能
真空度：满
打包：
1/2“至1”： 25英尺的纸箱卷；标称300英尺卷轴，max.5个，min.25英尺
1-1 / 8“至4”：线圈

Parker派克 E-Z Form GS Suction Hose, General Service, Series 7395软管型号
