Parker Pressure Relief Valves

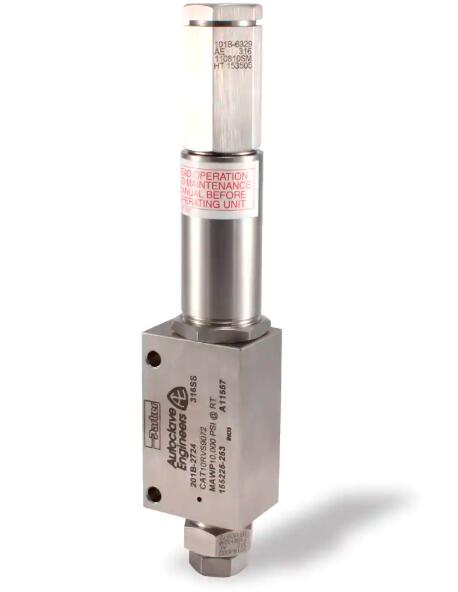

RVS 系列 1380 bar 溢流阀 Relief Valve, RVS Series - 20,000 PSI

派克Autoclave的RVS系列安全阀为设定压力从1500磅/平方英寸（103巴）到20000磅/平方英寸（1378巴）提供可靠的气体排放。该阀门的软阀座设计提供了气密性密封，可重复弹出和重新密封能力。 Parker Autoclave's RVS Series relief valves provide reliable venting of gases for set pressures from 1,500 psi (103 bar) to 20,000 psi (1378 bar). The valve's soft seat design provides bubble tight sealing, repeatable pop-off, and reseat capability.

Parker Autoclave的RVS系列溢流阀采用软座设计，可在1500 psi (103 bar)至20000 psi(1378 bar)的设定压力下安全稳定地排放气体，工作温度范围为32°F(0°C)到204°C(400°F)，软座设计包括了气密密封，可重复弹出和复位，此外，软座阀提供比金属座安全阀更高的循环寿命。 Parker Autoclave's RVS Series relief valves are designed with a soft seat design for reliable venting of gases at set pressures from 1500 psi (103 bar) to 20000 psi (1378 bar). The operating temperature range is 32°F (0°C) to 400°F (204°C). The soft seat design provides bubble tight sealing, repeatable pop-off, and reseat. Additionally, soft seat valves provide a higher cycle life than metal seat relief valves.

这些精密溢流阀为压力气体系统而设计，无泄漏是其中非常关键的。此溢流阀不推荐用液氮或液态二氧化碳，这些液氮和二氧化碳在液态低温时会产生气体。它们的设计都是按比例增加压力。因此，不推荐用于要求在设定压力下立即进行全阀门流动的应用(如分解，聚合等)。溢流阀的全流量定义为设定压力的10％。 These precision relief valves are designed for pressure gas systems, where zero leakage is critical. They are not recommended for liquid nitrogen or liquid carbon dioxide, which produce gas at cryogenic temperatures upon relief. They are designed to open proportionally to increasing pressure. Therefore, they are not recommended for applications requiring immediate full valve flow at set pressure (such as decompositions, polymerizations, etc.). Full flow of relief valve is defined at 10% over set pressure.

选项:高压灭菌器工程师可以根据特殊订单提供各种进口和出口连接。 Options: Autoclave Engineers can supply various inlet and outlet connections on special order.

警告 CAUTION:
1. Parker Autoclave泄压阀是预先设定的并且是工厂密封的。如果密封被客户破坏，保修是无效的。 Parker Autoclave relief valves are preset and factory sealed. Warranty is voided if seal is broken by customer.
2. 系统工作压力不应超过安全阀设定压力的90％。超过这个工作压力可能会导致渗漏，导致插头和底座损坏。 Maximum system operating pressure should not exceed 90% of relief valve set pressure. Operating pressures in excess of this may cause weepage resulting in damage to the plug and seat.

RVS 系列 1380 bar 溢流阀 Relief Valve, RVS Series - 20,000 PSI

市场Markets:

- Oil and Gas
- Petrochemical
- Chemical
- Research
- 油和气
- 石化
- 化学品
- 研究

特点/优势Features/Benefits:

- Standard models of Relief Valves are constructed of 316 stainless steel with selected components
- made of anti-galling stainless steel material for optimum economy and ruggedness.
- Designed with 9/16” Parker Autoclave Engineers Medium Pressure inlet connections. The outlet connection on all models is a female 3/4” NPT. While adapters to other sizes and connection types are available, they must be sized for specific flow requirements.
- Orifice diameters range from .062 (1.57mm) to .312” (7.92mm).
- Designed to open as a function of increasing system pressure. Proper spring selection assures repeatability of opening, full lift and flow, and reseat pressures.
- Materials engineering and stringent quality control procedures combine to assure the highest quality, reliability and service life. Each valve is preset and factory sealed to ensure proper valve operation.
- Unique seat construction plus over-the-nozzle guiding and proper selection of materials permits standard set pressures to 75,000 psi. (5171 bar)
- Designed to provide bubble tight shut off of gases.
- Engineered to perform with fewer basic components, RVS valves facilitate minimum stocking of spare parts and ease of maintenance
- Available with CE Mark. SOG option available upon request.
- 安全阀的标准型号由316不锈钢制成，并带有选定的部件
- 抗磨损不锈钢材料制成，经济耐用，坚固耐用。
- 采用”9/16” Parker 高压灭菌器工程师中压入口连接设计。出口连接均为 ”3/4 ”NPT内螺纹。尽管其他尺寸和连接类型的适配器都可用，但应根据特定的流量要求进行调整。
- 孔径范围从.062(1.57mm)到.312”(7.92mm)。
- 随着系统压力的增加而打开。正确的选择弹簧保障其开启，完全升降和流动的可重复性，以及重置压力。
- 材料工程和严格的质量控制程序相结合，以获得更高的质量，稳定性和使用寿命。每个阀门都预先设定好并在出厂前密封，以保障阀门正常工作。
- 底座结构，加上喷嘴引导和适当的材料选择，可使标准设定压力达到75,000 psi。(5171bar)
- 设计用于提供气密性气体。
- RVS阀的设计可以减少基本部件的使用，从而减少备件的存放量，并便于维护。
- 提供 CE 标志，SOG 选项可根据要求提供。

应用Applications:

- Pressure Gas Systems
- Cryogenic systems
- Steam Handling Systems
- Medium Pressure Fluid Handling Systems
- 压力气体系统
- 低温系统
- 蒸汽处理系统
- 中压流体输送系统

Technical Specifications

Relief Valve, RVS Series - 20,000 PSI 型号
