Parker 针阀
Parker Needle Valves

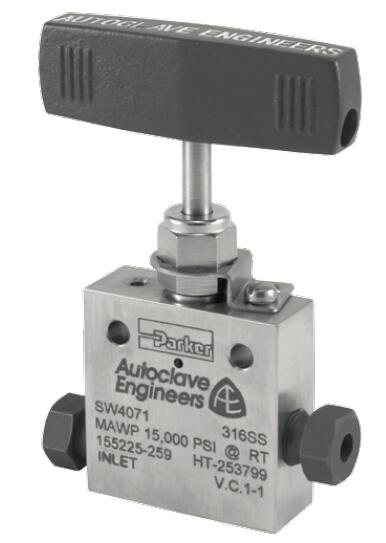

SW系列针阀 Needle Valves, SW Series - 15,000 PSI

派克的 Autoclave SW 系列针型阀是设计为高流量应用，带有不旋转阀杆的针型阀，工作压力为 15,000 psi（1034 bar）。钢管连接采用派克Autoclave Speed Bite单卡套设计。 Parker Autoclave's SW Series needle valves are a non-rotating rising stem design, with working pressures to 15,000 psi (1034 bar). These high flow valves are available in 316 Stainless Steel and utilize the Speed Bite single ferrule connection.

派克的 Autoclave SW系列针型阀是设计为高流量应用，带有不旋转阀杆的针型阀，工作压力为15000 psi（1034 bar）。派克Autoclave高压钢管尺寸范围从1 / 8“到1 / 2”可选。钢管连接采用派克Autoclave Speed Bite单卡套设计，操作温度0°F 到650°F（17.8°C 到343°C）。316不锈钢阀体结构，其他材质选项可选。除了这些阀门的许多特性外，这些阀门还可以在应用场合提供稳定和无故障的服务。 Parker Autoclave's SW Series needle valves are designed as a high flow, non-rotating rising stem valve, with working pressures to 15,000 psi (1034 bar). The Parker Autoclave tubing sizes range from 1/8"" to 1/2"". Tubing connections utilizes Parker Autoclave Speed Bite single ferrule design. Operating temperatures from 0°F to 650°F (-17.8°C to 343°C). 316 stainless steel construction, other options available. Along with their many features these valves provide dependable and trouble free service in wide variety of applications.

SW系列针阀 Needle Valves, SW Series - 15,000 PSI

市场Markets:

- Oil and Gas
- Petrochemical
- Chemical
- 石油和天然气
- 石化
- 化学

特征Features:

- SW Series valve design provides increased flow capabilities
- Tubing sizes from 1/8” to 1/2”.
- Rising stem/barstock body design.
- Non-rotating stem prevents stem/seat galling.
- Metal-to-metal seating achieves bubble-tight shutoff, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- PTFE encapsulated packing provides dependable stem and body sealing.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
- Choice of Vee or Regulating stem tips.
- Available in five body patterns.
- SW系列阀门设计提供了更高的流量能力
- 钢管尺寸从1/8英寸到1/2英寸。
- 上下运动的阀杆设计/棒料本体设计。
- 非旋转的阀杆大幅降低阀杆与阀座之间的磨损。
- 金属对金属阀座实现气密性关闭，延长的阀杆/阀座在磨料流体中的寿命，更大的耐久性，可重复开/关循环和优良的耐腐蚀性。
- 聚四氟乙烯封装提供稳定的阀杆和阀体密封。
- 选择阀杆套筒和填料压盖材料，以延长螺纹循环寿命和降低手柄扭矩。
- 锥形阀头或调节型阀头选项可选。
- 有五种阀体流道类型。

应用Applications:

- Medium Pressure Skid Panels
- Chemical Injection
- Medium Pressure Fluid Handling Systems
- Test Benches
- 中压橇块，或面板设计
- 化学注射模块
- 中压流体处理系统
- 试验台

Technical Specifications

Needle Valves, SW Series - 15,000 PSI 型号
