Parker 球阀
Parker Ball Valves

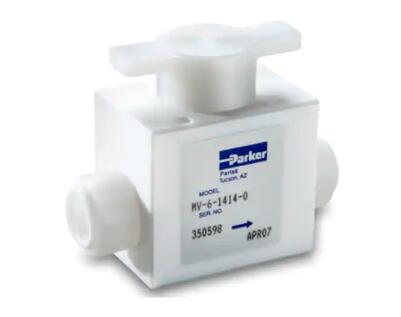

超净应用（UHP）-PTFE含氟聚合物手动球阀（尺寸高达1英寸）-MV-6 系列PTFE UHP Manual Ball Valve (sizes up to 1 inch) – MV-6 Series

派克MV-6系列是手动操作球阀,用于超高纯度和腐蚀性化学品分配系统,包括半导体制造和过程仪表应用.没有O形圈浮球保证在工作压力下气密密封和无泄漏操作,真空环境到高达120 psig工作压力可用The MV-6 Series PTFE Manual Ball Valve offers high cycle life and exceptional resistance to corrosion. It is designed full port for minimal flow restriction and is ideal for use in aggressive chemical applications (up to 120 psig).

市场应用Markets:

- Semiconductor
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial
- 半导体生产
- 分析实验室
- 药物分析，生产
- 生物危害
- 航空航天
- 工业生产

特点/优势Features/Benefits:

- Ideal for use in aggressive and/or corrosive fluid handling systems, including ultra high purity and process instrumentation applications
- Designed full port for minimal flow restriction
- Available in 1/4 inch, 1/2 inch, and 1 inch sizes
- Modified machined PTFE body offers high cycle life
- Ambient temperature range: +41°F to +104° F (+5°C to +40° C)
- Fluid temperature range: +41°F to +104° F (+5°C to +40° C)
- Cv ranges from 1.88 to 28.06 depending on orifice size
- Fully functional from vacuum to 120 psig
- 适用于苛刻工况或腐蚀性流体处理系统，包括超高纯度和过程仪表应用
- 为更小流量限制设计，全开口设计
- 适用于1/4英寸、1/2英寸和1英寸尺寸
- 改进的机加工聚四氟乙烯阀体提供高循环寿命
- 环境温度范围：+41°F至+104°F（+5°C至+40°C）
- 流体温度范围：+41°F至+104°F（+5°C至+40°C）
- CV值范围从1.88到28.06不等，取决于孔口尺寸
- 全功能设计从真空到120psi工况可用

典型应用Applications:

- Corrosive liquids
- Drains
- Desalination Plants
- Process Instrumentation
- 腐蚀性液体
- 排放管路
- 海水淡化厂
- 工艺仪表

PTFE UHP Manual Ball Valve (sizes up to 1 inch) – MV-6 Series

Technical Specifications

PTFE UHP Manual Ball Valve (sizes up to 1 inch) – MV-6 Series 型号
