数据中心液冷流体连接器 热管理 Thermal Management
热能和冷却的流体处理解决方案Fluid Handling Solutions for Tempering & Cooling
流体连接器热管理概述OVERVIEW OF FLUID CONNECTORS THERMAL MANAGEMENT



派克在以下列出的所有市场和行业中,在热管理解决方案方面拥有广泛的专业知识。无论您处于哪个市场,派克都有可以说您所在行业语言的人,可以帮助您找到适合您独特要求的解决方案。流体连接器集团的解决方案包括流体连接器,快速接头,软管产品等等。无论您的应用是什么,我们的专家都将通过全面的支持和久经考验的知识,随时帮助您解决严峻的热管理挑战。Parker has broad expertise in thermal management solutions in all of the markets and industries listed below. No matter what market you are in, Parker has someone that can speak the language of your industry and help you find a solution that works for your unique set of requirements. Fluid Connectors Group solutions include fluid connectors, quick couplings, hose products and more. And no matter your application, our experts are ready to help you solve your toughest thermal management challenges, with comprehensive support and time-tested knowledge.



为帮助您解决热问题并保持应用程序保持凉爽,Parker Hannifin的流体连接器部门创建了完整的热管理产品组合,其中包括经验证的产品,可以吸收热量并将热量从关键部位转移出去。To help you address thermal issues and keep your applications keep cool, Parker Hannifin’s Fluid Connectors Groups created a full portfolio of thermal management products with proven products to absorb and redirect heat away from critical parts.

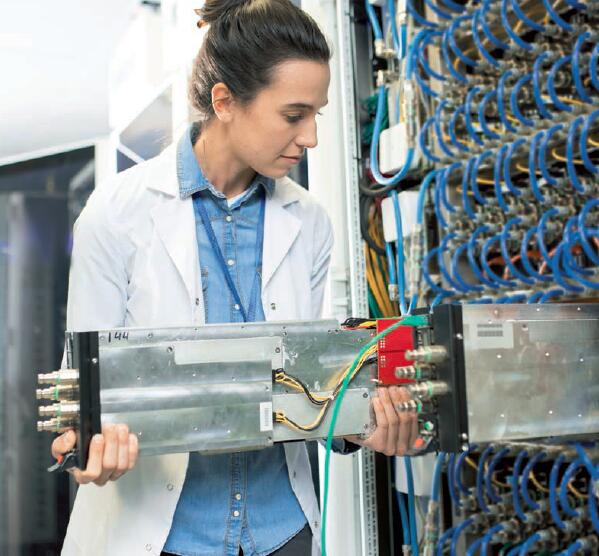

数据中心液冷软管





随着对效率和可持续性的需求不断增加,在电子产品中实现冷却的方法也在不断变化。电子设备中的热量管理已日益成为优化性能的挑战之一。凭借我们数十年来在电子和半导体行业专业知识方面的经验,我们的产品组合为各种规模或复杂性的任务提供了合适的产品。因此,高端应用程序就像简单,直接的生产过程一样容易实现,而速度和成本效益至关重要。Methods for achieving cooling in Electronics are changing along with the industry as the demand for efficiency and sustainability continues to increase. Managing heat in electronics has increasingly become one of the biggest challenges in optimizing performance. Thanks to our decades of experience in Electronics and Semiconductor industry expertise, our portfolio offers the right products for tasks of any size or complexity. High-end applications are thus just as simple to implement as simple, straightforward production processes where speed and cost-effectiveness are vital.



派克的工业热管理产品包括几乎整个行业的设备和系统的加热,冷却,温度和湿度控制。 无论是标准解决方案还是定制解决方案。您可以依靠我们的专业知识和专业支持-从第一次询价到计划,工程和验证再到成品-均来自一个来源。通过60多年的经验积累的专业知识,我们代表着高品质的产品。Parker industrial thermal management offerings include heating, cooling, temperature, and humidity control of equipment and systems in almost all areas of the industry. Whether standard or custom-designed solutions. You can rely on our expertise and professional support - right through from the first inquiry via planning, engineering, and validation to the finished product - all from one source. With our specialist knowledge acquired through more than 60 years of experience, we stand for top-quality products.



液冷服务器 数据中心 服务器冷却技术 服务器散热 , 液冷快速连接接头,液冷快速连接器 电子设备液冷接头 , 液冷快速接头 , 液冷连接器及接头 液体冷却 ,没式液冷接头,快速接头、液冷接头、管件总成, 半导体行业液冷不锈钢快速接头,液体循环管道与快速接头 液冷接头HPC以及数据中心的产品技术 电子设备液冷系统,冷板式液冷接头 , 数据中心液冷散热液冷接头,液冷散热 , 提供数据中心机房一站式液冷解决方案,包括液冷连接器、液冷板、液冷管路、分水器和液冷源,提供高效的一次侧和二次侧整体解决方案。数据中心液冷管路连接器 , 液冷快速连接器,液冷快速连接器 ,冷板式液冷接头定制性价比出众 , Liquid Cooled Cold Plates , Liquid Cold Plates , Custom Cooling Plates ,Liquid Cooling Cold Plate,Cold Plates , Advanced Thermal Solutions,Liquid cooling cold plate , CoolingHouse , Quick Disconnect Couplings - Liquid Cooling Solutions , Liquid Cooling Connectors and Fittings,Quick Connect Shut-Off Couplings - Liquid Cooling Solutions,Liquid Cooling Couplings , Parker Quick Coupling Division, Blind Mate Connectors, Quick and dry disconnect couplings,LIQUID COOLING CONNECTIONS. , Blind-Mate Quick Disconnect Couplings



市场背景

- 热管理持续受到关注
- 液冷循环散热效率比风高 30 倍
- 风冷需要更多的电力消耗,特别在一些缺地区问题尤为突出
- 模块化的液冷管路越来多应用于计算机产业
- 由于电子元器件的原因,快换连接必须是 0泄露,现在只有 少数供应商可以满足这个要求







市场特点

要求:

-在热管理应用中的快换产品必须满足 高兼容性的要求 ,针对介质以及工作环境,机械性能也要保证坚固耐用。
-零液体泄漏是电子行业必须的要求,保证安装的安全性。



派克的解决方案 :

-派克的 TM 应用快换提供低压降特性,保证满足减少能量损耗 ,及紧凑的安装控件
-特殊的内部设计保证在多次连续接及断开情况下,无流体损失,保护电子元器件的安全。特殊设计也可以让电子模块能够快速连接并锁定
-高兼容材质可以被用 于严苛的机械应用











标准产品系列

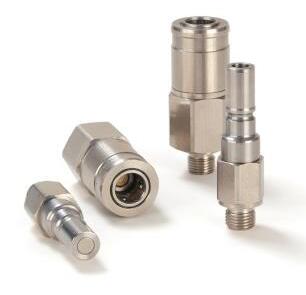

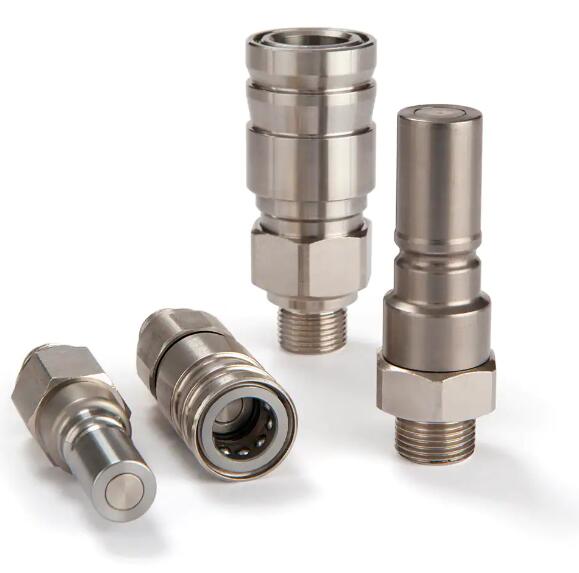

NSI-Series
-在连接和断开过程中无滴漏
-低压降
-针对冷却应用的先进内部设计
-出色的抗振动和机械应力
-可以和 Staubli Staubli的CBI 系列互换
-可提供 直径 3.00 直径 3.00 直径 3.00 –直径6.00直径6.00 -直径9.00 直径9.00 – 直径12.00 mm直径12.00 mm 直径12.00 mm直径12.00 mm
-介质: 水乙二醇,热交换油酯类
-压力: max. 20 bar
-应用案例:车载电子冷却,机引擎或变压器,激光
NSP-Series -插入即连接的设计,可单手操作
-在连接和断开过程中无滴漏
-低压降
-出色的抗振动和机械应力
-可以和 Staubli Staubli的CBI 系列互换
-可提供 直径 6.00 直径 6.00 直径 6.00 – 直径9.00 直径9.00 – 直径12.00 mm直径12.00 mm 直径12.00 mm
-介质 : 水乙二醇,热交换油酯类
-压力 : max. 20 bar
-应用案例 : 模具温控,激光冷却变压器
NSE-Series
-在连接和断开过程中无滴漏
-大流量 (压降 < 1 bar < 1 bar 当在流量 180l/min 180l/min 条件下 )
-紧凑型设计
-可提供 直径 16.00 直径 16.00 直径 16.00 –直径 19.00直径 19.00 直径 19.00 -直径25.00 mm直径25.00 mm
-介质 : 水乙二醇,热交换油酯类
-压力 : max. 15 bar
-应用案例 : 车载电子冷却,柜箱 , 激光冷却 , 雷达
NSA-Series
-在连接和断开过程中无滴漏
-阳极氧化铝材质
-轻量化设计
-可提供 直径 6.00 – 直径25 .00 mm .00 mm
-介质 : 水乙二醇,热交换油酯类去离子水
-压力 : max. 20 bar
-应用案例 : 数据中心,医疗影像车,车载电力冷却,机车引擎或变压器
200KL Cartridge

-六种尺寸的模块化快换(插装式)
-连接和断开过程中无滴漏
-材质: AISI 316L AISI 316L AISI 316L AISI 316L
-可提供 直径3.00直径3.00 – 直径4.00直径4.00 –直径6.00 直径6.00 直径6.00 直径6.00 直径6.00 直径6.00 直径6.00 直径6.00 直径6.00 直径6.00 直径6.00 直径9.00直径9.00 – 直径12.00直径12.00 –直径19.00mm直径19.00mm
-所有尺寸的快换可以组合成需的多通道连接
-压力:max. 15 bar
-介质:流体或气体

优点:
-极低的渗漏率和小死区容量
-轴向偏差的情况下,浮动承安装母头可以促进平衡
-适用于腐蚀介质或敏感环境如洁净室

应用:
-计算机冷却 ,半导体行业

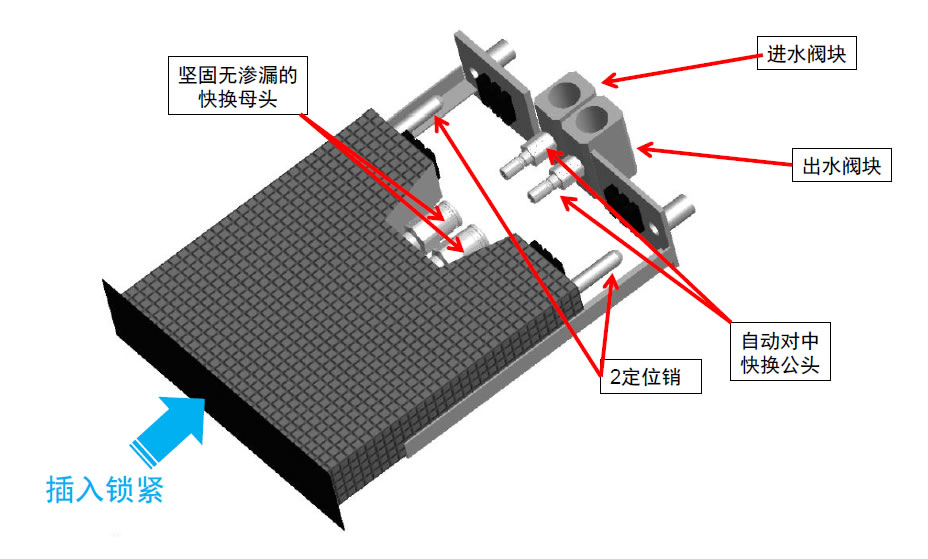

新产品:Rigid Non Spill
RNS-Series
可提供完整的连接系统



RNS系列

-插拔连接或断开
-连接和断开过程中无滴漏
-针对冷却系统设计
-公头自定位功能
-可提供 直径 6,00mm直径 6,00mm直径 6,00mm
-介质:冷却液
-压力:max. 60 bar
-无竞争产品







热管理接头Thermal Management Couplings



能源效率和紧凑型设计在热管理应用中起着重要作用。由于派克接头系统的低压降,因此在实现更佳性能的同时还考虑了节能问题。派克接头尺寸减小,可以在狭窄的空间中使用。平密封阀的设计可靠地防止了在联接和断开过程中的任何流体损失和空气夹杂,从而保护了敏感的电子设备和所有电气连接。对于配电盘,Parker开发了一种特殊的耦合系统(RNS系列),使耦合和锁定机架上的冷却回路变得更加容易。高强度的材料和表面光洁度使接头可以在高机械负载下使用。Energy efficiency and compact design play a major role in thermal management applications. As a result of the low pressure drop of Parker coupling systems, energy saving is taken into account at the same time as optimal performance. The reduced size of Parker couplings allows their use in the most confined spaces. The flat-sealing valve design reliably prevents any fluid loss and air inclusion during the coupling and uncoupling process, thereby protecting the sensitive electronics and all electrical connections. For switchboards, Parker developed a special coupling system (RNS series), which makes coupling and locking the cooling circuits on the racks considerably easier. Highly resistant materials and surface finishes equip the couplings for use under high mechanical loads.



- 数据中心液冷流体连接器

Quick Coupling made of Thermoplastic with ISO 7241-1 Series B Profile, Series 70
ISO 7241-1系列B型材,系列70由热塑性塑料制成的快速接头

Quick coupling with the world's most popular profile made of Thermoplastic, Series 21
快速与21系列热塑性塑料相结合

Dry Break Quick Coupling with Parker Profile, Series 204
Parker派克204系列干式快速接头

Quick Coupling made of Thermoplastic with Parker Profile, Series 48
Parker48系列热塑性塑料快速接头,系列48

Dry Break Quick Coupling with Parker Profile, Series 206
Parker派克206系列干式快速接头

Dry Break Quick Coupling with Parker Profile, Series 209
Parker派克206系列干式快速接头

Dry Break Quick Connect Coupling, Series NSE
NSE系列干式快速连接

Push-to-Connect Dry Break Quick Coupling, Series NSP
推入式连接干式快速接头,NSP系列

Dry Break Quick Coupling with Parker Profile for Block/Plate Assembly, Series 200KLEK
Parker派克 200KLEK系列,用于块/板组件的干断快速接头

Dry Break Quick Connect Coupling, Series NSI
干式快速连接接头,NSI系列

Push-Pull Dry Break Quick Connect Coupling, Series RNS
RNS系列推拉式干式快速接头

Quick Coupling for Fluid Handling Applications, Series 7000
7000系列用于流体处理应用的快速接头

Dry Break Quick Connect Coupling, Series NSA
NSA系列干式快速连接接头

无溢流、液体冷却快换接头 - NSG系列
Flat Face Hydraulic, Liquid Cooling Quick Connect Couplings - NSG Series

UQD系列无溢流、液体冷却通用快换接头
Flat Face Hydraulic, Liquid Cooling Universal Quick Disconnect Couplings - UQD Series



- 数据中心液冷软管

627 Hose Thermal cooling hose designed for the transfer of coolant
627 Hose Thermal cooling hose designed for the transfer of coolant parker
811 软管
481软管
285制冷剂软管
Parker 285 Air Conditioning Hose
H561系列软管
EZ-FORM软管
7395软管 E-Z FORM GS General Service Hose SAE J20R2-D1 Performance Series 7395

Series 7092 (Red) / 7093 (Black) GST II Hose

E-Z Form General Service, Multipurpose and High Temperature Hose
HPC Direct Liquid Cooling Products Take the heat off your operating system

Thermal Management Hoses Helping to control the temperature of your equipment
6722系列软管
